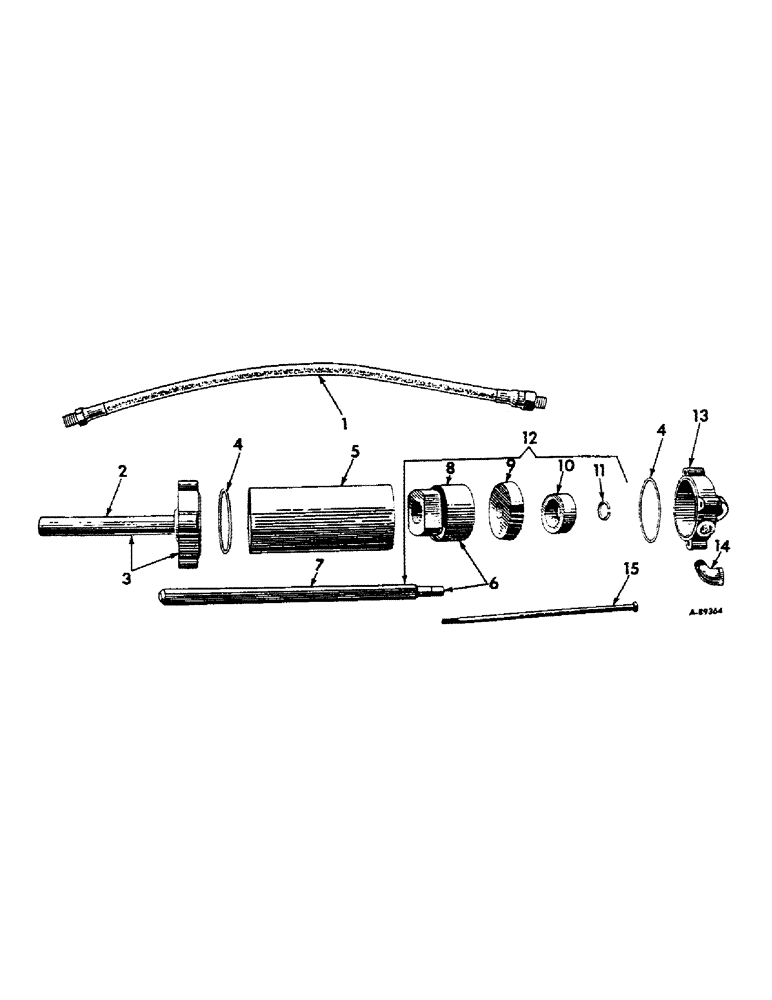

Запчасти Case IH 100 (A-17) - HYDRAULIC CYLINDER

15135EDX

CYLINDER ASSY, hydraulic, 2-1/4 x 8, consists of all unmarked parts and those marked unit A

1шт.

15246EAX

CYLINDER ASSY, hydraulic, 1-3/4 x 8, consists of all unmarked parts and those marked unit B

1шт.

1

366073R91

HOSE, hydraulic

1шт.

2

15095EA

GUIDE

piston rod

1шт.

3

HEAD ASSY, front cylinder, order cylinder assy (NSS)

1шт.

4

15100EA

O-RING

GASKET, cylinder head, unit A

1шт.

4

15247EA

SHIM

GASKET, cylinder head, 2 for unit B

1шт.

5

SLEEVE, cylinder, unit A, order cylinder assy, 15135EDX

1шт.

5

15248E

SLEEVE

cylinder, unit B

1шт.

6

PISTON AND ROD ASSY, hyd cyl, unit A, order cylinder assy, 1535EDX

1шт.

6

15380EX

PISTON & ROD ASSY, hyd cyl, unit B

1шт.

7

369447R1

ROD, piston, unit A

1шт.

7

ROD, piston, unit B, order piston & rod, 15380EX

1шт.

8

PISTON, unit A, order cylinder assy, 15135EDX

1шт.

8

PISTON, unit B, order piston & rod, 15380EX

1шт.

9

15750E

CUP

piston, unit A

1шт.

9

15253E

CUP

piston, unit B

1шт.

10

RETAINER, piston cup, order cylinder assy (NSS)

1шт.

11

15254E

RING

piston cup retainer snap

1шт.

12

ROD ASSY, piston, order cylinder assy (NSS)

1шт.

13

5036EA

HEAD, rear cylinder, unit A

1шт.

13

HEAD, rear cylinder, unit B, order cylinder assy, 15246EAX

1шт.

14

108686

ELBOW,90 Degree, 1/2" NPT Street

hyd hose 1/2 x 90 deg

1шт.

15

18075R1

BOLT, 3/8-16 x 13-1/4 hex-hd mach, 3 for unit B, 4 for unit A

1шт.

102635

NUT,3/8"-16, G5

1 per bolt 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.
