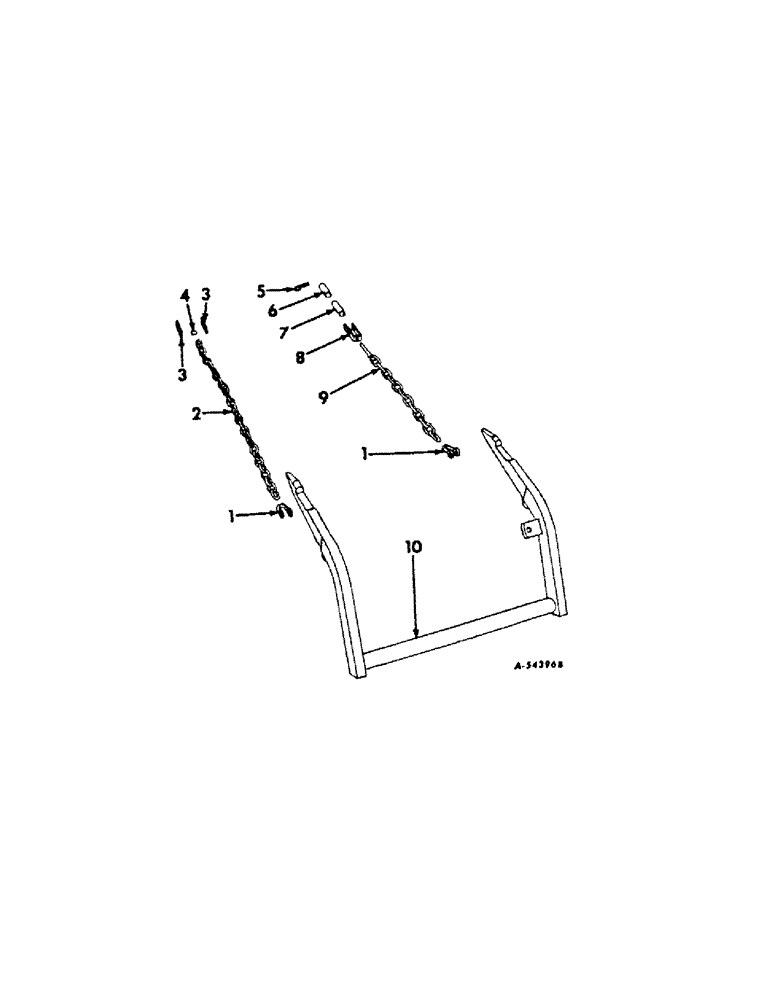

Запчасти Case IH 100 (A-15) - FAST-HITCH, DRAWBAR

1

455369R2

CLEVIS

lifting chain support

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 dld std-hd

1шт.

PG141

PIN

1/2 x 2 dld std-hd

1шт.

2

455724R91

CHAIN (AG)

CHAIN, lifting, 28 links of no. 7/0 straight link coil

1шт.

3

459044R1

BAR

STRAP, lifting chain

2шт.

4

459064R1

SPACER

lifting chain strap

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

W/NUT, 1/2 x 2-1/4 in. mach

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 dld std-hd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

5

520175R1

CLIP

PIN, quick attachable cot.

1шт.

6

459043R1

SPACER

SLEEVE, support stud

1шт.

7

459042R1

PIN

STUD, support

1шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

8

M22609

CLEVIS

support chain

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

PG141

PIN

1/2 x 2 dld std-hd

1шт.

9

459039R91

CHAIN (AG)

CHAIN, support, 12 links of straight high tensil coil

1шт.

105608

NUT

1/2 in., 13 sq

2шт.

10

458980R91

BAR

DRAWBAR, fast hitch

1шт.
