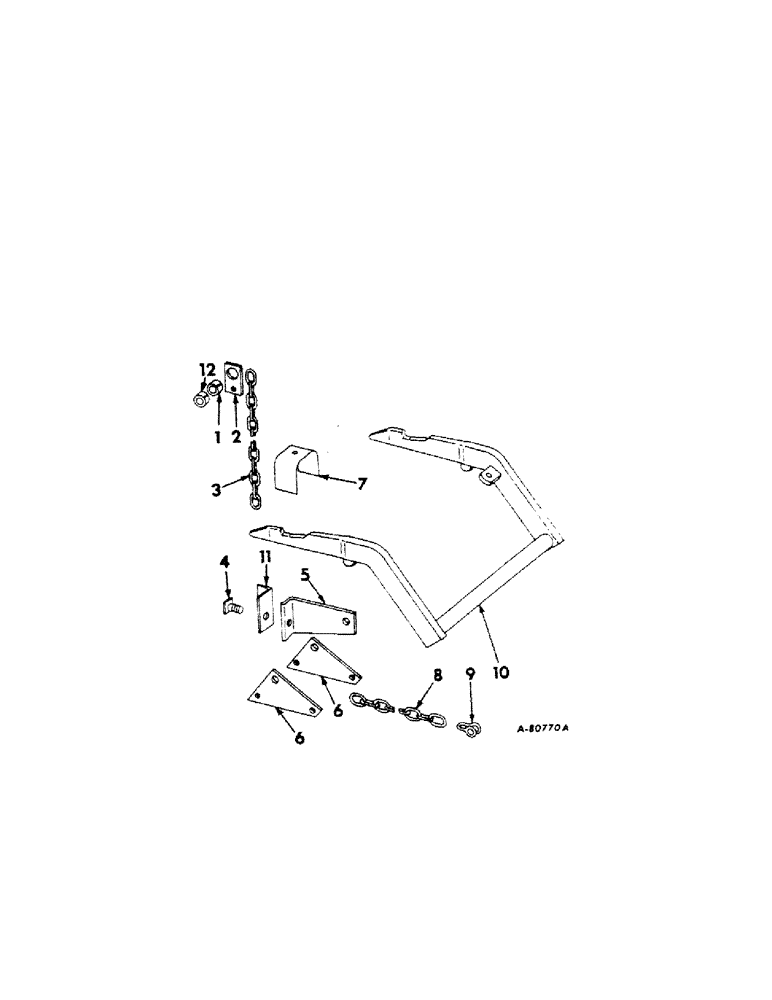

Запчасти Case IH 100 (A-15[A]) - FAST HITCH, DRAWBAR AND RELATED PARTS

1

479175R1

BUSHING

SLEEVE, rockshaft

1шт.

20529R1

PIN,7/32" x 1 1/2", Slotted

1шт.

Q3487

WASHER

1-17/32 x 2-1/4 x 11 ga

1шт.

2

479174R1

BLOCK, rockshaft lift

1шт.

3

479176R91

CHAIN, 23 links

1шт.

4

479170R91

BOLT

ASSY, gag

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

5

479169R11

BRACKET, gag

1шт.

6

479173R1

LEVER, bellcrank gag

2шт.

9845479

BOLT,Hex, 7/8" - 9 x 3", Gr 5

SCREW, 7/8 x 3 in. cap

1шт.

18549R1

NUT,7/8"-9, GB

7/8 in. esna elastic stop

1шт.

557270R1

WASHER

29/32 x 1-1/4 in. x 11 ga

5шт.

615196R1

WASHER

29/32 x 1-3/4 in. x 11 ga

1шт.

Q1299

HEADED PIN,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 in.

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

458983R1

SHIELD, rear knuckle drive

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 in. mach

1шт.

Q1505

WASHER

13/32 x 1 in. x 16 ga

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

459045R1

CHAIN (AG)

CHAIN, 21 links

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2 x 1-3/8 in. cap

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 in. esna elastic stop

1шт.

16038R1

WASHER

17/32 x 1 in. x 11 ga

1шт.

9

455369R2

CLEVIS

1шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 in. std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

458980R91

BAR

DRAWBAR ASSY

1шт.

11

481730R1

ANGLE, mounting bracket, unit A

1шт.

For application on the Farmall International 504 and International 606 series tractors w/two point fast-hitch without draft control.

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

12

481731R1

SPACER, rockshaft, unit A

1шт.

For application on the Farmall International 504 and International 606 series tractors w/two point fast-hitch without draft control.

1шт.
