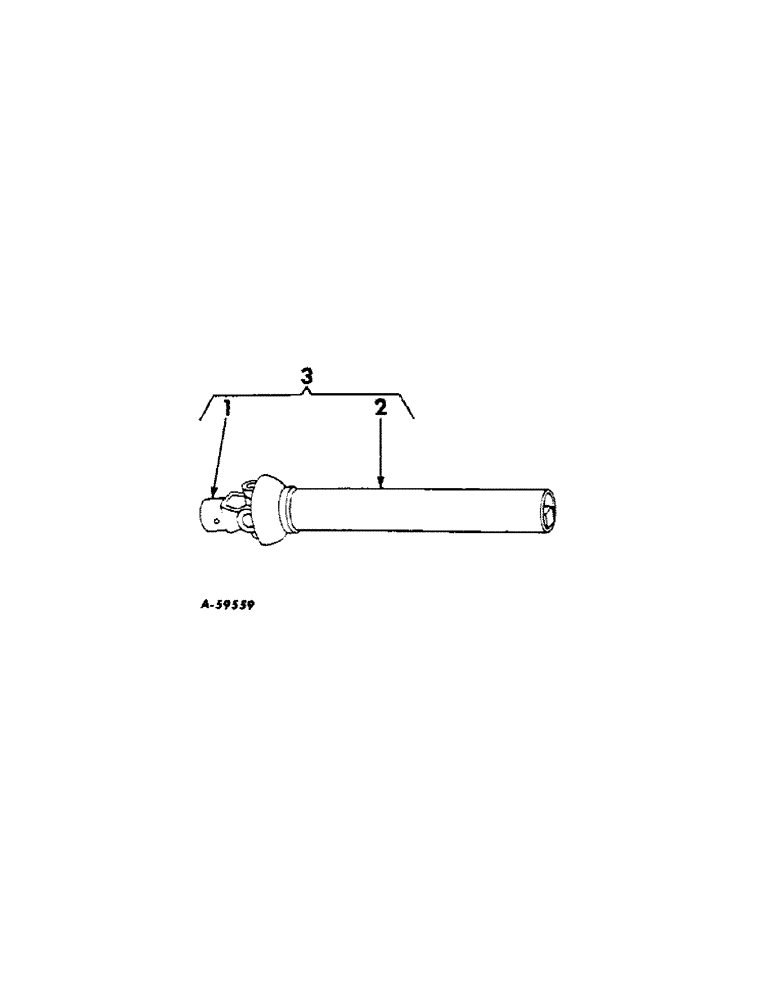

Запчасти Case IH 100 (A-13) - POWER DRIVE EQUIPMENT, ROCKWELL STANDARD, FAST-HITCH AND TRAILING HITCH FAST-HITCH, 1958, 1960

1

462477R1

YOKE

W/KEYWAY, implement end

1шт.

2

462476R91

YOKE W/SHAFT AND SHIELD ASSEMBLY

1шт.

3

459003R92

JOINT ASSEMBLY, rear half of double universal

1шт.

4

462475R91

YOKE W/TUBE AND SHIELD ASSEMBLY

1шт.

5

459002R92

JOINT ASSEMBLY, front half of double universal

1шт.

6

150635R92

SPIDER

CENTER CROSS ASSEMBLY

1шт.

7

462492R91

YOKE

ASSEMBLY, quick-detachable, 1-3/8 in. spline

1шт.

8

357426R1

RING

SNAP RING

4шт.

9

661678R91

BEARING

ASSEMBLY, needle

4шт.

10

CENTER CROSS, order 150635R92

1шт.

11

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in., 65 degree elbow lubrication

1шт.

12

357425R1

CORK SEAL

OIL SEAL, cork

4шт.

13

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock pin

1шт.

14

455346R21

PIN

W/SPRING AND X-WASHER, lock

1шт.

15

455347R1

VALVE SPRING

SPRING, lock pin

1шт.
