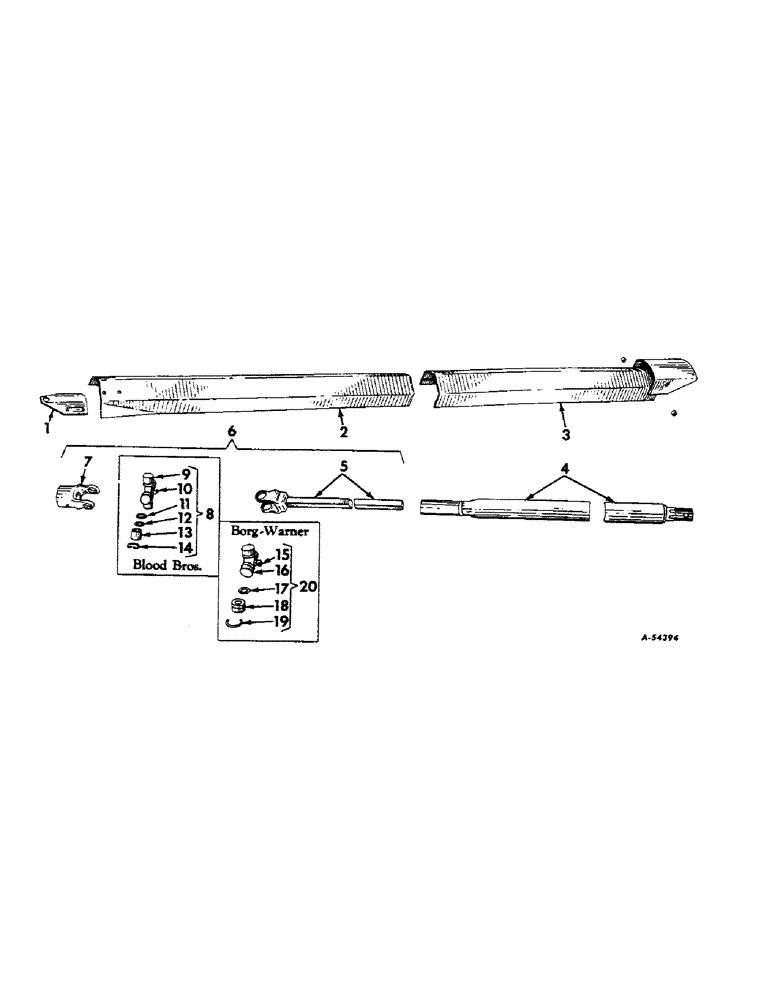

Запчасти Case IH 100 (A-12) - POWER DRIVE EQUIPMENT, TRAILING HITCH

1

457687R1

BRACKET, rear PTO shield

1шт.

2

457685R1

SHIELD, rear PTO shaft

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

458930R12

SHIELD, PTO shaft front

1шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 5/16 truss-hd (PN 135285)

4шт.

4

480763R91

SHAFT, tubular drive, Blood Bros.

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 in. straight lubrication

1шт.

5

457695R91

YOKE W/SHAFT, Blood Bros.

1шт.

5

457693R91

YOKE W/SHAFT, Borg Warner

1шт.

6

457694R91

JOINT W/SHAFT, rear single universal, Blood Bros.

1шт.

6

457692R91

JOINT W/SHAFT, rear single universal Borg Warner

1шт.

7

456665R1

YOKE W/KEYWAY, Blood Bros.

1шт.

7

456662R1

YOKE W/KEYWAY, Borg Warner

1шт.

8

454740R91

CROSS

CENTER CROSS ASSEMBLY

1шт.

9

450777R1

CROSS

CENTER CROSS, order 454740R91

1шт.

10

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

11

450778R1

WASHER

cork

4шт.

12

450779R1

RETAINER

cork

4шт.

13

450776R1

CAP

BUSHING, bearing

4шт.

14

454741R1

SNAP RING

4шт.

15

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lub.

1шт.

16

CENTER CROSS, order 656226R92

1шт.

17

M32994

WASHER, cork

4шт.

18

M32995

RETAINER

BEARING, roller

4шт.

19

M32991

SNAP RING

4шт.

20

656226R92

KIT

CENTER CROSS ASSEMBLY

1шт.
