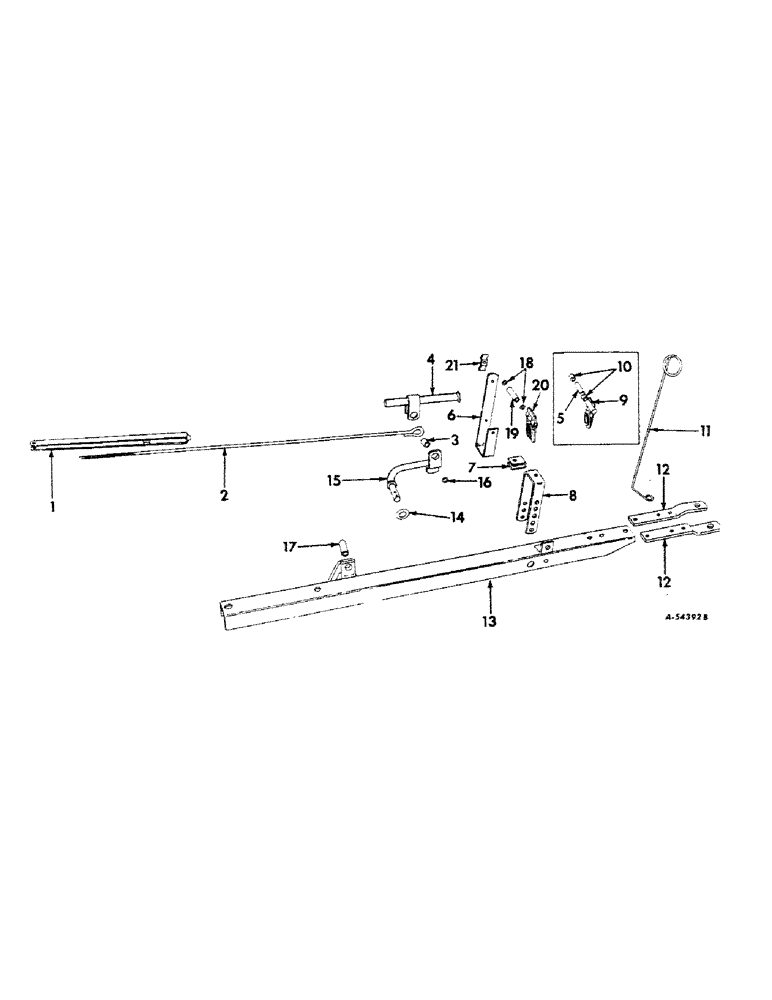

Запчасти Case IH 100 (A-11) - ONE AND TWO-WAY HYDRAULIC CYLINDER ATTACHING PARTS, TRAILING

1

458934R11

CONNECTION hydr, cyl, lifting rod

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

NA141

AXLE PIN,1/2" x 1 7/8"

PIN, 1/2 x 1-7/8 i. std-hd

1шт.

2

458935R1

ROD, hydr. cyl. lifting

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

3

623907R1

SPACER,1" Pipe x 5/8"

for one-way

1шт.

4

457667R11

PIPE, push, for one-way

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

457696R1

PIN

1 x 2-7/16 in. std-hd

1шт.

5

460370R1

SPACER, pedestal brg, 1958-1960

1шт.

6

470912R1

SUPPORT, upper drive brg, 1962 and since

1шт.

6

463581R1

SUPPORT, upper drive brg, 1960-1962

1шт.

6

458927R1

SUPPORT, upper drive brg, 1958-1960

1шт.

17882R1

BOLT W/NUT, 1/2 x 6 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

458929R1

CLIP

drive brg support

1шт.

15075R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 2

BOLT W/NUT, 5/8 x 2 in. crg.

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

458928R1

SUPPORT, lower drive bearing

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4 in. mach

1шт.

17748R1

BOLT

W/NUT, 1/2 x 4-1/4 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

460369R91

BEARING, PTO shaft pedestal, 1958, 1960, order ST669, 463580R1, 463581R1, and PO10535

1шт.

10

460371R1

WASHER

SPACER, pedestal brg., 1958, 1960

2шт.

11

464962R1

SUPPORT

hydr hose

1шт.

17815R1

BOLT, 5/8 x 5 in. mach

1шт.

10620P

WASHER

21/32 x 1-1/2 in. x 16 ga

1шт.

12

462191R1

STRAP

tongue hitch, 1960 and since

2шт.

17525R1

BOLT

W/NUT, 5/8 x 2 in. mach

1шт.

17552R1

BOLT W/NUT, 5/8 x 2-1/4 in. mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

12

460366R1

STRAP, tongue hitch, 1958, 1960

2шт.

17525R1

BOLT

W/NUT, 1/2 x 2 in. mach

1шт.

BOLT W/NUT, 1/2 x 2-1/2 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

WASHER, 17/32 x 1-1/2 in. x 16 ga, use on 1/2 x 2-1/2 in. bolt

1шт.

13

458921R21

TONGUE

1шт.

17550R1

BOLT,Hex, 1/2"-13 x 2 1/4", G2

W/NUT, 1/2 x 2-1/4 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 in. x 11 ga

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in., 45 degree elbow lubrication

1шт.

14

615227R1

WASHER

1-1/32 x 1-3/4 in. x 11 ga

1шт.

15

458931R21

ARM, hydr, cyl. lift

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

16

Q5099

WASHER

25/32 x 1-3/4 in. x 11 ga

1шт.

17

456656R1

BUSHING, cylinder anchor, for one-way

1шт.

18

PO10535

WASHER

17/32 x 1-1/4 in. x 11 ga, 1960 and since

2шт.

19

463580R1

SPACER,1/2" Pipe x 4.109"

pedestal brg, 1960 and since

1шт.

20

ST669

BEARING ASSY,35mm ID

BEARING, PTO shaft bedestal, 1960 and since

1шт.

21

515030R1

CLAMP

hose, 1 used for mower, 2 used for hay conditioner, 1962 and since

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 in. C-Z crg., for hay conditioner

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 in. C-Z crg, for mower

1шт.

458491R1

NUT, 3/8 in. C-Z lock

1шт.
