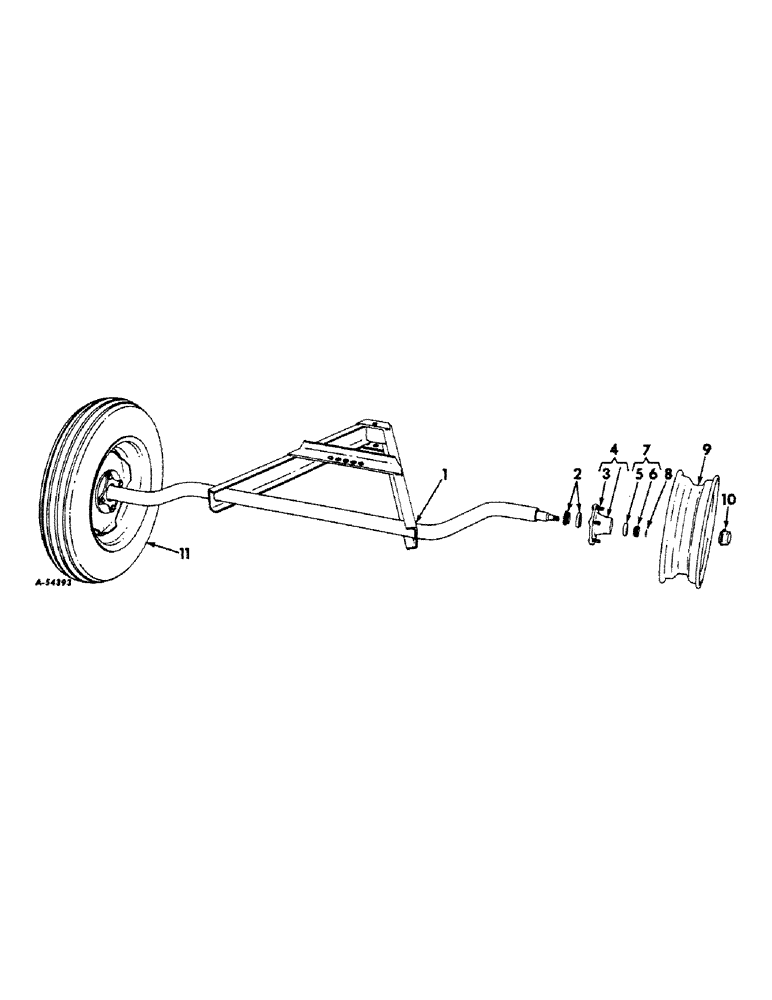

Запчасти Case IH 100 (A-10) - AXLE W/FRAME, HUB AND WHEELS TRAILING HITCH

1

467195R92

AXLE

W/FRAME, 1962 and since

1шт.

1

458984R12

AXLE

W/FRAME, 1958-1961

1шт.

.

17476R1

BOLT W/NUT, 3/4 x 1-1/2 mach.

1шт.

.

17816R1

BOLT,Hex, 3/4" - 10 x 5", Gr 2

W/NUT, 3/4 x 5 mach

1шт.

.

63442D

NUT, 3/4UNF slotted jam (62)

2шт.

.

102649

SLOTTED NUT,5/8"-18, G5

NUT, (58, 61) 5/8"-18, G5

2шт.

.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , 1962 and since 1/8" x 1 1/4"

2шт.

.

PIN, 3/16 x 1-1/4 cotter, 1958-1961

2шт.

.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

.

23471S

WASHER

25/32 x 1-1/2 in. x 7 ga, use on 3/4 x 5 bolt

2шт.

2

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL AND CUP, roller cone

2шт.

3

453769R21

BOLT

W/NUT, wheel hub, 1958-1965

8шт.

.

453770R1

WHEEL NUT

wheel hub bolt

8шт.

4

465492R2

HUB

wheel, 1962 and since

2шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2 x 15/16 in. C-Z conical hd

8шт.

4

460368R11

HUB W/CUPS, bolts and nuts, wheel, 1958-1961

2шт.

5

651814R1

BEARING CUP

BEARING, roller cup

2шт.

6

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, roller cone

2шт.

6

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

CONE W/CUP, roller brg, order 651814R1 and 651815R91

2шт.

8

575813R1

WASHER

25/32 x 1-1/4 x 11 ga, 1962 and since

2шт.

8

WASHER, 5/8 x 1-3/8 x 12 ga, 1958-1961

2шт.

9

463036R1

WHEEL (STEERING)

WHEEL, disc, 14 in.

2шт.

9

455169R92

WHEEL

disc, 15 in.

2шт.

10

651194R1

CAP

wheel hub

2шт.

11

TIRE, rib implement pneumatic, 5.90-15 4 ply type 11

2шт.

11

TIRE, pneumatic, 7.50 x 14 in.

2шт.

11

TIRE, pneumatic, 8.00 x 14 in.

2шт.

11

TUBE, pneumatic tire, 5.90-15 w/tr-15 cw valve

2шт.

11

TUBE, pneumatic, 7.50 x 14 in.

2шт.

11

TUBE, pneumatic, 8.00 x 14 in.

2шт.
