Запчасти Case IH RR90 (052) - DECALS -90" MOWER

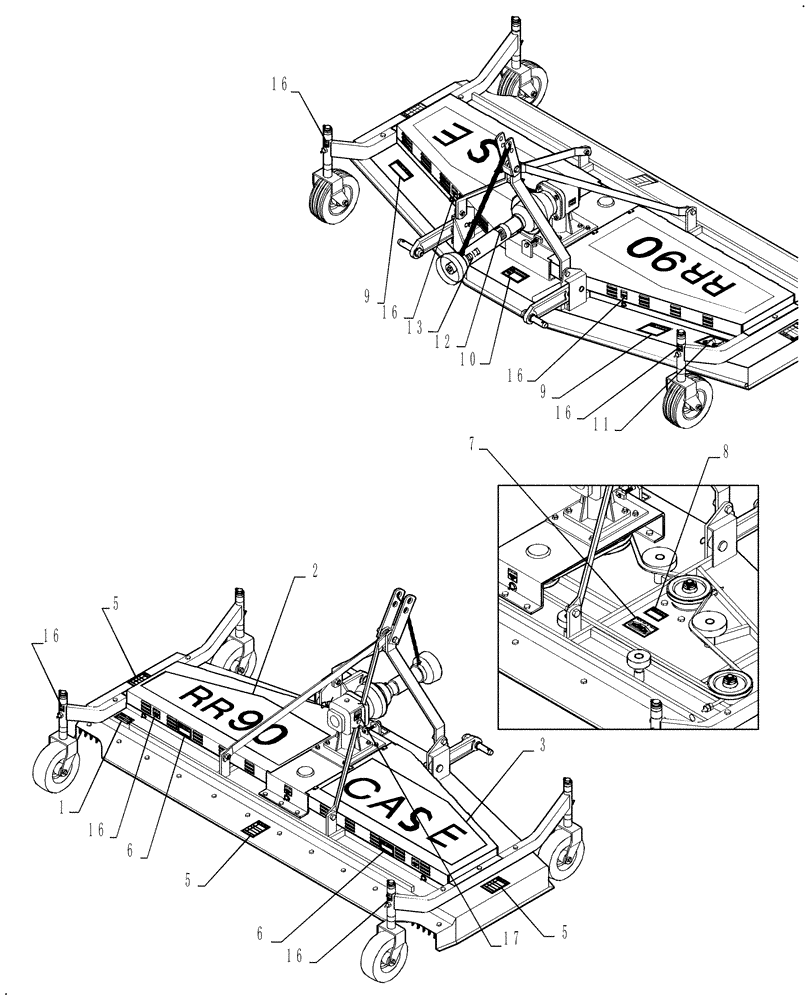

Схема запчастей Case IH RR90 - (052) - DECALS -90" MOWER
16
3
10
16
7
16
16
5
13
16
1
5
9
2
16
16
6
5
8
17
12
9
11
6

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Serial Number Plate

1шт.

2

CSE001435

DECAL

RR90

1шт.

3

CSE001436

DECAL

CASE

1шт.

5

SIT001404

DECAL

DANGER STAND CLEAR

3шт.

6

SIT001405

DECAL

WARNING, Mowing......

2шт.

7

SIT001423

DECAL

Belt Route...."For 90" Mowers"

1шт.

8

SIT001407

DECAL

WARNING SHIELD.....

2шт.

9

SIT001408

DECAL

WARNING Before operating.....

2шт.

10

SIT001409

DECAL

WARNING DO NOT Operate PTO....

1шт.

11

SIT001410

DECAL

CUTTING HEIGHT ADJUSTMENT

1шт.

12

SIT001411

DECAL

DANGER ROTATING DRIVELINE

1шт.

13

SIT001316

DECAL

DANGER SHIELD MISSING.....

1шт.

16

SIT001075

DECAL

GREASE POINT

7шт.

17

SIT001074

DECAL

OIL LEVEL POINT

1шт.

Выбрано товаров: 14
