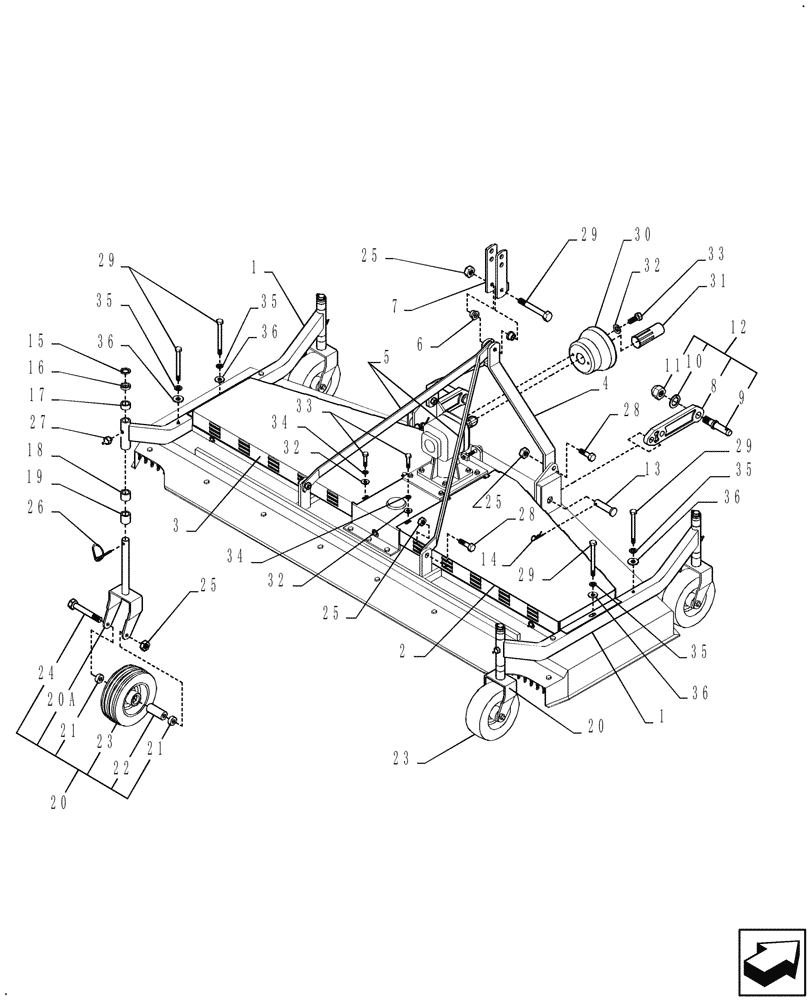

Запчасти Case IH RR90 (014) - WHEEL SUPPORT, BELT COVER & 3 POINT HITCH FOR 90" MOWER

1

CSE110070

SUPPORTING ARM

1шт.

2

CSE100136

PROTECTIVE COVER

Belt, RH

1шт.

3

CSE100137

PROTECTIVE COVER

Belt, LH

1шт.

4

CSE100038

3 POINT HITCH

1шт.

5

CSE100037

TIE-ROD

2шт.

6

SIT100062

SPACER

2шт.

7

CSE100041

HITCH

1шт.

8

CSE100039

SUPPORT

Pin

2шт.

9

SIT105091

PIN

2шт.

10

86509829

LOCK WASHER,24.5mm ID x 40mm OD x 5mm Thk

2шт.

11

SIT600249

NUT

2шт.

12

SIT100010

PIN

Complete

2шт.

13

SIT100040

PIN

2шт.

14

PL

PROCURE LOCALLY

Pin, Split 4mm OD x 30mm L

2шт.

15

SIT100141

SHIM,2mm Thk

4шт.

16

SIT100142

SHIM

6mm Thk

4шт.

17

SIT100143

SHIM

12mm Thk

4шт.

18

SIT100144

SHIM

25mm Thk

4шт.

19

SIT100145

SHIM

32mm Thk

4шт.

20

CSE110193

SUPPORT

Incl 21 - 25

4шт.

20a

CSE100147

SUPPORT

Red, 8" L, Years: -31-DEC-09

4шт.

20a

SIT110417

SUPPORT

Red, 9" L, Start Year: 01-JAN-10

4шт.

21

SIT100006

SHIM

8шт.

22

SIT100008

SPACER

4шт.

23

SIT620817

WHEEL

4шт.

24

SIT600156

SCREW

M12 x 110mm L

4шт.

25

100038

NUT,M12 x 1.75, Cl 8

9шт.

26

SIT600116

LINCH PIN

4шт.

27

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

28

SIT600616

SCREW

M12 x 35mm L

4шт.

29

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

7шт.

30

87354171

GUARD

1шт.

31

SIT600172

PROTECTION

1шт.

32

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

33

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

8шт.

34

SIT600100

SPRING WASHER

6шт.

35

SIT600634

SPRING WASHER

6шт.

36

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

6шт.
