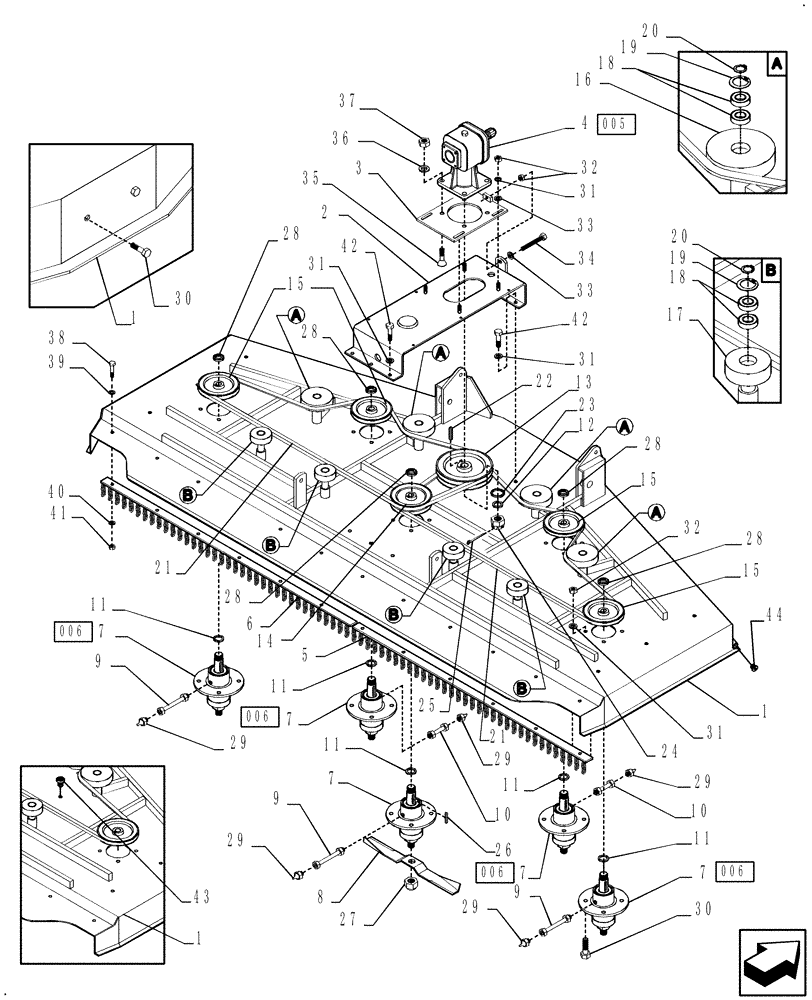

Запчасти Case IH RR90 (003) - MAIN DECK 90" MOWER

1

CSE110281

MOWER DECK

1шт.

2

CSE110135

Gearbox

1шт.

3

CSE100126

BRACKET

Gearbox Support

1шт.

4

CSE110321

GEARBOX

1шт.

5

CSE110066

SHIELD

Discharge, RH

1шт.

6

CSE110067

SHIELD

Discharge, LH

1шт.

7

SIT110299

SPINDLE

5шт.

8

SIT100065

BLADE

Standard Lift

5шт.

9

SIT100148

TUBE

Line

3шт.

10

SIT100125

TUBE

Line

2шт.

11

SIT100050

SHIM

5шт.

12

SIT100042

SHIM,2mm Thk

2mm

1шт.

13

SIT100138

PULLEY

1шт.

14

SIT100139

PULLEY

1шт.

15

SIT100140

PULLEY

4шт.

16

SIT100132

TIGHTENER

Belt

4шт.

17

SIT100133

TIGHTENER

Belt

4шт.

18

SIT600872

BEARING ASSY

16шт.

19

SIT600885

SNAP RING

8шт.

20

SIT600600

SNAP RING

8шт.

21

SIT620647

BELT

2шт.

22

SIT600181

WOODRUFF KEY

B10x8x40

1шт.

23

SIT600335

WASHER

1шт.

24

SIT600296

NUT

M24x2

1шт.

25

SIT600347

SPLIT PIN

5x50

1шт.

26

SIT600123

WOODRUFF KEY

B8x7x35

5шт.

27

SIT600746

NUT

Spindle Blade M18x1.5

5шт.

28

SIT600122

LOCK NUT

Ring, M25x1.5

5шт.

29

62161

LUBE NIPPLE,M8 x 1.25, Str

5шт.

30

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

22шт.

31

SIT600102

SPRING WASHER

10.5

30шт.

32

100016

NUT,M10 x 1.5, Cl 8

25шт.

33

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

5шт.

34

SIT600160

SCREW

M10x80

1шт.

35

SIT600158

SCREW

M14x40

4шт.

36

SIT600104

SPRING WASHER

M14

4шт.

37

412370

NUT,M14 x 2, Cl 8

4шт.

38

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

12шт.

39

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

12шт.

40

SIT600100

SPRING WASHER

M8

12шт.

41

SIT600037

NUT

M8

12шт.

42

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

43

SIT620816

PLUG

7шт.

44

SIT600855

PLUG

2шт.
