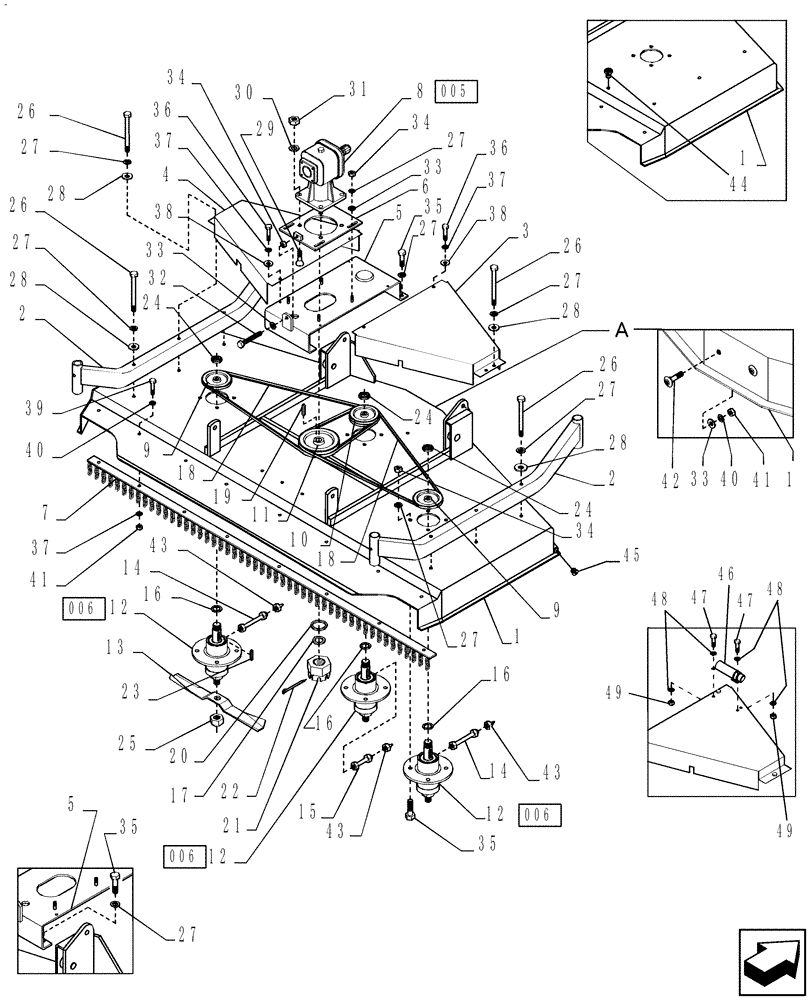

Запчасти Case IH RR72 (002) - MAIN DECK 72" MOWER

1

CSE110221

MOWER DECK

1шт.

2

CSE100699

SUPPORTING ARM

Complete Axle, 72"

1шт.

3

CSE100572

PROTECTIVE COVER

Belt, RH

1шт.

4

CSE100573

PROTECTIVE COVER

Belt, LH

1шт.

5

CSE100131

SUPPORT

Gearbox

1шт.

6

CSE100021

BRACKET, SUPPORTING

Gearbox

1шт.

7

SIT110065

SHIELD

Discharge

1шт.

8

CSE110321

GEARBOX

1шт.

9

SIT100058

PULLEY

2шт.

10

SIT100057

PULLEY

1шт.

11

SIT100055

PULLEY

1шт.

12

SIT110299

SPINDLE

3шт.

13

SIT100066

BLADE

Standard Lift

3шт.

14

SIT100125

TUBE

Line

2шт.

15

SIT100577

TUBE

Line

1шт.

16

SIT100050

SHIM

3шт.

17

SIT100042

SHIM,2mm Thk

2mm

1шт.

18

SIT600140

BELT

2шт.

19

SIT600181

WOODRUFF KEY

B10x8x40

1шт.

20

SIT600335

WASHER

1шт.

21

SIT600296

NUT

M24x2

1шт.

22

SIT600347

SPLIT PIN

5x50

1шт.

23

SIT600123

WOODRUFF KEY

B8x7x35

3шт.

24

SIT600122

LOCK NUT

Ring, M25x1.5

3шт.

25

SIT600746

NUT

Spindle Blade M18x1.5

3шт.

26

SIT600162

SCREW

M10x80

6шт.

27

SIT600102

SPRING WASHER

10.5

28шт.

28

SIT620250

WASHER

11-30x2.5

6шт.

29

SIT600158

SCREW

M14x40

4шт.

30

SIT600104

SPRING WASHER

M14

4шт.

31

412370

NUT,M14 x 2, Cl 8

4шт.

32

SIT600160

SCREW

M10x80

1шт.

33

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

7шт.

34

100016

NUT,M10 x 1.5, Cl 8

17шт.

35

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

18шт.

36

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

37

SIT600100

SPRING WASHER

M8

13шт.

38

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

39

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

9шт.

40

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

11шт.

41

SIT600037

NUT

M8

11шт.

42

SIT610661

SCREW

M8x20

2шт.

43

62161

LUBE NIPPLE,M8 x 1.25, Str

3шт.

44

SIT620816

PLUG

5шт.

45

SIT600855

PLUG

2шт.

46

SML49722

HOLDER

1шт.

ON & ASN Y9WTB4018-RR72

1шт.

47

PL

PROCURE LOCALLY

SCREW, M6X20

3шт.

48

PL

PROCURE LOCALLY

WASHER, M6

6шт.

49

353308

NUT,M6 x 1.0, Cl 8

3шт.
