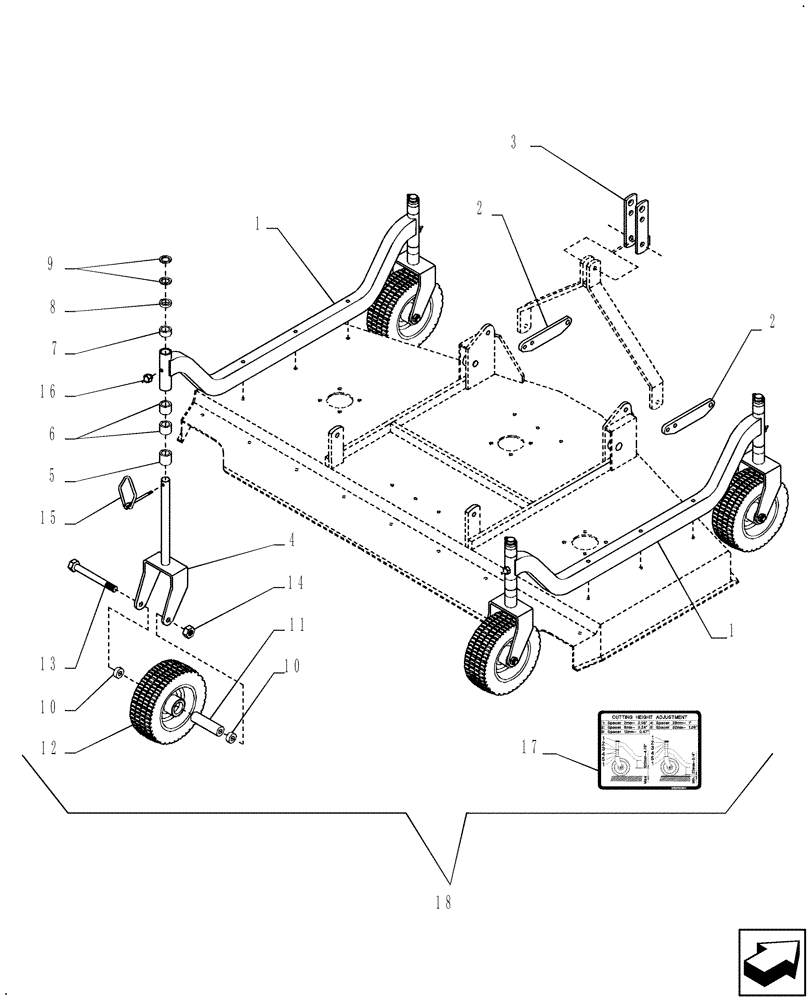

Запчасти Case IH RR72 (036) - PNEUMATIC TIRE KIT FOR 72" MOWER

1

CSE100931

SUPPORTING ARM

2шт.

2

CSE100297

PIN

Support

2шт.

3

CSE100298

HITCH

1шт.

4

SIT100291

SUPPORT

Wheel Fork

4шт.

5

SIT100145

SHIM

32mm-1.26"

4шт.

6

SIT100144

SHIM

25mm-1"

8шт.

7

SIT100143

SHIM

12mm-0.47"

4шт.

8

SIT100142

SHIM

6mm-0.24"

4шт.

9

SIT100141

SHIM,2mm Thk

2mm-0.08"

8шт.

10

SIT100339

SHIM

8шт.

11

SIT100338

SPACER

4шт.

12

CSE610434

WHEEL ASSY

11x4.00-5 (Gray Rim)

4шт.

13

SIT610271

SCREW

M12x150

4шт.

14

100038

NUT,M12 x 1.75, Cl 8

4шт.

15

SIT610466

LINCH PIN

4шт.

16

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

17

SIT001458

DECAL

Height of Cut

1шт.

18

CSE100934

SERVICE KIT

Pneumatic Tire Includes: Ref. 1-17

1шт.
