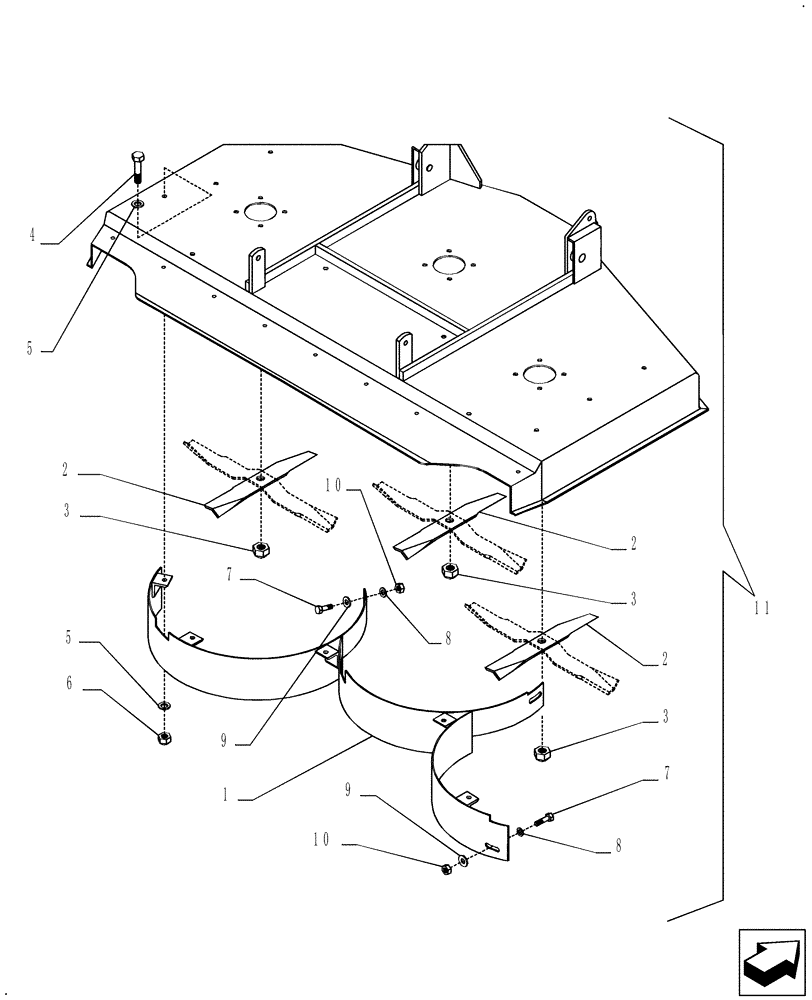

Запчасти Case IH RR60 (040) - MULCH KIT - 60" MOWER

1

SIT110324

CONVEYOR

1шт.

2

SIT100358

CUTTING BLADE

13.78" (350mm)

3шт.

3

SIT610701

NUT

M18x1.5

3шт.

4

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

5шт.

5

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

10шт.

6

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

3шт.

9

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

11

SIT110283

SERVICE KIT

Mulch Includes: Ref. 1-10

1шт.
