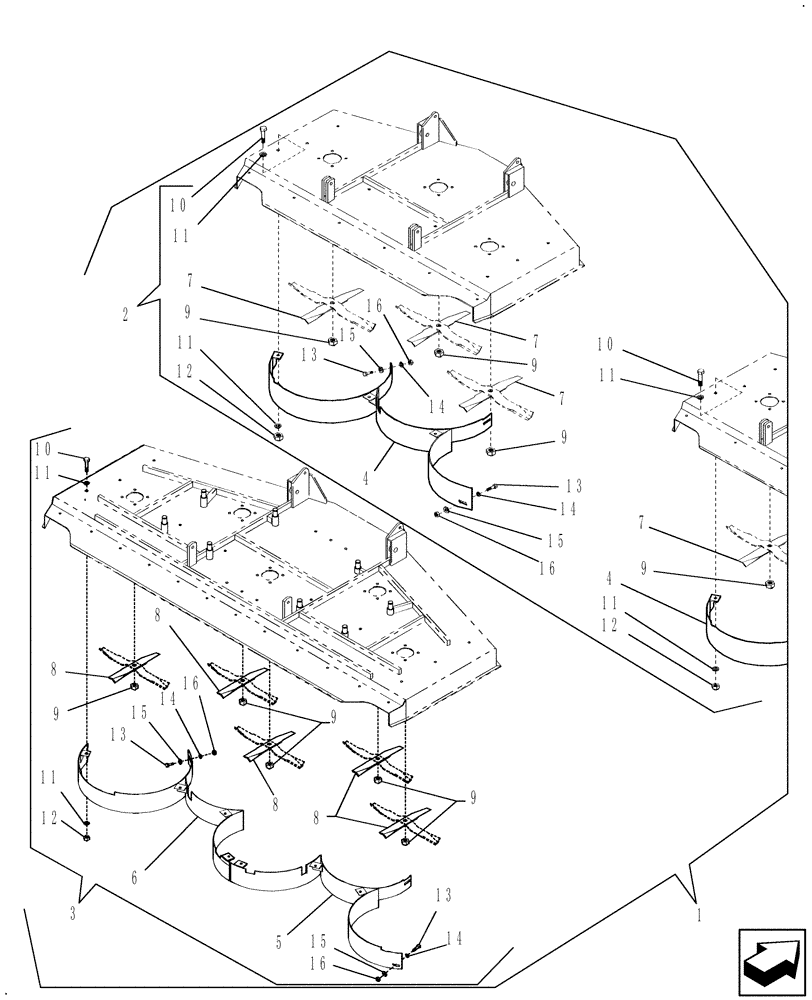

Запчасти Case IH RR204 (052) - MULCH KIT

1

CSE110288

SERVICE KIT

Mulch Includes: Ref. 2-15

1шт.

2

SIT110284

SERVICE KIT

Mulch 72" Includes: Ref. 4,7,9-16

2шт.

3

SIT110285

SERVICE KIT

Mulch 90" Includes: Ref. 5,6,8-16

1шт.

4

CSE110325

CONVEYOR

72" Mower

1шт.

5

CSE110326

CONVEYOR

RH 90" Mower

1шт.

6

CSE110327

CONVEYOR

LH 90" Mower

1шт.

7

SIT100359

CUTTING BLADE

16.54" (420mm)

6шт.

8

SIT100358

CUTTING BLADE

13.78" (350mm)

5шт.

9

SIT610701

NUT

M18x1.5

11шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

17шт.

11

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

34шт.

12

100037

LOCK NUT,M10 x 1.5, Cl 8

17шт.

13

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

14

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

9шт.

15

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

9шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

9шт.
