Запчасти Case IH RR180 (061) - DECALS

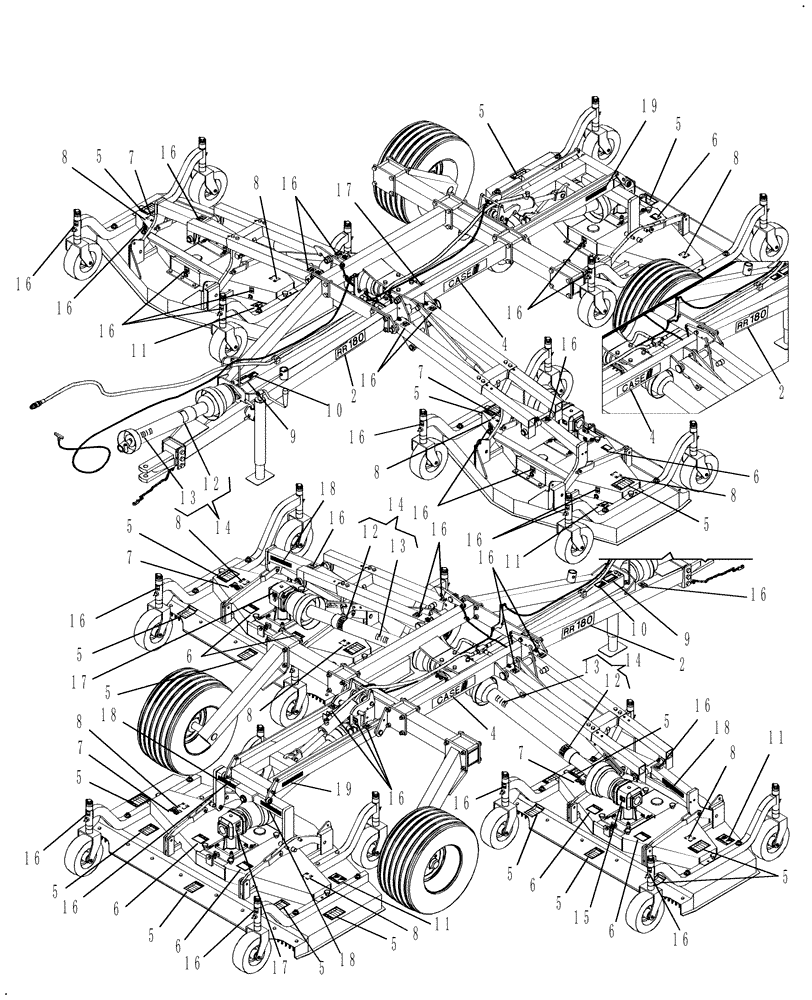

Схема запчастей Case IH RR180 - (061) - DECALS
12
8
16
18
16
16
5
6
11
18
13
14
19
9
5
16
16
12
16
5
16
5
11
16
16
8
16
8
17
5
8
5
16
16
5
5
7
16
12
2
7
16
18
5
19
16
16
16
16
8
14
5
7
10
6
2
11
16
5
7
5
8
5
18
16
16
6
8
4
4
5
13
10
6
8
11
15
5
8
6
13
7
4
17
14
16
2
17
5
5
6
8
6
16
9

Артикул

Название

Примечание

Количество

2

SIT001445

RR180

2шт.

4

SIT001430

Case CIH

2шт.

5

SIT001404

DECAL

Danger Stand Clear

15шт.

6

SIT001405

DECAL

Warning Moving Parts

6шт.

7

SIT001406

DECAL

Belt Routing 60" & 72" Mowers

3шт.

8

SIT001407

DECAL

Warning Shield.......

6шт.

9

SIT001408

DECAL

Warning Before Operating....

1шт.

10

SIT001409

DECAL

Warning Do Not Operate PTO......

1шт.

11

SIT001459

DECAL

Cutting Height Adjustment

3шт.

12

SIT001411

DECAL

Danger Rotating Driveline

4шт.

13

SIT001316

DECAL

Danger Shield Missing.....

4шт.

14

SIT001413

DECAL

Set Label For Driveline

4шт.

16

SIT001075

DECAL

Grease Point

32шт.

17

SIT001074

DECAL

Oil Level Point

4шт.

18

SIT001248

DECAL

Red Reflective

4шт.

19

SIT001249

DECAL

Yellow Reflective

2шт.

Выбрано товаров: 16
