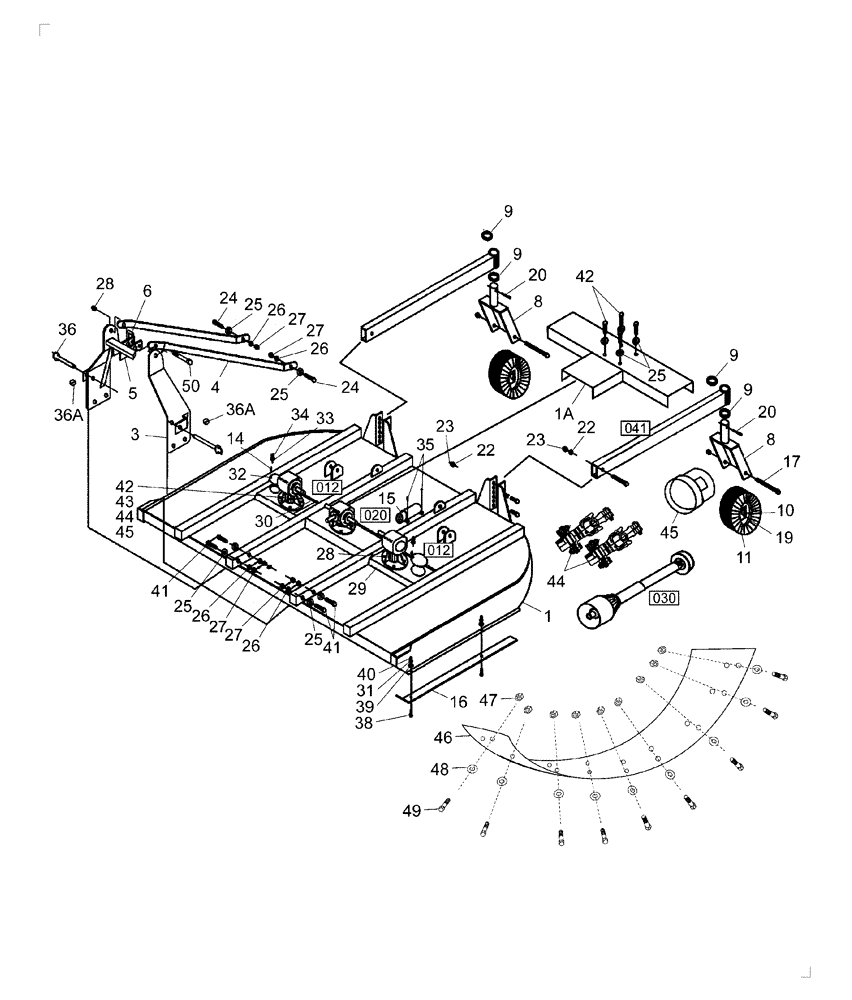

Запчасти Case IH RC960 (003) - MAIN ASSEMBLY

1

CSE101D1001

HOUSING

Deck

1шт.

1a

MAG115D070025

SHIELD

1шт.

2

MAG401D0171D01

GEARBOX

2шт.

2a

MAG900D07010102

GEARBOX

Transfer

1шт.

3

MAG101D1023L

FRAME

1шт.

3a

MAG101D1023R

FRAME

1шт.

4

MAG101D1024

ARM

Stiff

2шт.

5

MAG101D1002

SWIVEL HITCH HEAD TR

1шт.

6

MAG101D1022

BOLT

Swivel Bushing

1шт.

7

MAG116D1030

ARM

2шт.

8

MAG116D6487D01

FORK

2шт.

9

MAG101D7552

SPACER

4шт.

10

MAG401D3581D00

HUB

2шт.

11

MAG103D209

WHEEL

2шт.

12

PL

PROCURE LOCALLY

Bolt, 5/8"x1-1/2" GR8

4шт.

13

MAG401D0312D03

PTO

W/Slip Clutch

1шт.

14

PL

PROCURE LOCALLY

1/2"x1-1/2" GR5

2шт.

15

MAG412D9099

RIGID TUBE

1шт.

16

MAG108D6068

SKID/SHOE

Bolt On

2шт.

17

PL

PROCURE LOCALLY

Axle Bolt, 5/8"x7-1/2" GR5

2шт.

18

PL

PROCURE LOCALLY

Nylock Nut, 5/8"

2шт.

19

PL

PROCURE LOCALLY

Flat Washer, 5/8"

4шт.

20

PL

PROCURE LOCALLY

Cotter Pin, 3/8x3-1/2"

2шт.

21

PL

PROCURE LOCALLY

Bolt, 5/8"x4" GR5

6шт.

22

PL

PROCURE LOCALLY

Lock Washer, 5/8"

6шт.

23

PL

PROCURE LOCALLY

Hex Nut, 5/8"

6шт.

24

PL

PROCURE LOCALLY

Bolt, 3/4"x2" GR5

2шт.

25

PL

PROCURE LOCALLY

Flat Washer, 3/4"

10шт.

26

PL

PROCURE LOCALLY

Lock Washer, 3/4"

2шт.

27

PL

PROCURE LOCALLY

Hex Nut, 3/4"

2шт.

28

PL

PROCURE LOCALLY

Nylock Nut, 3/4"

13шт.

29

PL

PROCURE LOCALLY

Bolt, 3/4"x2-1/2" GR5

8шт.

30

PL

PROCURE LOCALLY

Nylock Nut, 5/16"

4шт.

31

PL

PROCURE LOCALLY

Flat Washer, 3/8"

4шт.

32

MAG116D1655

COVER PLATE

2шт.

33

PL

PROCURE LOCALLY

Lock Washer, 1/2"

2шт.

34

MAG412D0058

NUT

Hex, 1/2"

2шт.

35

MAG412D31823

SELF-TAP SCREW

1/4"x1"

2шт.

36

MAG412D7702

PIN

Pull

2шт.

36a

MAG412D5115

PIN

2шт.

37

PL

PROCURE LOCALLY

3/4"x8" GR5

1шт.

38

MAG412D03229

PLOW BOLT

3/8"x1-1/12" GR5

4шт.

39

MAG412D0072D01

WASHER

1/2"

4шт.

40

PL

PROCURE LOCALLY

Nylock Nut, 3/8"

4шт.

41

PL

PROCURE LOCALLY

Bolt, 3/4"x5" GR5

4шт.

42

PL

PROCURE LOCALLY

Bolt, 5/8"x1-3/4" GR5

4шт.

43

PL

PROCURE LOCALLY

Bolt, 5/16"x3" GR8

4шт.

44

MAG401D0322

PTO SHAFT

PTO Shock

2шт.

45

MAG900D0003

SHIELD

Cone

1шт.

46

MAG104D1907

GUARD

Rear Rubber Safety

1шт.

47

MAG412D0058

NUT

Hex, 1/2"

11шт.

48

MAG412D0072D01

WASHER

Flat, 1/2"

11шт.

49

MAG412D7250

BOLT

1/2"x1"

11шт.
