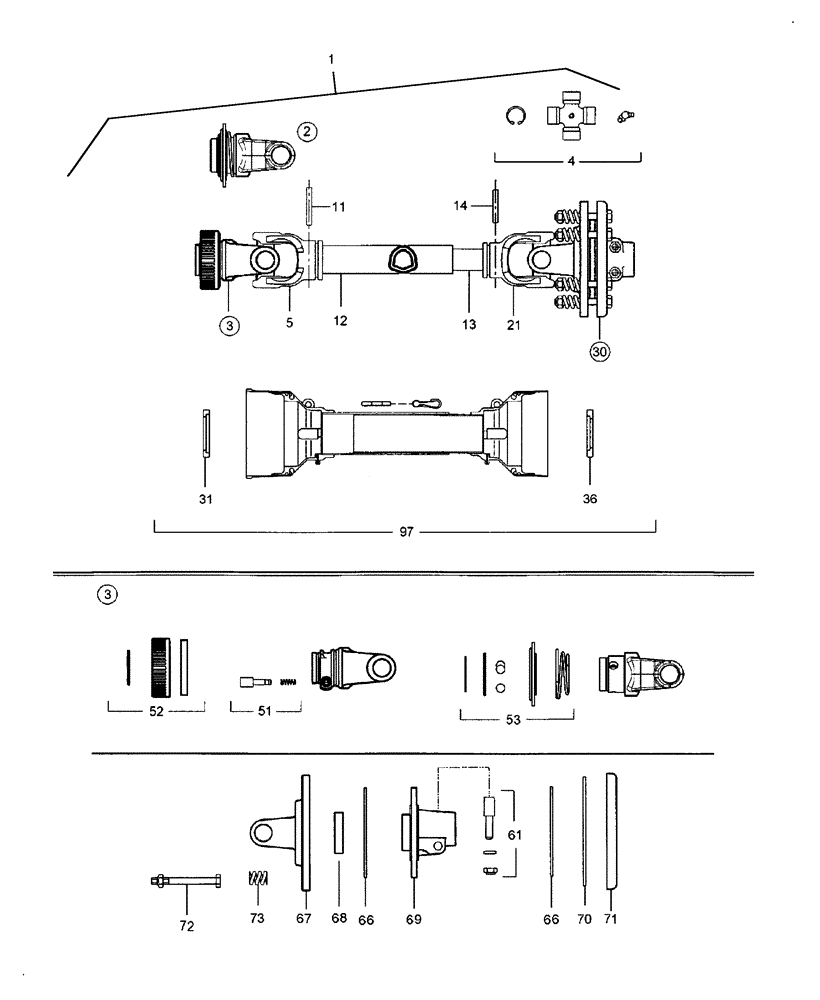

Запчасти Case IH RC840 (003.01) - DRIVELINE

1

MAG401D0317D01

PTO

Driveline

1шт.

2

MAG501D1101

YOKE

#6/s7 1-3/8" z6 ball

1шт.

3

MAG343D1137

YOKE

#6/s7 1-3/8" z6 twist collar

1шт.

4

MAG343D1212

KIT

Cross Journal

2шт.

5

MAG343D1706

YOKE

#6 Outer Tube

1шт.

11

MAG343D1505

ROLL PIN

#6/7 Outer 10x75mm

1шт.

12

MAG501D1103

TUBE

Drive #6 Outer L=715mm

1шт.

13

MAG501D1104

TUBE

Cardan Drive, #6 Inner L=715

1шт.

14

MAG343D1504

ROLL PIN

#6/7 Inner 10x65mm

1шт.

21

MAG343D1306

YOKE

#6 Inner Tube

1шт.

30

MAG501D0351D02

SLIP CLUTCH

1шт.

31

MAG0265160005

PROTECTION PLATE

Outer Bearing

1шт.

36

MAG0265160006

PROTECTION PLATE

Inner Bearing

1шт.

53

MAG501D1102

KIT

Ball Collar 1-3/8"

1шт.

61

MAG501D0484

TAPER PIN

with Nut

1шт.

66

MAG125D820

DISC

2шт.

67

MAG501D0486

YOKE

Flange

1шт.

68

MAG501D0487

BUSHING

Collar

1шт.

69

MAG501D0489

HUB

Clutch

1шт.

70

MAG501D0490

PLATE

Inner, 4mm

1шт.

71

MAG501D0491

CLUTCH, PRESSURE PLA

1шт.

72

MAG501D0492

BOLT AND NUT

8шт.

73

MAG125D815

COIL SPRING

8шт.

91

NS

NOT SERVICED

Tractor 1/2 PTO, No Shield

1шт.

92

NS

NOT SERVICED

Implement 1/2 PTO No Shield

1шт.

93

MAG501D1109

FRONT PTO ASSY

Tractor

1шт.

94

MAG501D1110

REAR PTO ASSY

Implement

1шт.

97

MAG501D1111

OUTER SHIELD

7' PTO

1шт.
