(018) - MAIN PTO (540 RPM)

Запчасти Case IH RC1800 (018) - MAIN PTO (540 RPM) (01) - PTO DRIVE SHAFT

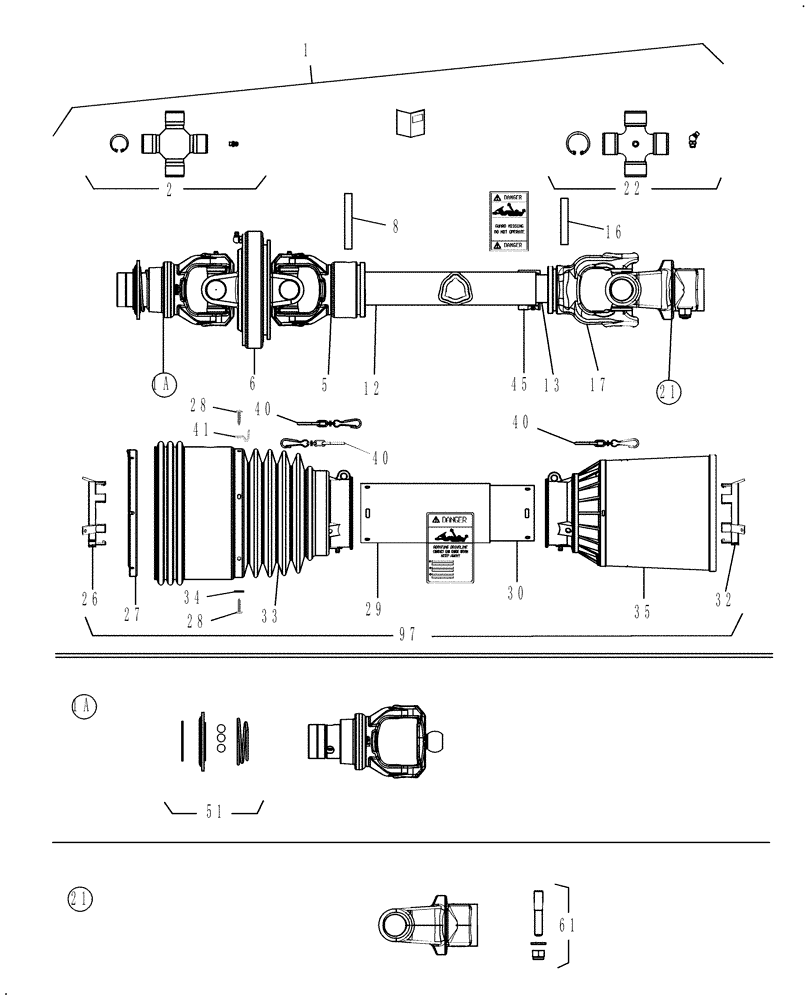

Схема запчастей Case IH RC1800 - (018) - MAIN PTO (540 RPM) (01) - PTO DRIVE SHAFT
45
1a
28
8
26
16
17
97
32
6
12
41
30
5
13
51
40
34
28
22
1a
40
1
21
29
2
35
61
21
40
33
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MAG415D0001D04

PTO

PTO Includes: Ref. 1A-97

1шт.

1a

MAG501D0507D01

YOKE

1-3/8" 80°, 6 Spline

1шт.

2

MAG501D0508D01

KIT

Cross Kit

2шт.

5

MAG501D0511D01

YOKE

Outer Tube

1шт.

6

MAG501D0510D01

PTO CLUTCH

Central Body

1шт.

8

MAG501D0513

ROLL PIN

Flexible

1шт.

12

MAG501D0514D01

TUBE

Outer

1шт.

13

MAG501D0515D01

TUBE

Inner

1шт.

16

MAG501D0516

ROLL PIN

12x75mm

1шт.

17

MAG501D0517D01

YOKE

Inner Tube

1шт.

21

MAG501D0519

YOKE

1 3/8" 6 Spline Taper Pin

1шт.

22

MAG501D0518

KIT

Cross W/45°

1шт.

26

MAG501D0520

SUPPORT

Shield Support Outer

1шт.

27

MAG501D0541

SUPPORT

Shield Support 80°

1шт.

28

MAG501D0500

SELF-TAP SCREW

6шт.

29

MAG501D0522D01

OUTER SHIELD

Tube

1шт.

30

MAG501D0523D01

INNER SHIELD

Tube

1шт.

32

MAG501D0525

SUPPORT

Shield, Inner

1шт.

33

MAG501D0529D01

SHIELD

Cone, 80 °

1шт.

35

MAG501D0524

SHIELD

Cone, Inner

1шт.

40

MAG501D0526

CHAIN

Shield

3шт.

45

MAG501D0498

COLLAR

Greasing

1шт.

51

MAG501D0540

KIT

Ball Collar, 1 3/8"

1шт.

61

MAG501D0531

KIT

Taper Pin, 1 /38"

1шт.

97

MAG501D0609

KIT

Complete Shield

1шт.
