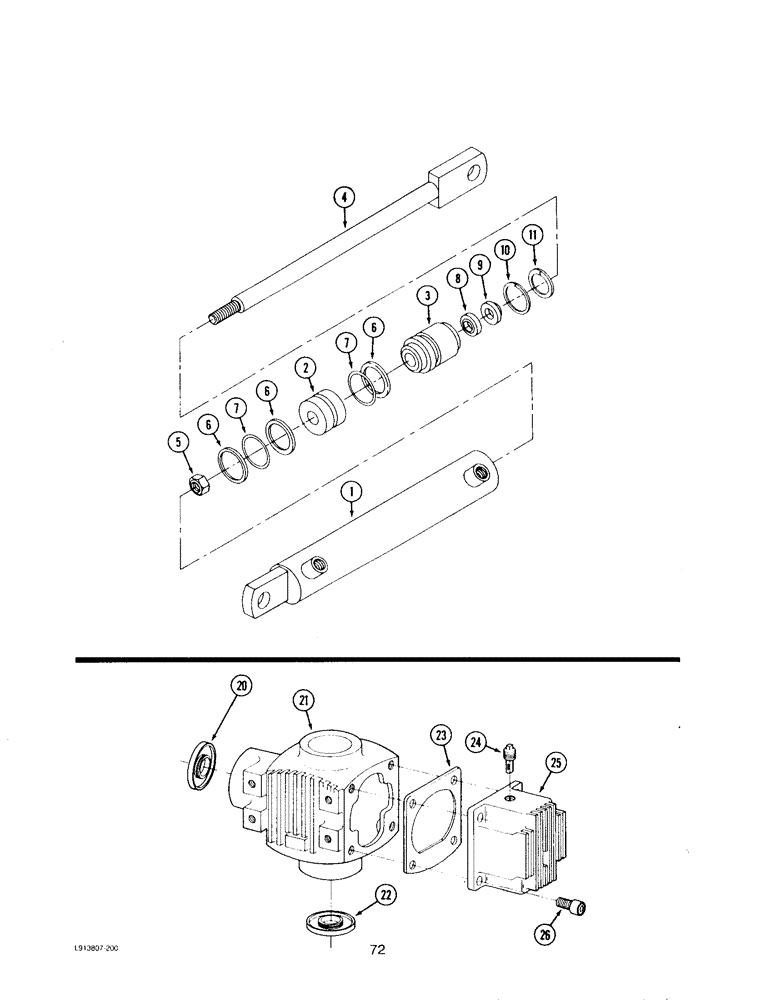

Запчасти Case IH M172 (72) - LIFT CYLINDER (58) - ATTACHMENTS/HEADERS

1993086C1

CYLINDER

ASSEMBLY - hydraulic lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - piston

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

LOCKNUT - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup

3шт.

Part of seal kit P/N 1993087C1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 x 1-1/2 inch

2шт.

Part of seal kit P/N 1993087C1

1шт.

8

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Part of seal kit P/N 1993087C1

1шт.

9

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

Part of seal kit P/N 1993087C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - retaining, internal

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining, external

1шт.

1993087C1

SEAL KIT

- seal, Inlcudes: Ref. 6, 7, 8 and 9

1шт.

1993036C1

GEARBOX ASSY

GEARBOX ASSEMBLY - drive

1шт.

20

1993016C1

SEAL

- spindle, gearbox assmebly

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - gearbox, assembly

1шт.

22

1993060C1

SEAL

- mounting, gearbox assembly

1шт.

23

1993047C1

GASKET

- housing, gearbox assembly

1шт.

24

1993056C1

PLUG

- vent, gearbox assembly

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - end, gearbox assembly

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - mounting, gearbox assembly

4шт.
