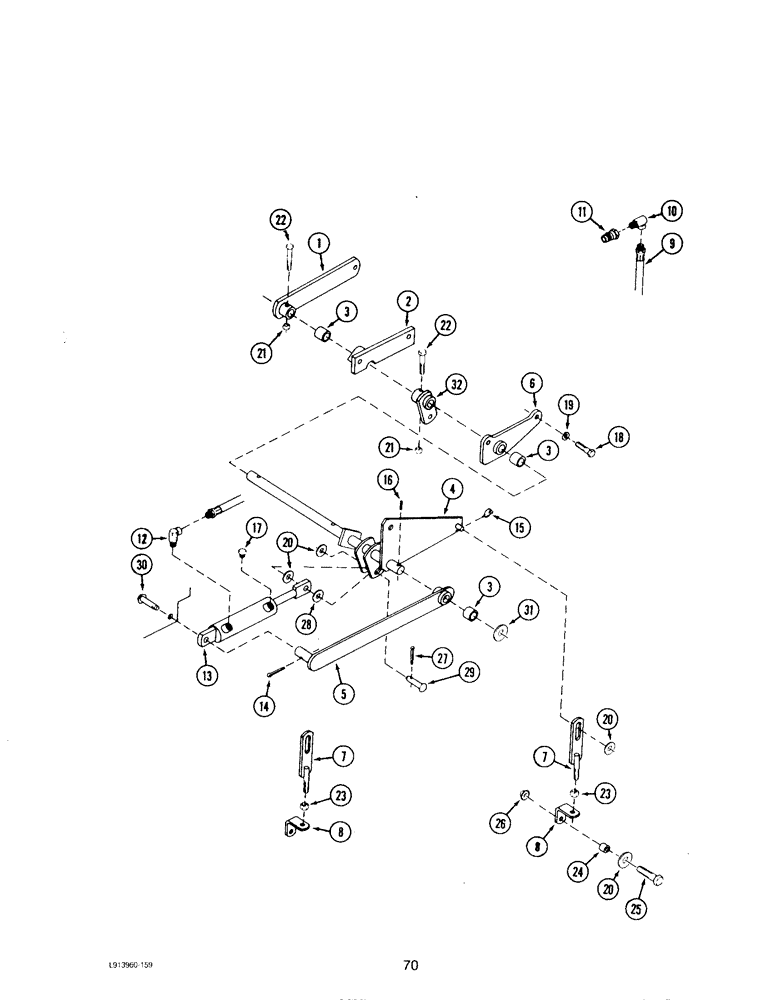

Запчасти Case IH M172 (70) - REAR MOUNTING (58) - ATTACHMENTS/HEADERS

1

1993121C1

ARM

ASSEMBLY - lift, rear

1шт.

2

1993125C1

ROCKSHAFT

ASSEMBLY - rear, right

1шт.

3

1993091C1

BUSHING

- oilite, 1.015 x 1.25 x 1.00 inch

3шт.

4

1993127C1

ROCKSHAFT

ASSEMBLY - rear

1шт.

5

1993118C1

BRACE

BRACKET - cylinder

1шт.

6

1993126C1

ROCKSHAFT

ASSEMBLY - rear, left

1шт.

7

1993115C1

BAR

- lift, right rear

2шт.

8

1993116C1

LINK

- lower lift

2шт.

9

1993139C1

HOSE

ASSEMBLY - hydraulic, 1/4 x 65 inch

1шт.

10

218-922

ELBOW,90 Degree, 1/2" NPTF Male x 1/4" NPSM Fem Sw

- 90 degree swivel

1шт.

11

1272770C2

COUPLING, BREAK AWAY

COUPLER - quick disconnect, male 1/2 inch NPT

1шт.

12

1993162C1

PIVOT

ELBOW - 90 degree swivel, 1/4 x 1/4 inch

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Page 73)

1шт.

14

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

15

1993093C1

PIN

- klik, 3/16 x 1 inch

2шт.

16

38-31632

PIN,1/4" x 2", Coiled

1шт.

17

1993140C1

PLUG

- vent, 1/4 inch

1шт.

18

624-12030

BOLT - hex, 12 - 1.75 x 30 mm, Grade 10.9

4шт.

19

392-21050

LOCK WASHER,1/2"

1/2"

4шт.

20

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

21

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, Grade 10

2шт.

22

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

23

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

24

1993094C1

SLEEVE

- 1/2 x 3/4 x 1/2 inch

2шт.

25

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

26

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex lock, 1/2 inch NC

2шт.

27

432-1216

COTTER PIN,3/16" x 1"

1шт.

28

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

3шт.

29

1993009C1

PIN

- clevis, 5/8 x 1.65 inch

1шт.

30

1993128C1

CLEVIS PIN

PIN - clevis, 5/8 x 3 inch

1шт.

31

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 9/64 inch

1шт.

32

1993137C1

LUG

- pull-arm

1шт.
