Запчасти Case IH M172 (66) - FRONT MOUNTING (58) - ATTACHMENTS/HEADERS

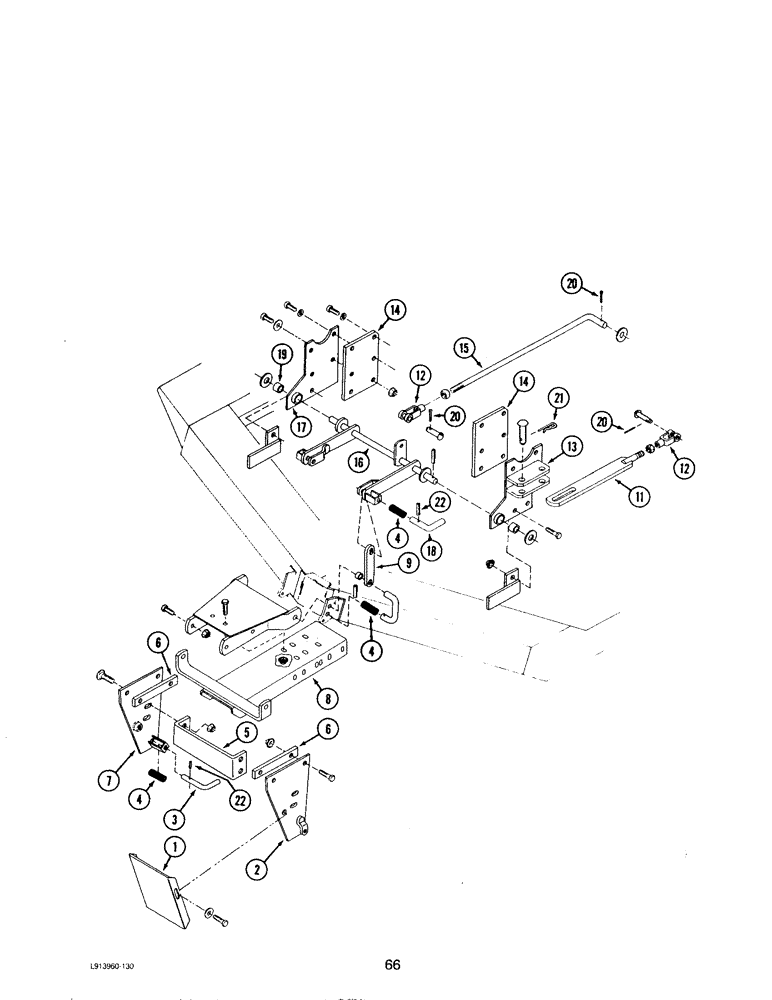

Схема запчастей Case IH M172 - (66) - FRONT MOUNTING (58) - ATTACHMENTS/HEADERS

Артикул

Название

Примечание

Количество

1

1993107C1

COVER

PLATE - front cover

1шт.

2

1993065C1

BRACKET

- front mounting, left

2шт.

3

1993084C1

PIN

- bent, 1/2 x 1.96 inch

2шт.

4

1993038C1

SPRING

- compression

6шт.

5

1993110C1

BRACE

PLATE - mounting

1шт.

6

1993106C1

LINK

- mounting

2шт.

7

1993064C1

BRACKET

- front mounting, right

1шт.

8

1993211C1

CHANNEL

ASSEMBLY - front mounting

1шт.

9

1993114C1

LINK

- mounting

2шт.

10

1993132C1

STOP

EXTENSION - lift stop

2шт.

11

1993133C1

BAR

- lockup

1шт.

12

1993090C1

YOKE

- clevis, adjustable

1шт.

13

1993131C1

STOP

- lift, front left

1шт.

14

1993111C1

PLATE

- loader

2шт.

15

1993119C1

PIN

- bent

1шт.

16

1993129C1

ROCKSHAFT

ASSEMBLY - front

1шт.

17

1993130C1

STOP

- lift, front right

1шт.

18

1993123C1

PIN

- bent

2шт.

19

1993091C1

BUSHING

- oilite, 1.015 x 1.25 x 1.00 inch

2шт.

20

432-1216

COTTER PIN,3/16" x 1"

3шт.

21

136-163

HAIR PIN COTTER,Int, 5/16" x .177

PIN - hair, 3/16 inch

1шт.

22

38-31218

PIN,3/16" x 1 1/8", Coiled

6шт.

Выбрано товаров: 22
