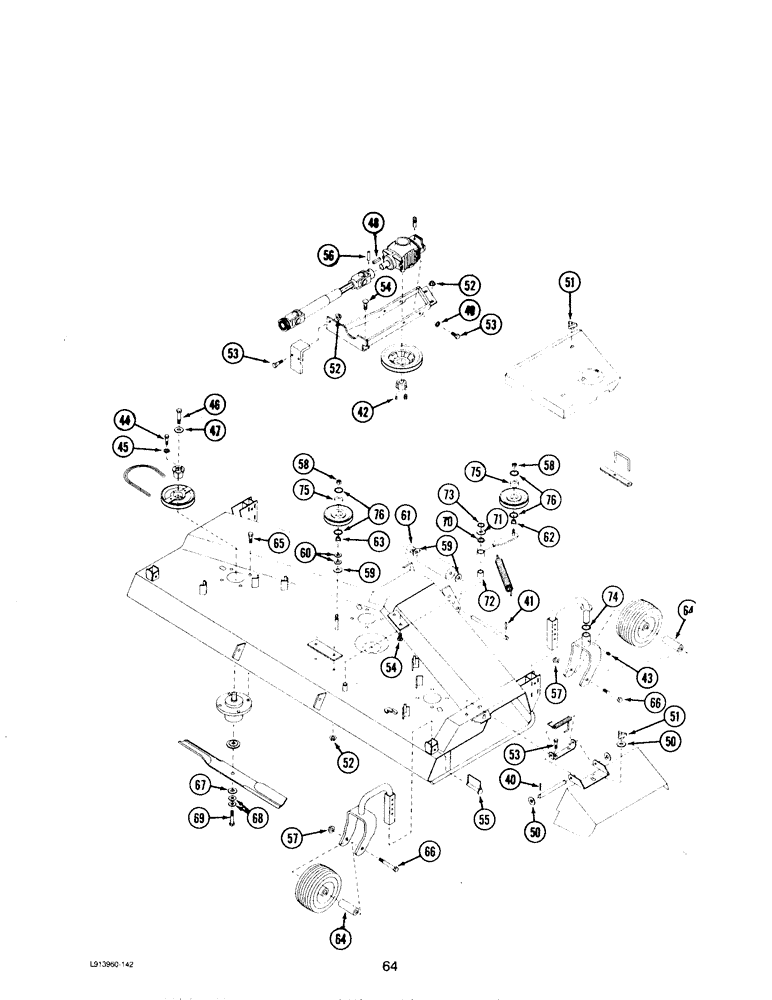

Запчасти Case IH M172 (64) - MAIN FRAME (58) - ATTACHMENTS/HEADERS

40

432-1216

COTTER PIN,3/16" x 1"

2шт.

41

38-31218

PIN,3/16" x 1 1/8", Coiled

2шт.

42

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

43

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

44

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

45

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

46

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

47

1993164C1

WASHER

- flat, 1/4 x 7/8 x 7 inch

3шт.

48

452779R1

KEY,1/4" Sq x 3/4", Par

- square parallel, 1/4 x 3/4 inch

1шт.

49

492-11038

LOCK WASHER,3/8"

4шт.

50

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

51

1993097C1

KNOB

- 3 prong, 3/8 inch NC

5шт.

52

232-5316

FLANGE NUT,Flg, 3/8"-16

NUT - hex lock, 3/8 inch NC

6шт.

53

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

54

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

55

1993165C1

PIN

- lynch, 3/8 x 2-1/4 inch

4шт.

56

38-32424

PIN,3/8" x 1 1/2", Coiled

1шт.

57

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex lock, 1/2 inch NC

4шт.

58

231-4138

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

59

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

5шт.

60

1993230C1

WASHER

SHIM - 1/2 x 7/8 x 3/64 inch

2шт.

61

1993231C1

SLEEVE

- 1/2 x 3/4 x 3/4 inch

2шт.

62

1993161C1

SLEEVE - shouldered

1шт.

63

1993220C1

SLEEVE

- shouldered

1шт.

64

1993166C1

SLEEVE

- 1/2 x 3/4 x 3-3/8 inch

4шт.

65

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex, 1/2 NF x 1 inch

12шт.

66

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

4шт.

67

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

3шт.

68

1993169C1

CUP WASHER

- cup, 5/8 x 1-3/4 inch

2шт.

69

1993002C1

BOLT

BOLT - hex lock, 5/8 NC x 2 inch

3шт.

70

1993168C1

SEAL

- felt, 5/8 x 1 x 1/4 inch

1шт.

71

1993171C1

WASHER

- flat, 3/4 x 1-1/2

1шт.

72

1993238C1

BUSHING

- bronze, 3/4 x 1 x 1 inch

1шт.

73

100-3375

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, #75, .574" Dia, E-Type

1шт.

74

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

75

1993249C1

BEARING

2шт.

76

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

4шт.
