Запчасти Case IH M172 (62) - MAIN FRAME (58) - ATTACHMENTS/HEADERS

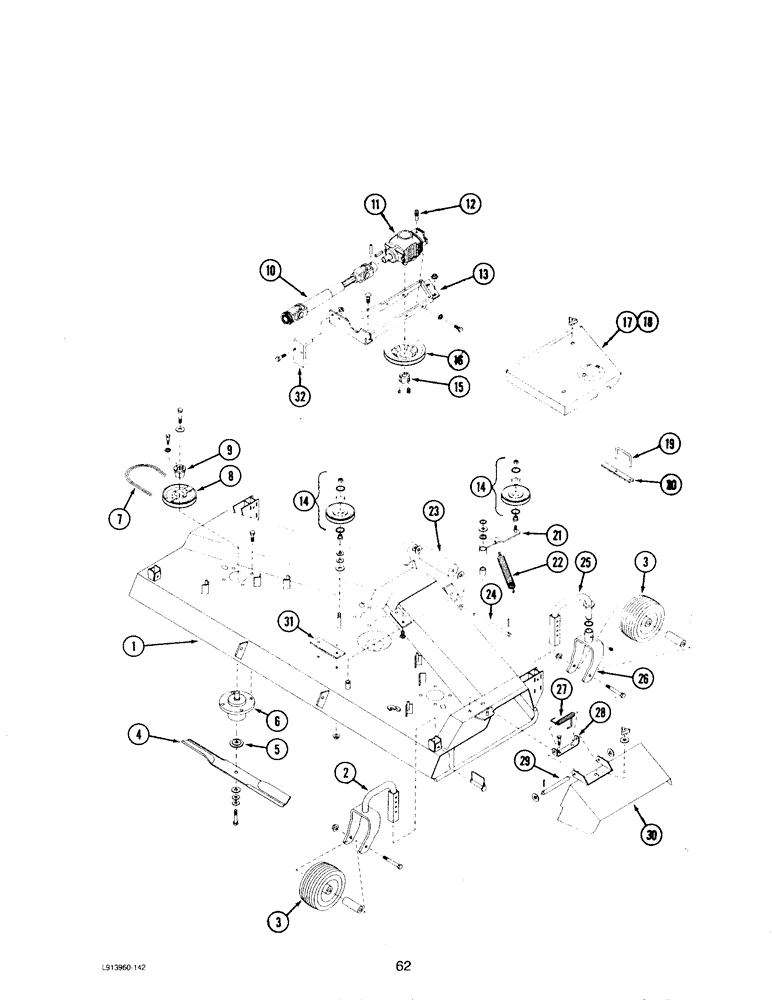

Схема запчастей Case IH M172 - (62) - MAIN FRAME (58) - ATTACHMENTS/HEADERS

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - main

1шт.

2

1993215C1

CLEVIS

YOKE - rear gauge wheel

2шт.

3

1993209C1

WHEEL

- gauge

4шт.

4

1993174C1

BLADE

- flat

3шт.

5

1993010C1

WASHER

- shoulder

3шт.

6

REF

INSTRUCTION

SPINDLE ASSEMBLY - blade (See Page 77)

3шт.

7

1993253C1

BELT,160.00", L

V-BELT , Blade drive 160.00", L

1шт.

8

1993208C1

SEAL

SHEAVE - blade drive

3шт.

9

1993031C1

SHAFT ASSY.

BUSHING ASSEMBLY

3шт.

10

REF

INSTRUCTION

SHAFT ASSEMBLY - drive (See Page 75)

1шт.

11

REF

INSTRUCTION

GEARBOX ASSEMBLY - drive (See Page 73)

1шт.

12

1993056C1

PLUG

- vent

1шт.

13

1993043C1

MOUNTING PARTS

MOUNTING ASSEMBLY - gearbox

1шт.

14

1993254C1

FRONT IDLER

SHEAVE ASSEMBLY - with bearings (Includes reference numbers 75 and 76)

2шт.

15

1993037C1

BUSHING

- taper lock (Includes set screws)

1шт.

16

1993039C1

SHEAVE

- offset, 6.38 OD

1шт.

17

1993212C1

SHIELD

- belt, right

1шт.

18

1993213C1

SHIELD

- belt, left

1шт.

19

1993004C1

SPECIAL WRENCH

WRENCH - spindle lock

1шт.

20

1993024C1

HANDLE

- spindle wrench

1шт.

21

1993252C1

ARM

ASSEMBLY - idler (Includes reference number 72)

1шт.

22

1993014C1

SPRING

- extension

1шт.

23

1993219C1

ROLLER

- deck

2шт.

24

1993221C1

PIN

- 1/2 x 9-3/4 inch

1шт.

25

1993214C1

ARM

- front gauge wheel

2шт.

26

1993216C1

CLEVIS

YOKE - front gauge wheel

2шт.

27

1993102C1

SPRING

- discharge chute

1шт.

28

1993103C1

BRACKET

- deck

1шт.

29

1993104C1

PIN

- 3/8 x 7-1/4 inch

1шт.

30

1993101C1

CHUTE ASSY.

CHUTE - discharge

1шт.

31

1993218C1

LINK

PLATE - support

1шт.

32

1993233C1

LUG

BRACKET - support

1шт.

Выбрано товаров: 32
