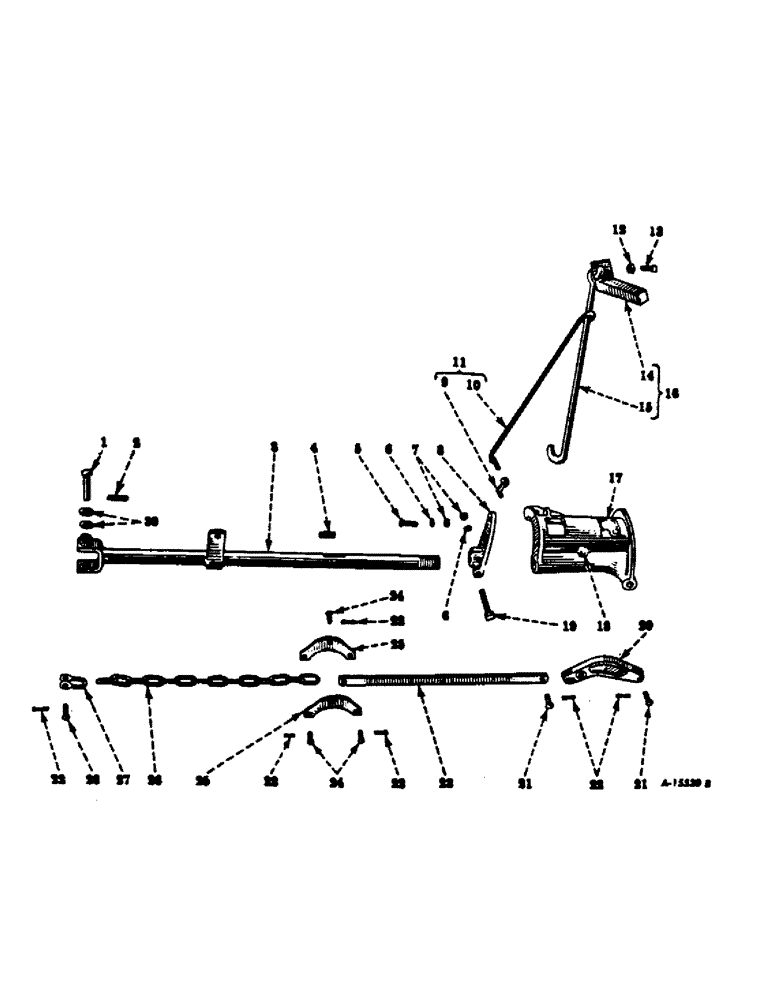

Запчасти Case IH L-22 (G-18) - COUPLING BAR, DRAG BAR, INNER SHOE HINGE, GAG LEVER AND CHAIN

1

22935R1

PIN, 3/4 x 4-7/8 C-Z std-hd

1шт.

2

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

3

451375R95

BAR, coupling

1шт.

4

Q63

KEY,3/8" Sq x 1 1/2", Par

3/8 x 3/8 x 1-1/2 straight

1шт.

5

22875R1

BOLT, 1/2 x 1-3/4 C-Z step

1шт.

6

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

451385R2

CLAMP

tilting

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 C-Z hex-hd cap

1шт.

9

MA487

NUT

CRANK, stay rod

1шт.

10

ROD, stay, order 451445R91

1шт.

11

451445R91

ROD

W/CRANK ASSY, stay

1шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

13

23021R1

SCREW, 5/8-11 x 2 C-Z sq-hd cup-pt set

1шт.

14

451382R94

SUPPORT, drag bar

1шт.

15

457192R1

BAR, drag

1шт.

16

457200R91

BAR W/SUPPORT ASSY, drag

1шт.

17

451386R2

HINGE, inner shoe

1шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight lub, optional

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

19

13443R1

BOLT, 1/2-13NC x 3-3/8 mach

1шт.

20

MA1418

ARM

POST, gag lever

1шт.

21

21657R1

PIN, 7/16 x 1-3/8 znp std-hd

2шт.

22

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

6шт.

23

451380R1

BAR

LINK, gag

1шт.

24

M906

HEADED PIN,7/16" x 1 1/8"

PIN, 7/16 x 1-1/8 dld std-hd

3шт.

25

451379R1

LEVER

gag

2шт.

26

M42552

CHAIN (AG)

CHAIN, lifting

1шт.

27

M42549

CLEVIS

lifting chain

1шт.

28

671034R1

PIN

1/2 x 1-1/2 C-Z std-hd

1шт.

29

(Not used this application)

1шт.

30

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z

2шт.
