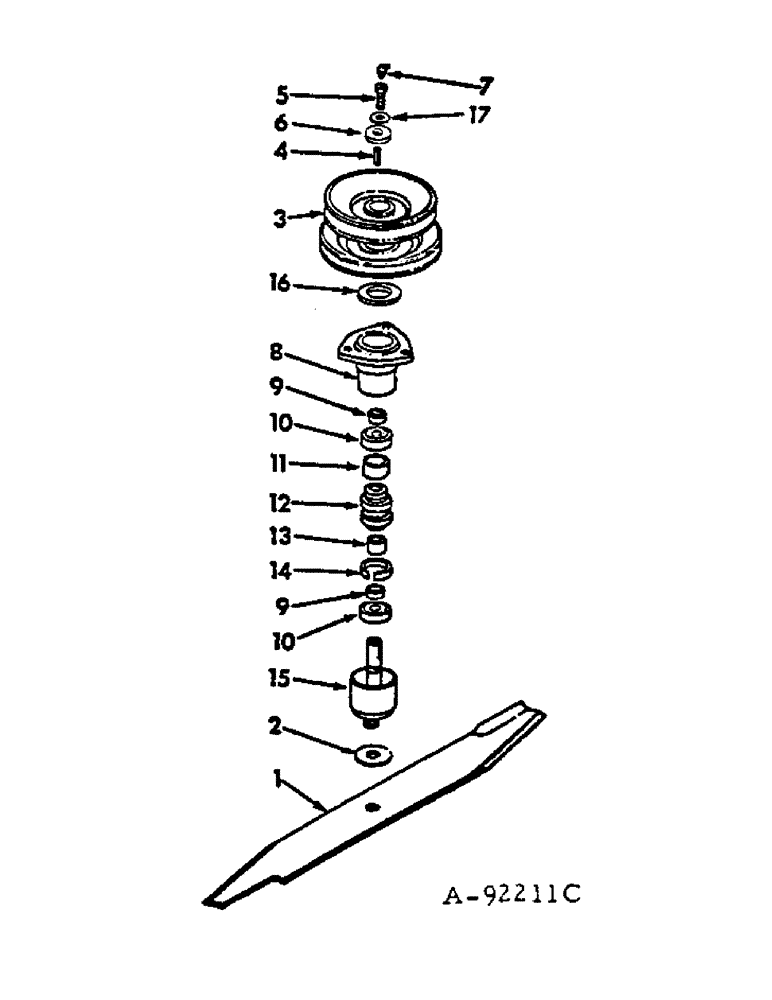

Запчасти Case IH INTERNATIONAL (E-11) - 60 IN. ROTARY MOWER, SPINDLE AND BLADES / PRODUCT GRAPHICS

1

477597R3

HALF BLADE

BLADE, center, replaces 491886R1

1шт.

1

490473R1

KNIFE ASSY

BLADE, center, hard surface

1шт.

1

487761R1

KNIFE ASSY

BLADE, outer

2шт.

1

490476R1

BLADE

outer, hard surface

2шт.

2

473860R1

WASHER

blade friction

3шт.

3

491887R1

PULLEY

outer LH

1шт.

3

491888R1

PULLEY

outer RH

1шт.

3

491889R3

PULLEY

center

1шт.

4

452779R1

KEY,1/4" Sq x 3/4", Par

1/4 x 1/4 x 3/4

3шт.

5

473435R1

BOLT,3/8" - 24 x 1", Grade 8

end

3шт.

6

490196R1

WASHER

outer spindle

2шт.

6

541437R1

WASHER

13/32 x 1 x 7 ga heat treated, for center spindle

1шт.

7

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 5/16 str drive type lub

3шт.

8

541494R2

HOUSING

spindle

3шт.

.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

9шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

.

120377

NUT,3/8" - 16, Gr 5

9шт.

9

473431R2

SPACER

pulley

6шт.

10

473428R91

OIL SEAL

spindle oil

6шт.

11

481097R1

BUSHING

bearing OD separator

3шт.

12

473430R91

BEARING ASSY,19.05mm ID x 45.26mm OD x 38.1mm W

spindle

3шт.

13

543196R1

SPACER

spindle bearing

3шт.

14

473429R1

RING

SPACER, spindle outer

3шт.

15

481093R92

SPINDLE

ASSY, blade drive disc

3шт.

.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

3шт.

.

575814R1

WASHER

25/32 x 2 x 11 ga

3шт.

16

541326R1

WASHER

25/32 x 1-1/2 x 16 ga

3шт.

17

173128

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER, 3/8 int-ext-tooth lock

3шт.

.

546735R91

PACKAGE, spindle & center pulley, consists of

1шт.

.

543119R1

SPINDLE

DISC

1шт.

.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

.

INSTRUCTIONS (NSS)

1шт.

.

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1-3/4 sq parallel

1шт.

.

462249R1

NUT

1шт.

.

543120R1

PULLEY

1шт.

.

543196R1

SPACER

1шт.

.

541326R1

WASHER

2шт.

.

544110R91

PACKAGE

spindle repair, consists of

3шт.

.

481097R1

BUSHING

1шт.

.

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE

2шт.

.

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

.

651814R1

BEARING CUP

CUP

2шт.

.

473428R91

OIL SEAL

OIL SEAL

2шт.

.

543196R1

SPACER

1шт.

.

473431R2

SPACER

2шт.

.

541326R1

WASHER

2шт.

.

57801C2

PRODUCT GRAPHIC

caution

1шт.

.

547494R92

DECAL

PACKAGE, IH trademark product graphics

1шт.
