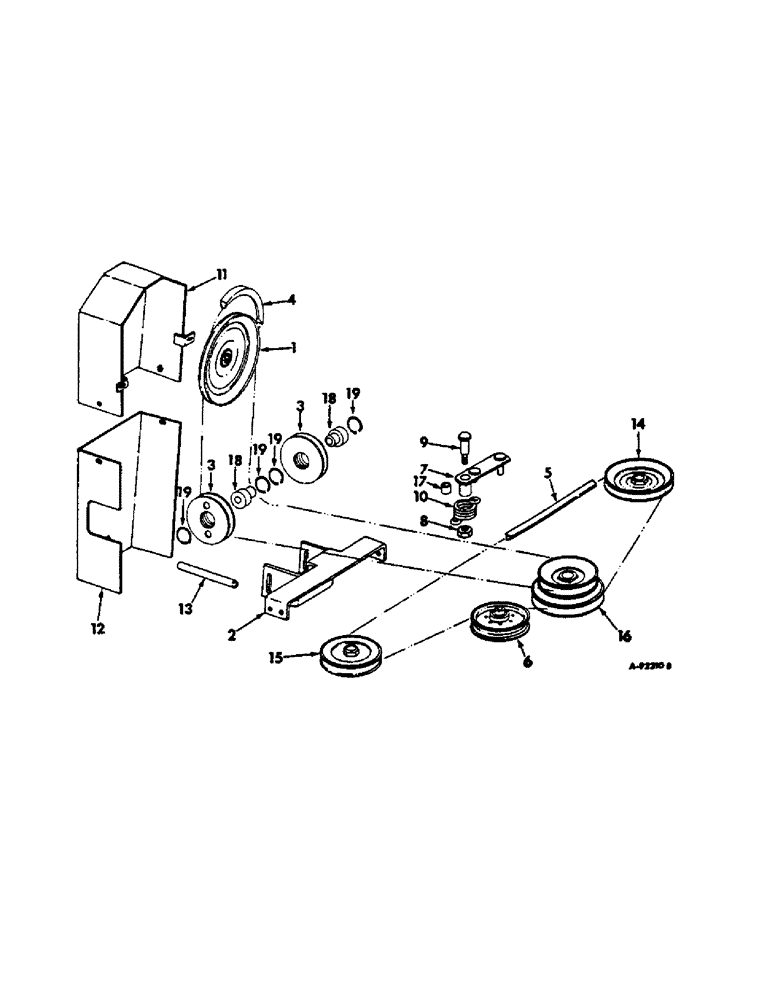

Запчасти Case IH INTERNATIONAL (E-10) - 60 IN. ROTARY MOWER, MOWER DRIVE AND CONNECTIONS

1

491881R2

PULLEY

driver

1шт.

21985R1

PIN, 3/16 x 2 C-Z cot.

1шт.

2

493783R1

BRACKET ASSY, idler support

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

543125R2

PULLEY

mule drive idler, replaces 491819R91 by also ordering bearing 543126R91 and two rings 273026R1

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

492102R1

BELT

Mule drive

1шт.

5

492103R1

V-BELT

Spindle drive

1шт.

6

542520R91

PULLEY

flat idler

1шт.

7

486355R1

ARM

ASSY, idler

1шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga C-Z

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

8

385525R1

LOCK NUT,3/8"-16, GB

NUT, center lock

2шт.

9

486360R1

BOLT

BOLT, idler arm pivot

1шт.

10

491883R1

SPRING

torsion

1шт.

11

491884R11

SHIELD

ASSY, upper

1шт.

12

492970R2

SHIELD

lower

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

6шт.

20484R1

BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5

SCREW, 5/16-18 x 6-1/2 znd hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

1шт.

13

491997R1

SPACER,3/8" X-Strng Pipe x 5 3/4"

mtg

1шт.

14

491887R1

PULLEY

outer LH

1шт.

15

491888R1

PULLEY

outer RH

1шт.

16

491889R3

PULLEY

center

1шт.

17

540024R1

SPACER, idler arm assy

1шт.

18

543126R91

BALL BEARING,19.33mm ID x 34.92mm OD x 23.14mm W

ASSY, pulley ball

2шт.

19

273026R1

SNAP RING,1.375", Int, #137

Ring, Snap, , brg 1.375", Int, #137

4шт.
