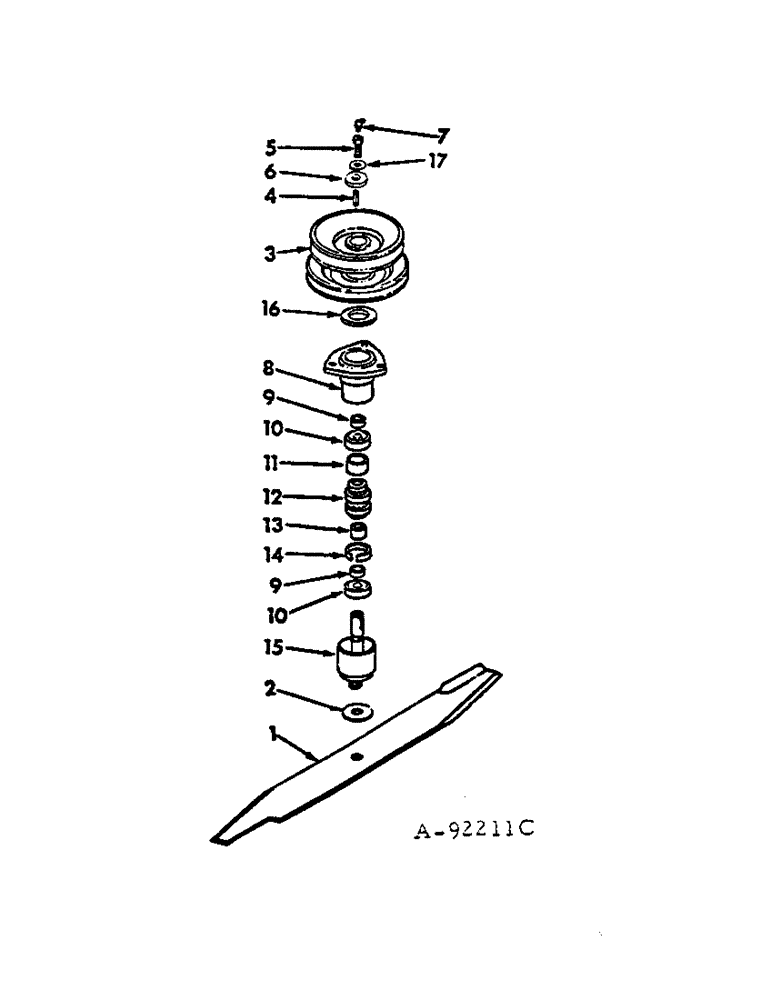

Запчасти Case IH INTERNATIONAL (E-05) - 48 IN. ROTARY MOWER, SPINDLE AND BLADES / PRODUCT GRAPHICS

1

489392R1

BLADE

center

1шт.

1

490474R1

BLADE

center, hard surface

1шт.

1

489393R1

BLADE

outer

2шт.

1

490475R1

BLADE

outer, hard surface

2шт.

2

473860R1

WASHER

blade friction

3шт.

3

481095R92

PULLEY

RH discharge outer

1шт.

3

489394R2

PULLEY

LH outer

1шт.

3

491889R3

PULLEY

center, machines built, Serial Range: 1968-1971

1шт.

3

543120R1

PULLEY

center, machines built, Serial Range: 1971-1972

1шт.

4

452779R1

KEY,1/4" Sq x 3/4", Par

1/4 x 1/4 x 3/4 sq parallel, 3 used on machines built 1968 to 1971, 2 used on machines build 1971 to 1972

1шт.

4

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1/4 x 1-3/4 sq parallel, for center pulley on machines built 1971 to 1972

1шт.

5

473435R1

BOLT,3/8" - 24 x 1", Grade 8

end, 3 used on machines built 1968 to 1971, 2 used on machines built, Serial Range: 1971-1972

1шт.

6

490196R1

WASHER

outer spindle

2шт.

6

541437R1

WASHER

13/32 x 1 x 7 ga heat treated, for center spindle 481093R92

1шт.

6

541326R1

WASHER

25/32 x 1-1/2 x 16 ga, for center spindle 543119R1

1шт.

7

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 5/16 drive type str lub, used with spindle 481093R92

3шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Used with spindle 543119R1 1/8"-27 x .66 lg

1шт.

8

541494R2

HOUSING

spindle

3шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

9

473431R2

SPACER

pulley

6шт.

10

473428R91

OIL SEAL

spindle oil

6шт.

11

481097R1

BUSHING

bearing OD separator

3шт.

12

473430R91

BEARING ASSY,19.05mm ID x 45.26mm OD x 38.1mm W

spindle

3шт.

13

543196R1

SPACER

spindle bearing

3шт.

14

473429R1

RING

SPACER, spindle outer

3шт.

15

481093R92

SPINDLE

ASSY, blade drive disc, 3 used on machines built 1968 to 1971, 2 used on machines built, Serial Range: 1971-1972

1шт.

15

543119R1

SPINDLE

ASSY, blade drive disc center, machines built, Serial Range: 1971-1972

1шт.

219753

BACK-UP RING

3/4-16 hex. jam

3шт.

462249R1

NUT

3/4-16 hex. torque lock, used with spindle 543119R1

1шт.

575814R1

WASHER

25/32 x 2 x 11 ga, blade drive disc spacer

3шт.

16

541326R1

WASHER

25/32 x 1-1/2 x 16 ga

3шт.

17

173128

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER, 3/8 int-ext-tooth lock, used only with bolt 473435R1

3шт.

546735R91

PACKAGE, spindle & center pulley, for machines built prior to 1971, consists of

1шт.

543119R1

SPINDLE

DISC

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Instructions (NSS) 1/8"-27 x .66 lg

1шт.

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1-3/4 sq parallel

1шт.

462249R1

NUT

1шт.

543120R1

PULLEY

1шт.

543196R1

SPACER

1шт.

541326R1

WASHER

2шт.

544110R91

PACKAGE

spindle repair, consists of

3шт.

481097R1

BUSHING

1шт.

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE

2шт.

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

651814R1

BEARING CUP

CUP

2шт.

473428R91

OIL SEAL

OIL SEAL

2шт.

473431R2

SPACER

2шт.

543196R1

SPACER

1шт.

541326R1

WASHER

2шт.

547494R92

DECAL

PACKAGE, IH trademark product graphics

1шт.

57801C2

PRODUCT GRAPHIC

S, caution

1шт.
