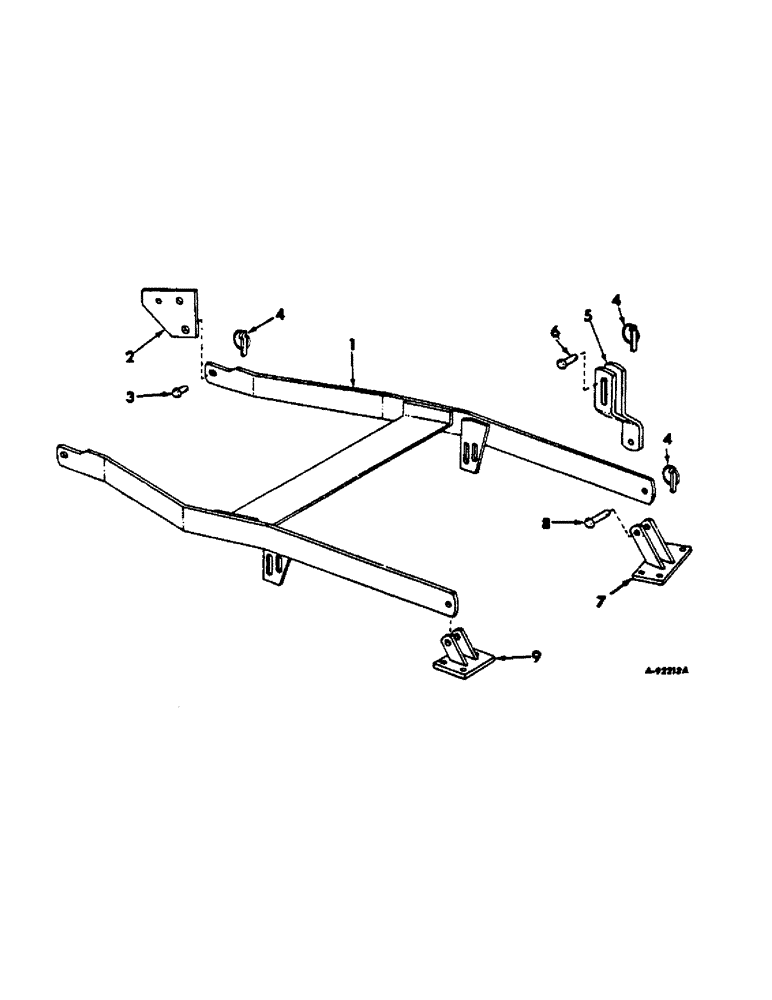

Запчасти Case IH INTERNATIONAL (E-03) - 48 IN. ROTARY MOWER, HITCH

1

491860R1

ARM ASSY.

ARM ASSY, lift

1шт.

2

491865R1

SUPPORT, lift arm

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

540179R1

PIN

lift arm pivot

2шт.

4

479696R91

AXLE PIN

PIN ASSY, klik

6шт.

5

491867R1

LINK

ASSY, lift

2шт.

6

491874R1

PIN

support hitch bracket

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

4шт.

7

492821R1

BRACKET ASSY, hitch LH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z, use for leveling

8шт.

8

491874R1

PIN

support hitch bracket

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

9

492824R1

BRACKET ASSY, hitch RH

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
