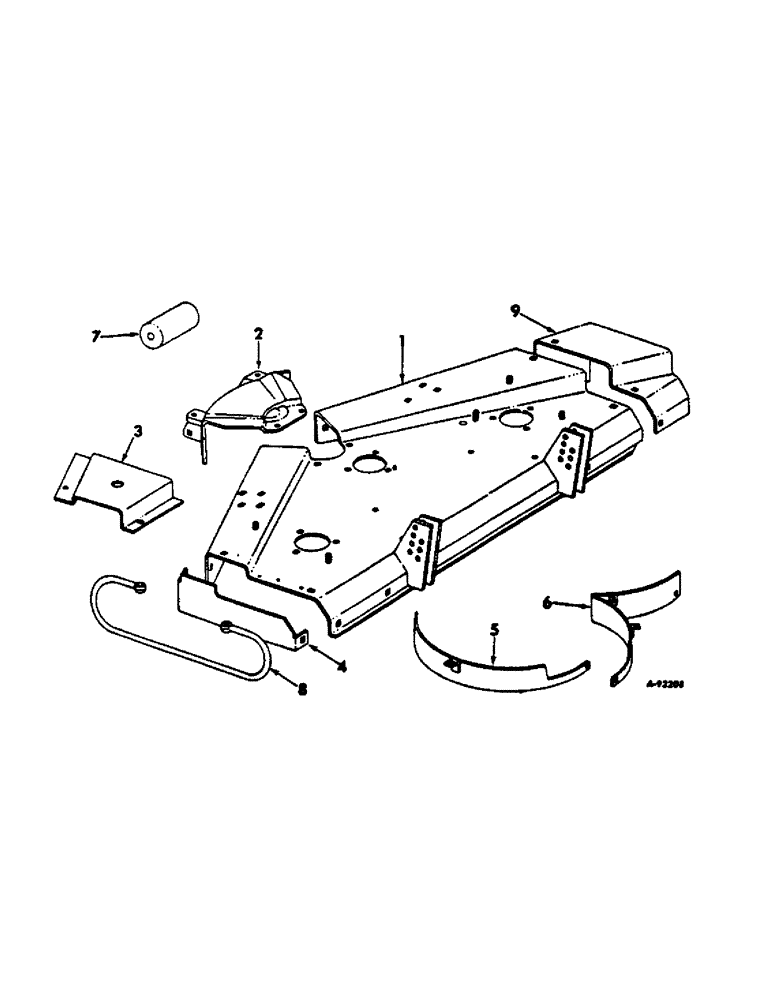

Запчасти Case IH INTERNATIONAL (E-02) - 48 IN. ROTARY MOWER, MAIN FRAME

1

492816R1

HOUSING ASSY, mower

1шт.

2

489356R3

HOUSING

center

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

492819R1

SHIELD, LH

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

492820R1

SHIELD, RH

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

489359R2

SIDE, housing LH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

489360R1

SHROUD

ASSY, RH

1шт.

5

489364R1

SHROUD

ASSY, LH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

2шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 C-Z sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

489362R1

SHROUD

ASSY, center

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

1шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 C-Z sq-nk crg

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

7

489470R1

ROLLER

front

1шт.

20914R1

BOLT, 1/2 x 7-1/2 C-Z sq-nk crg

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 CDP nylon insert

1шт.

8

489366R1

RUNNER

LH

1шт.

22476R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/8" , Gr 2

BOLT, 3/8-16 x 1-1/8 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

489367R1

RUNNER

RH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

489368R2

SHIELD, discharge

1шт.
