Запчасти Case IH HR8-1 (P-02) - PLATFORM AND MOUNTING PARTS

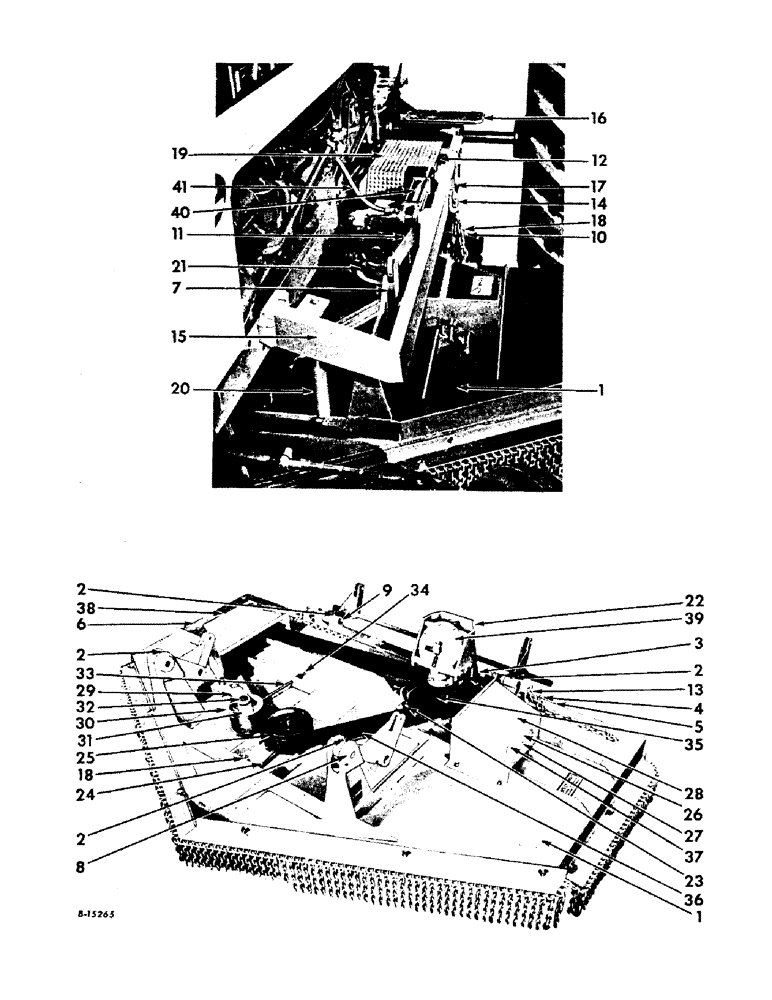

Схема запчастей Case IH HR8-1 - (P-02) - PLATFORM AND MOUNTING PARTS

Артикул

Название

Примечание

Количество

1

475041R91

PLATFORM ASSY, three spindle

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

6шт.

3

474863R91

NUT ASSY, gear box rear adj bolt

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

1шт.

474088R1

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

SCREW, 1/2-13 x 3 cd or zn-pltd hex-hd cap

2шт.

474455R1

SCREW, 5/8-11 x 6 cd or zn-pltd hex-hd cap

1шт.

131016

WASHER

21/32 x 1-5/16 x .095 cd or zn-pltd

2шт.

4

475042R91

GATE ASSY, tail

1шт.

5

475043R1

ROD, tail gate

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

6

474880R1

RUNNER, left side

1шт.

6

474881R1

RUNNER, right side

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cd or zn-pltd hex.

4шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

474742R1

CRANK, left front bell

1шт.

7

474743R1

CRANK, right front bell

1шт.

8

474744R1

PIN, front bellcrank mounting

2шт.

19415R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

2шт.

9

475045R1

SHAFT, rear bellcrank pivot

2шт.

19415R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

2шт.

10

474741R1

COLLAR, rear bellcrank set

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

2шт.

11

475046R91

BAR ASSY, left parallel

1шт.

11

475047R91

BAR ASSY, right parallel

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 std-hd

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

4шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .095 cd or zn-pltd

4шт.

12

475048R1

PIN, hyd cyl mounting

2шт.

19415R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

2шт.

13

474747R91

BRACKET ASSY, stop chain

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

475049R1

HANGER, stop chain

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cd or zn-pltd hex.

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 cd or zn-pltd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

475050R91

FRAME ASSY, left side

1шт.

15

475051R91

FRAME ASSY, right side

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

6шт.

137263

STRIP

3/16" x 2"

4шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap

6шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

Q3483

WASHER

1-9/32 x 2 x 11 ga

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

16

475054R1

PLATE, left axle tie

1шт.

16

475055R1

PLATE, right axle tie

1шт.

13694R1

BOLT

3/4-10 x 8 sq-hd mach

6шт.

280954

NUT,3/4"-10, G5

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

17

475059R91

PLATE ASSY, left side mounting

1шт.

17

475060R91

PLATE ASSY, right side mounting

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cd or zn-pltd hex.

6шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 cd or zn-pltd hex-hd cap, side mounting, Serial Range: plates-frames

5шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 cd or zn-pltd hex-hd cap, mounting plate to guard & frame

1шт.

131016

WASHER

21/32 x 1-5/16 x .095 cd or zn-pltd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

18

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg lub, in side mounting plate brg and in lubrication hose

5шт.

19

475061R91

GUARD ASSY, universal

1шт.

180172

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

SCREW, 1/2-13 x 7/8 cd or zn-pltd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20

475062R91

SPRING ASSY, tension

2шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

187238

BOLT,Hex, 1/2" - 13 x 6", Gr 5

SCREW, 1/2-13 x 6 hex-hd cap

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

4шт.

21

475072R1

SHEAVE, 6 groove gear box

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-20 x 1-1/2 hex-soc-hd cap

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

22

475073R91

BRACKET ASSY, gear box

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap, gear box to bracket

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

23

474893R1

BOLT, gear box bracket mounting

4шт.

443343

NUT, 5/8-11 cd or zn-pltd hex. lock

4шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .095 cd or zn-pltd

4шт.

24

474898R91

HOSE ASSY, housing lub, use 1 per housing

3шт.

25

493819R1

SHEAVE, 4 groove, replaces 475076R1

2шт.

26

493818R1

SHEAVE, 2 groove, replaces 475077R1

1шт.

27

493817R1

HUB, sheave, replaces 475078R1

3шт.

28

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1-3/4 sq parallel

3шт.

29

475079R91

BRACKET ASSY, idler

1шт.

30

475080R1

PULLEY, flat idler

1шт.

31

465003R91

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

ASSY, idler pulley ball

2шт.

32

475081R1

SHAFT, idler pulley

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

17145R1

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16 x 1-1/2 slt spring

1шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 cd or zn-pltd

3шт.

33

475082R1

ROD, idler adj

1шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

120390

WASHER,1/2"

9/16 x 1-3/8 x .109 cd or zn-pltd

3шт.

34

475083R1

SPRING, idler adj rod

1шт.

35

478261R91

SET OF BELTS,0.71" W x 53.90" L

(2), V-Belt, Left spindle drive 0.71" W x 53.90" L

1шт.

36

478260R91

SET OF BELTS,0.70" W x 126.90" L

(4), V-Belt, Right center & spindle drive 0.70" W x 126.90" L

1шт.

37

475086R91

GUARD ASSY, left belt

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

38

475087R91

GUARD ASSY, right belt

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

39

475063R91

GEAR BOX ASSY, for components see list of parts under details of gear box assembly

1шт.

40

371291R93

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in double, action hyd, for components see list of parts under details of hydraulic cylinder

2шт.

41

368194R91

HOSE

hyd cyl, 1/2 x 40 in

2шт.

353443R91

LATCH ASSY.

LATCH, belt guard

1шт.
