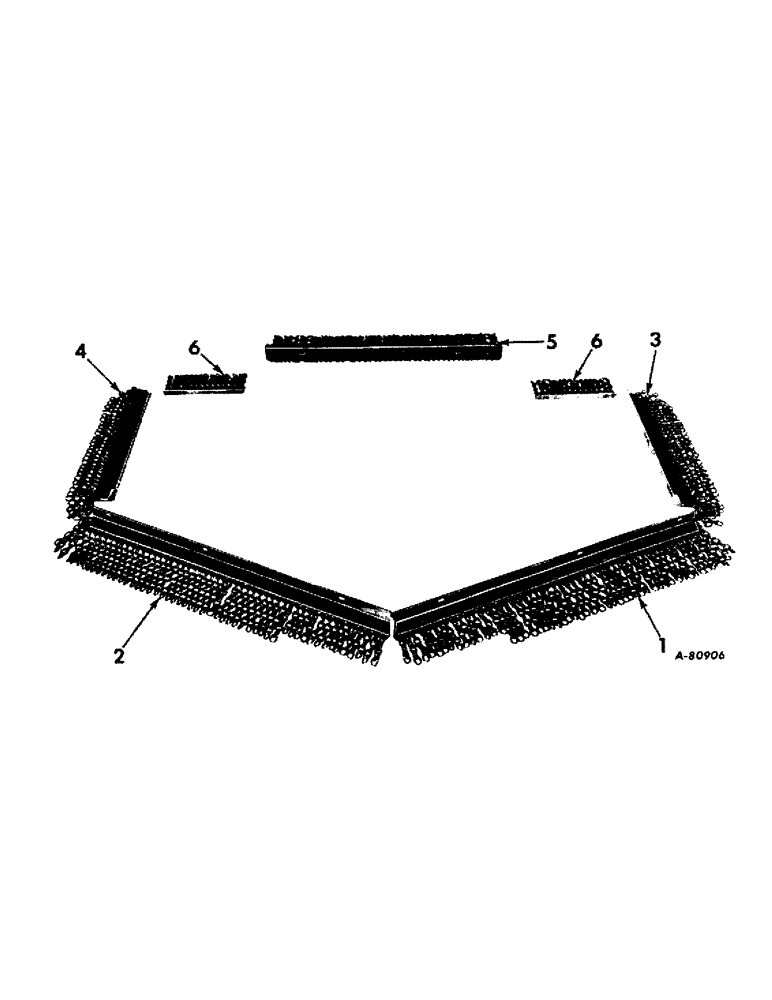

Запчасти Case IH HR8-1 (P-10) - CHAIN GUARDS

1

475110R91

GUARD ASSY, left front chain, note A

1шт.

2

475111R91

GUARD ASSY, right front chain, note B

1шт.

3

475112R91

GUARD ASSY, side left chain, note B

1шт.

4

475113R91

GUARD ASSY, side right chain, note B

1шт.

5

475114R91

GUARD ASSY, rear center chain, note B

1шт.

6

475115R91

GUARD ASSY, rear side chain, note C

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

10шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

10шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .095 cd or zn-pltd

6шт.
