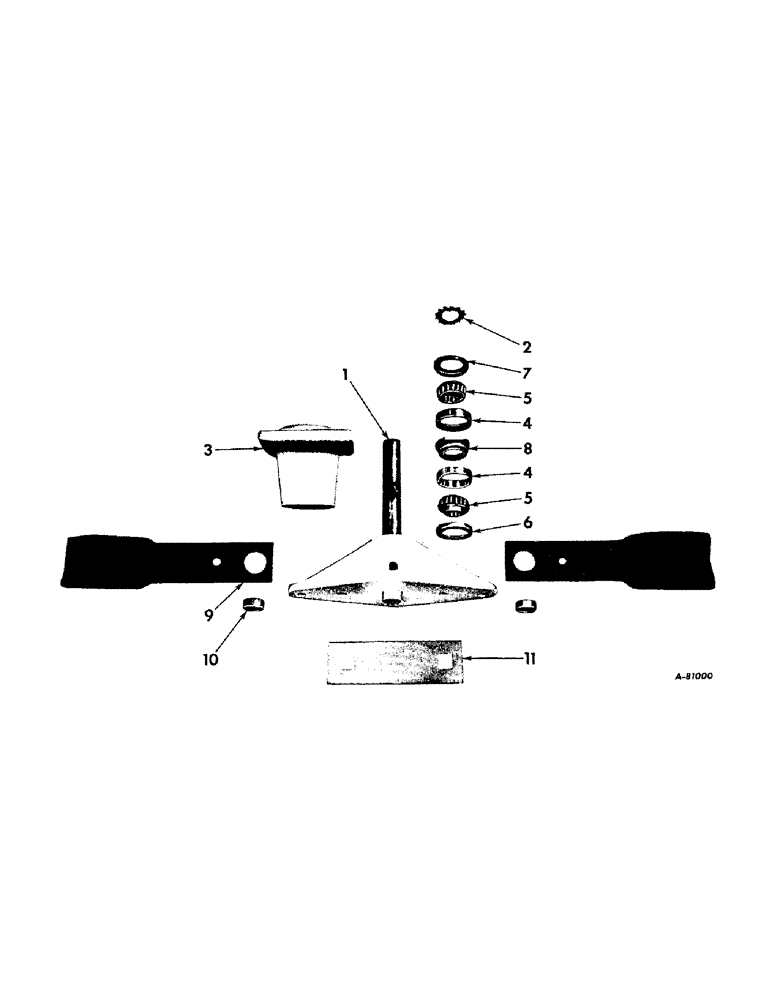

Запчасти Case IH HR504 (N-05) - SPINDLES & BLADES

474896R91

SPINDLE ASSY, short, includes refs 1 thru 8

1шт.

1

474897R91

SHAFT ASSY, short

2шт.

474022R1

WASHER

1-13/32 x 2-1/2 x 5/32 cd-pltd

2шт.

2

474023R1

WASHER

spindle shaft star

2шт.

474024R1

NUT

1-3/8-12 hex.

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 cd or zn-pltd hex. jam

4шт.

102584

SPARE PART

SCREW, 5/16-18 x 3/4 hex-soc hd cup-pt set

4шт.

3

474899R1

HOUSING SPINDLE

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cd or zn-pltd hex.

8шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 cd or zn-pltd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, spindle housing cup

2шт.

5

474017R91

BEARING ASSY,34.92mm ID

ASSY, housing cone

2шт.

6

474018R91

OIL SEAL

spindle housing bottom oil

2шт.

7

661876R91

OIL SEAL

SEAL, spindle housing top oil

2шт.

8

474019R1

BEARING COVER

CLOSURE, spindle housing

2шт.

9

475039R1

BLADE, standard, mowers w/serial nos. 1 thru 1824

4шт.

9

474025R1

BLADE

standard, mowers w/serial nos, Serial Range: 1825--

4шт.

9

475038R1

BLADE

heavy duty, mowers w/serial nos. 1 thru 1824

4шт.

9

475037R1

BLADE, heavy duty, mowers w/serial nos., Serial Range: 1825--

4шт.

10

474026R1

BUSHING,23.02mm ID x 37.57mm OD x 9.91mm L

cutter blade, used w/blade, 475025R1

4шт.

10

475973R1

BUSHING, cutter blade, used w/blade, 475037R1

4шт.

11

475040R1

PLATE, cutter blade tie, mowers w/serial nos. 1 thru 1824

1шт.

443339

NUT

1/2-13 C-Z hex. lock

4шт.

272686

ROLLER BEARING,28.565 mm ID x 21.135 mm

NUT, 3/4-16 C-Z hex. lock

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 C-Z hex-hd cap

4шт.

271795

BOLT

SCREW, 3/4-16 x 2-3/4 C-Z hex-hd cap

4шт.

11

475035R1

BAR

PLATE, cutter blade tie, mowers w/serial nos., Serial Range: 1825--

2шт.

11

479015R1

PLATE, cutter blade tie, mowers w/serial nos., Serial Range: 1825--

2шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/89-14 C-Z slt hex.

4шт.

137253

PIN, 3/16 x 1-5/8 C-Z cot.

4шт.

479016R1

BOLT,Hex, 7/8" - 14 x 2 3/4", Gr 5, Drilled

SCREW, 7/8-14 x 2-3/4 cd-pltd hex-hd cap, mowers w/serial nos., Serial Range: 1825--

4шт.

475036R1

BOLT,Sq Nk, 7/8" x 3 1/4", Drilled

SCREW, 7/8-14 x 2-3/4 cd-pltd hex-hd cap, mowers w/serial nos.1 thru 1824

4шт.
