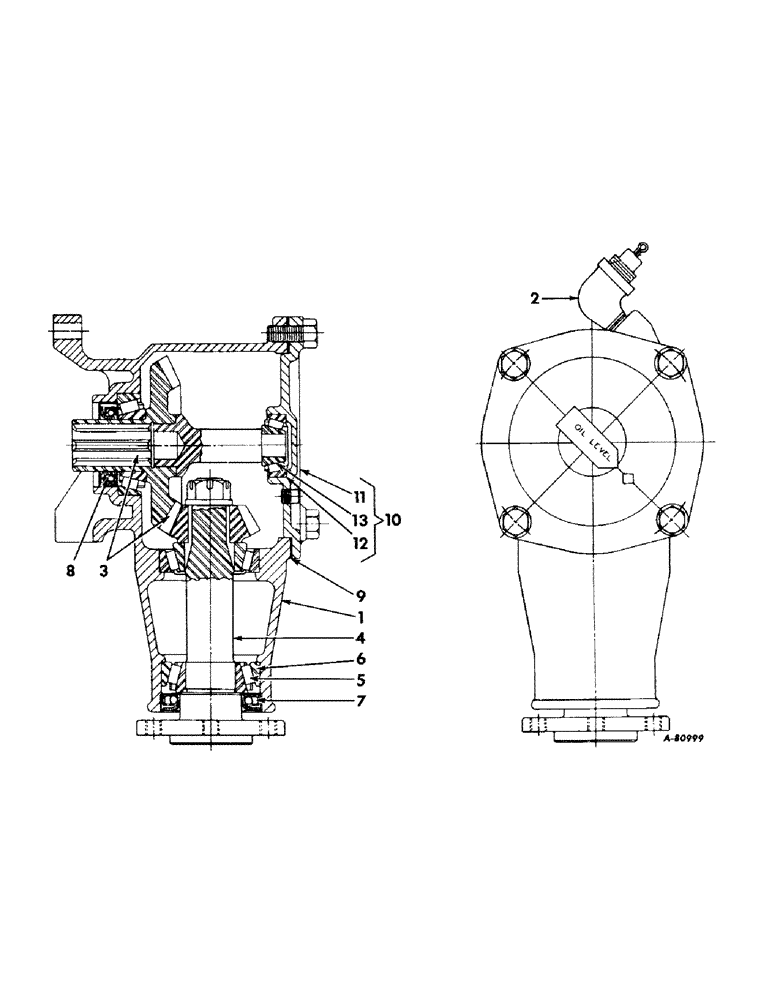

Запчасти Case IH HR-1 (N-04) - GEAR BOX

474882R91

BOX ASSY, gear

1шт.

1

474883R1

HOUSING, gear

1шт.

2

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 90 deg street

1шт.

137180

COTTER PIN,1/8" x 7/8"

PIN, SPLIT (COTTER), 1/8" x 7/8"

1шт.

10728P

PLUG

1/2 sq-hd dld pipe

1шт.

3

474884R91

GEAR SET

1шт.

4

474885R1

SHAFT, PTO pulley

1шт.

102349

NUT, 5/8-18 slt hex.

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

5

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

BEARING ASSY, cone

3шт.

6

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, cup

3шт.

7

474886R91

SEAL, pulley shaft oil

1шт.

8

474887R91

SEAL

gear shaft oil

1шт.

9

474888R1

GASKET, housing cover, .012/.015

1шт.

9

474889R1

GASKET, housing cover, .016/.019

1шт.

9

474890R1

GASKET, housing cover, .020/.023

1шт.

10

474869R91

COVER ASSY, housing

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8-27 automotive hex-hd pipe

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 cd or zn-pltd hex-hd cap

4шт.

11

474870R1

COVER, housing

1шт.

12

350775R1

CUP ASSY.

BEARING, housing cover cup

1шт.

13

350774R91

CONE

BEARING ASSY, housing cover cone

1шт.
