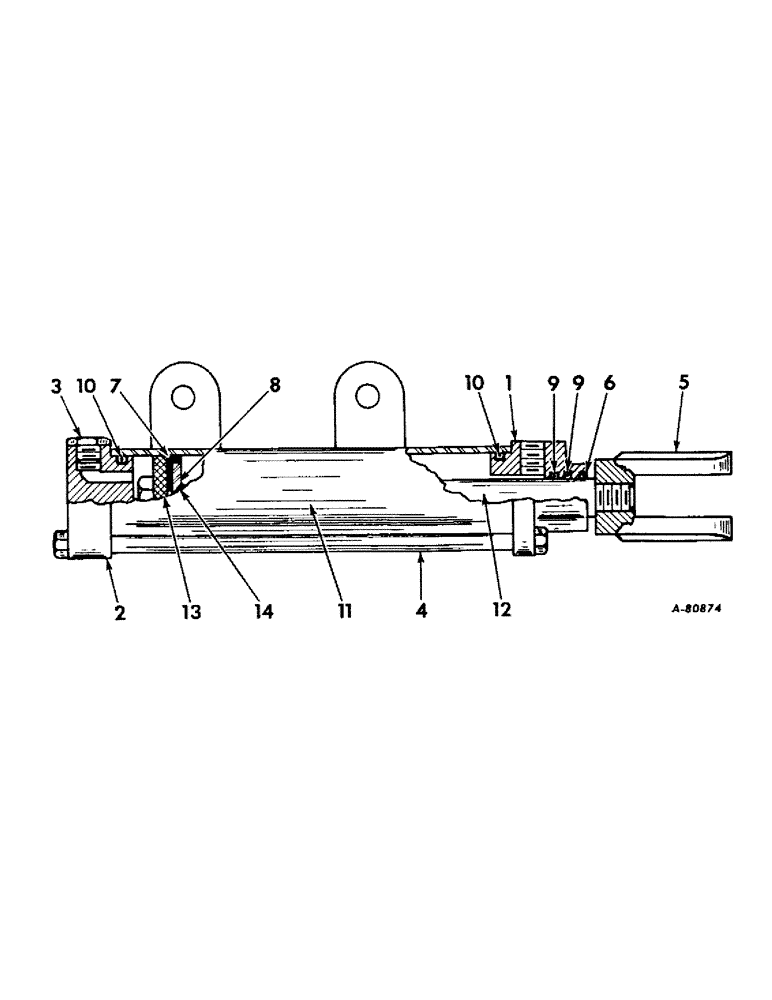

Запчасти Case IH HR-1 (N-10) - HYDRAULIC CYLINDER

474797R91

CYLINDER ASSY, 2 x 12 in. single-action hyd

2шт.

1

474802R1

HEAD, hyd cyl

2шт.

2

474803R1

BASE, hyd cyl

2шт.

3

474804R91

PLUG ASSY, breather

2шт.

4

474805R1

ROD, 3/8 tie

8шт.

102635

NUT,3/8"-16, G5

16шт.

5

474806R1

CLEVIS, hyd cyl shaft

2шт.

6

557189R91

SEAL

WIPER, piston shaft

2шт.

7

474808R1

CUP, hyd cyl piston

2шт.

8

474809R1

GASKET, hyd cyl piston

2шт.

9

254954R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1-1/16 x 1-5/16 x 1/8, piston shaft seal

4шт.

10

461173R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16, head & base seal

4шт.

11

474798R91

BARREL W/LUGS, hyd cyl

2шт.

12

474799R1

SHAFT, hyd cyl

2шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

2шт.

13

474800R1

PISTON, hyd cyl

2шт.

14

474801R1

SPACER, hyd piston cup

2шт.

474807R91

KIT, hyd cyl seal repair, consists of refs. 6 thru 10

1шт.

474930R91

KIT, hyd, consists of (1), bushing 144046, (1), coupling 474812R91, (2), cylinder 474797R91, (3), elbow 12063, (1), hose 474811R91, (1), hose 474919R91, (1), nipple 121207, (2), screw 271796, (4), washer 446257

1шт.
