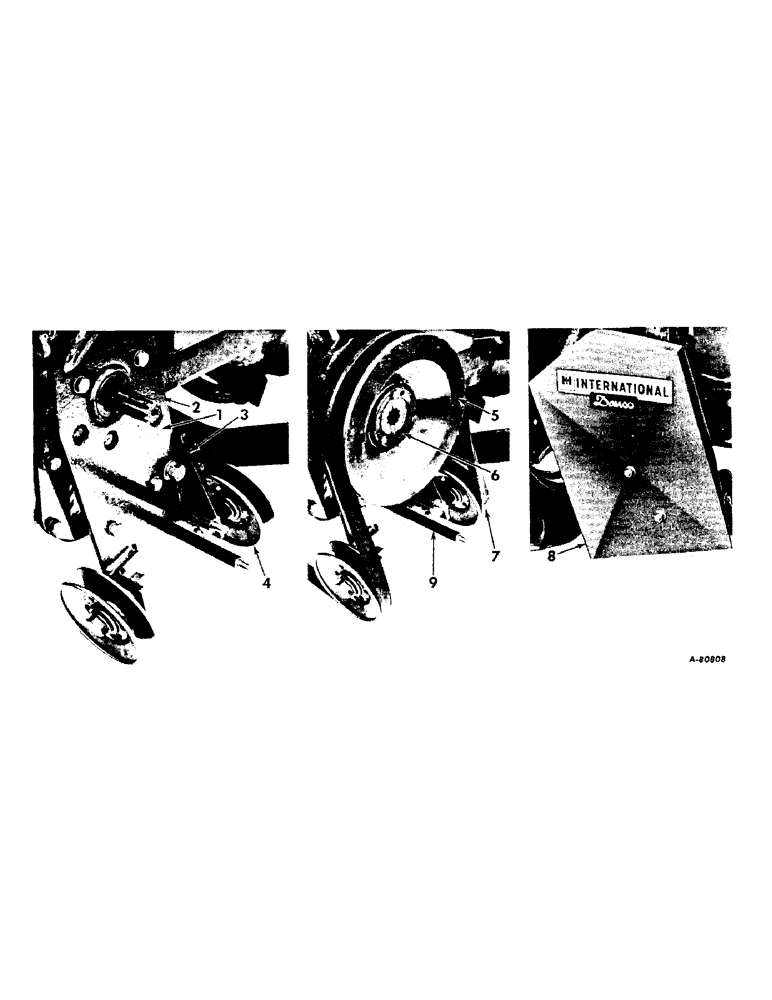

Запчасти Case IH C-1 (H-5) - MOUNTING & DRIVE PARTS INTERNATIONAL CUB, LO-BOY & FARMALL CUB W/O FAST HITCH

1

474509R91

PLATE ASSY, idler mounting

1шт.

International cub lo-boy tractors

1шт.

1

474524R91

PLATE ASSY, idler mounting

1шт.

Farmall cub tractors w/o fast hitch

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 cd or zn-pltd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

474525R1

BRACE, idler support

1шт.

Farmall cub tractors w/o fast hitch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd

1шт.

131016

WASHER

21/32 x 1-5/16 x .095 cd or zn-pltd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

474510R91

BRACKET ASSY, idler pulley adj.

1шт.

International cub lo-boy tractors

1шт.

Farmall cub tractors w/o fast hitch

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

662959R91

PULLEY ASSY.

PULLEY W/BEARING, v-idler

2шт.

International cub lo-boy tractors

1шт.

Farmall cub tractors w/o fast hitch

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

3шт.

474378R1

SCREW, 5/8-11 x 2-3/4 cd or zn-pltd hex-hd cap

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 cd or zn-pltd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .095 cd or zn-pltd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

474177R1

PULLEY

SHEAVE, rear drive

1шт.

International cub lo-boy tractors

1шт.

Farmall cub tractors w/o fast hitch

1шт.

6

474511R1

HUB, rear drive sheave

1шт.

International cub lo-boy tractors

1шт.

Farmall cub tractors w/o fast hitch

1шт.

474458R1

SCREW, 1/4-20 x 1-7/8 cd or zn-pltd hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

7

474512R1

V-BELT,166.20" L

V-section drive 166.20" L

1шт.

International cub lo-boy tractors

1шт.

Farmall cub tractors w/o fast hitch

1шт.

8

474526R1

GUARD, rear belt

1шт.

Farmall cub tractors w/o fast hitch

1шт.

9

474513R1

GUARD, rear bolt

1шт.

International cub lo-boy tractors

1шт.

10

474514R1

LUG, guard mounting

2шт.

International cub lo-boy tractors

1шт.

Farmall cub tractors w/o fast hitch

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
