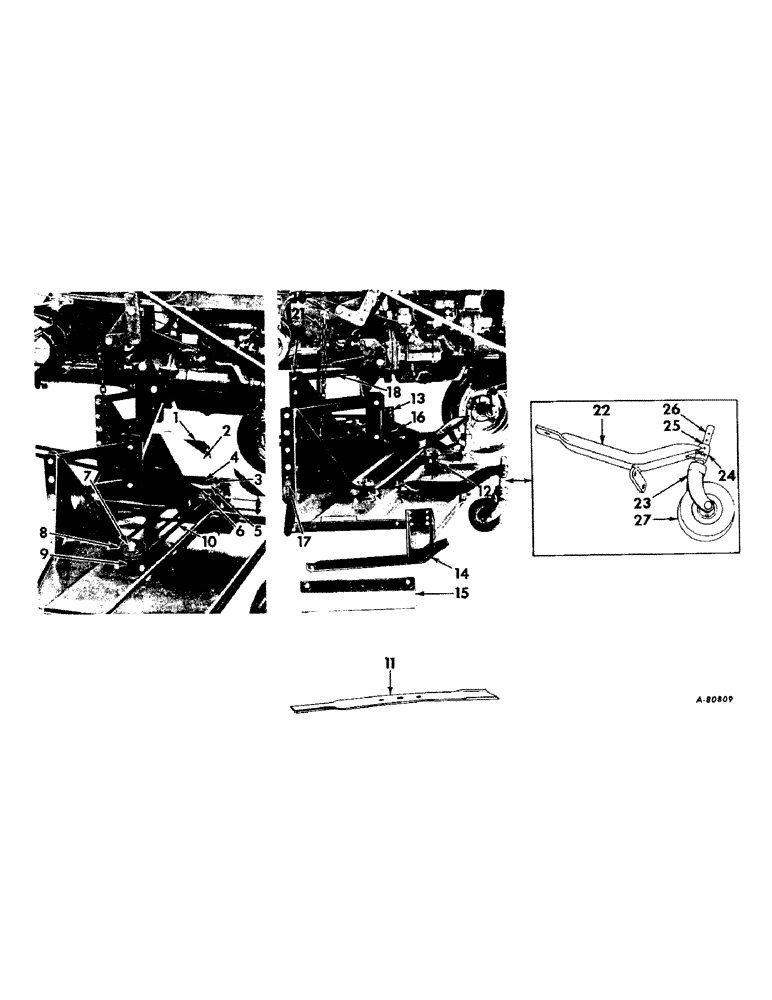

Запчасти Case IH C-1 (H-2) - PLATFORM, SPINDLES, GUIDE WHEELS AND MID-MOUNTING PARTS

1

474491R91

PLATFORM ASSY, three spindle

1шт.

2

474492R1

GUARD, platform belt left

1шт.

2

474493R1

GUARD, platform belt right

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .049 cd or zn-pltd

4шт.

3

474494R91

SPINDLE W/SHAFT, center

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8-16 x 2-1/4 cd or zn-pltd sq-nk crg

4шт.

443335

BOLT

NUT, 3/8-16 cd or zn-pltd hex. lock

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

4шт.

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1-3/4 sq parallel, for center spindle shaft

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

5

474165R1

PULLEY

SHEAVE, center spindle

1шт.

6

474496R1

HUB, center spindle

1шт.

474457R1

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 2

SCREW, 1/4-20 x 1-3/8 cd or zn-pltd hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

7

474495R91

SPINDLE W/SHAFT, side

2шт.

443335

BOLT

NUT, 3/8-16 cd or zn-pltd hex. lock

8шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 cd or zn-pltd hex-hd cap

8шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

8шт.

8

474161R1

PULLEY

SHEAVE, side spindle

2шт.

9

474498R1

HUB, side spindle

2шт.

474456R1

BOLT,1/4" x 1 31/64"

SCREW, 1/4-20 x 1-1/8 cd or zn-pltd hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

478263R91

SET OF BELTS,0.71" W x 56.85" L

2 Matched, V-Belt, Side spindle drive 0.71" W x 56.85" L

1шт.

11

474154R1

BLADE

cutter

3шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

6шт.

12

474499R91

BRACKET ASSY, center spindle adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

587406R1

SCREW, 1/2-13 x 6 hex-hd

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

13

474035R91

SHOE

RUNNER ASSY, left platform

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

474036R91

SHOE

RUNNER ASSY, right platform

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

474039R1

SUPPORT

PLATE, platform side deflector

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

474500R91

GUIDE ASSY, platform belt

1шт.

17

474501R91

BRACKET ASSY, mid-mounting, cub lo-boy tractor

1шт.

17

474502R91

BRACKET ASSY, mid-mounting, Farmall cub tractors

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

656643R1

SCREW, 1/2-13 x 2 hex-hd cap, platform adj bolt

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 cd or zn-pltd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bracket to tractor 5/8"

4шт.

18

474503R1

ARM, parallel lift, Farmall cub w/fast hitch & cub lo-boy

4шт.

18

474504R1

ARM, parallel lift, Farmall cub less fast hitch

4шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 std-hd, lift arm to platform

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

4шт.

H2808

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 std-hd, lift arm to mounting bracket

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

4шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x .095 cd or zn-pltd

20шт.

19

474505R91

SUPPORT ASSY, parallel lift arm

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

4шт.

271881

PANEL

SCREW, 5/8-11 x 2-1/4 cd or zn-pltd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

474506R1

ARM, chain lift

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

474507R91

CHAIN W/SHACKLES, lift, Farmall cub tractor

1шт.

21

474508R91

CHAIN W/SHACKLES, lift, cub lo-boy tractor

1шт.

22

474527R91

ARM ASSY, guide wheel left

1шт.

22

474528R91

ARM ASSY, guide wheel right

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 cd or zn-pltd crg

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

378484R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 cd or zn-pltd std-hd

2шт.

585614R1

PIN

quick attachable cot.

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 cd or zn-pltd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

23

474530R1

FORK, guide wheel

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, Guide wheel fork 1/4"-28 NPT x .54" lg

2шт.

25

474497R1

BEARING, swivel

4шт.

26

474529R1

SHAFT, guide wheel adj

2шт.

272686

ROLLER BEARING,28.565 mm ID x 21.135 mm

NUT, 3/4-16 cd or zn-pltd hex. lock

2шт.

27

474531R91

WHEEL

ASSY, guide

2шт.

650355R1

AXLE PIN

PIN, 3/4 x 3-3/4 std-hd

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 cd or zn-pltd

2шт.

28

478130R1

SPRING, floatomatic

1шт.
