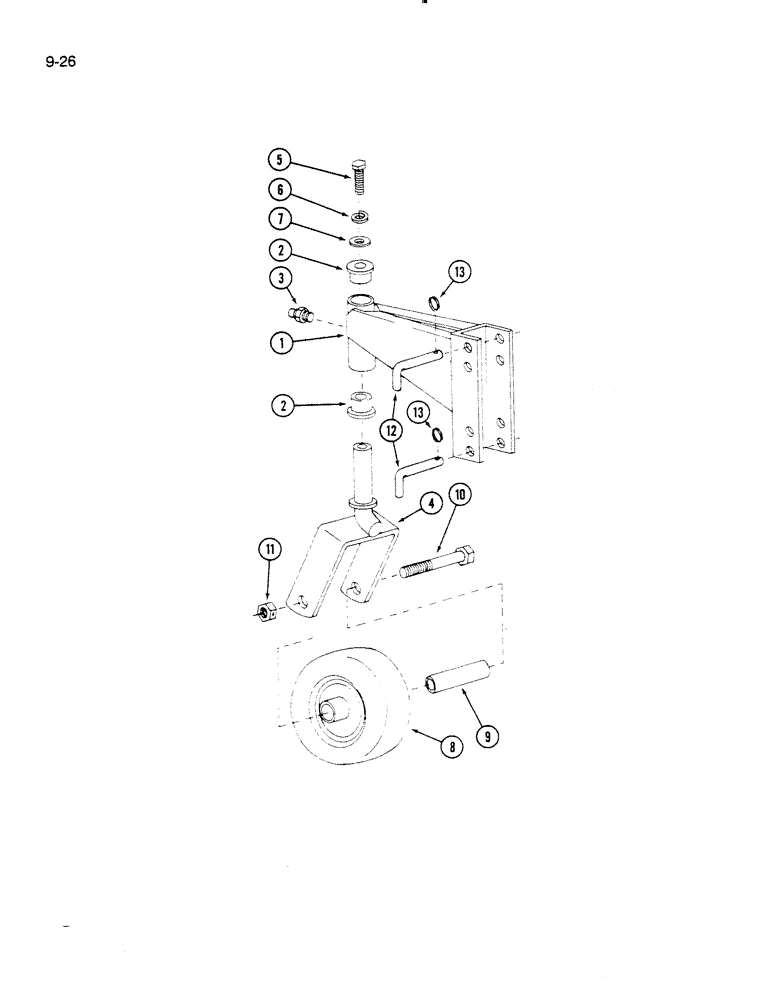

Запчасти Case IH 72RS (9-026) - CASTER WHEELS, 72RS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958183C1

SUPPORT

- wheel

2шт.

2

1958184C1

BUSHING

- wheel fork

4шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight

2шт.

4

1958188C1

BRACKET

FORK - wheel

2шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

2шт.

8

1958190C1

WHEEL

- caster

2шт.

9

1958191C1

SPACER

- wheel

2шт.

10

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

11

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock prevailing torque, 1/2 inch NC

2шт.

12

1958192C1

PIN

- locating

4шт.

13

1958193C1

CLIP

- spring

4шт.
