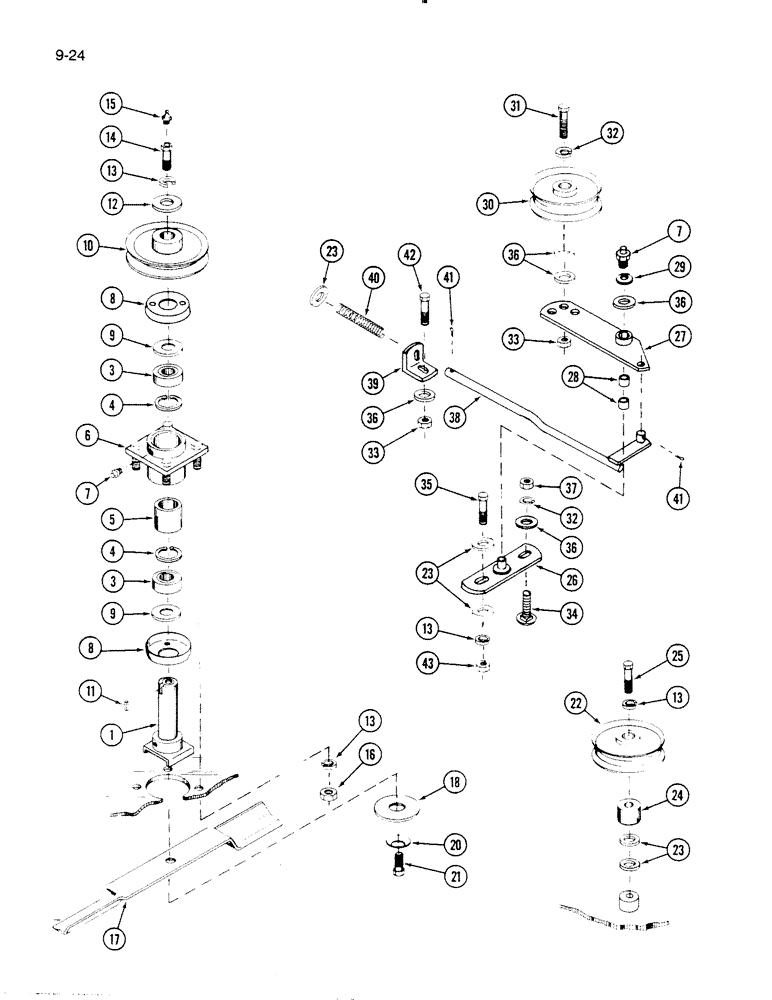

Запчасти Case IH 72RS (9-024) - PULLEYS, BLADES AND SPINDLES, 72RS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1954977C1

SHAFT

- spindle

3шт.

1954974C1

HOUSING ASSY.

SPINDLE ASSEMBLY - mower blade

3шт.

3

295109R91

BALL BEARING

ASSEMBLY - ball

2шт.

4

456736R1

SNAP RING,2.062", Int, #206

RING - retaining, internal 2-9/32 inch OD

2шт.

5

1954975C1

SPACER

- bearing

1шт.

6

1954974C1

HOUSING ASSY.

HOUSING ASSEMBLY - spindle (Order 1954974C1)

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short 1/8 PTF

4шт.

8

1954978C1

CAP

COVER - bearing

6шт.

9

1954979C1

WASHER

- flat

1шт.

10

1958164C1

PULLEY

- spindle

3шт.

11

1954929C1

BUCKET TOOTH KEY

KEY - pulley drive

3шт.

12

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 11/64 inch

3шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

17шт.

14

1958165C1

FITTING,Hex, 1/2" - 20 x 1 1/2"

ASSEMBLY - bolt and grease fitting

3шт.

15

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, drive type 1/4 inch

1шт.

16

129-125

NUT,1/2"-20, G5

12шт.

17

1958167C1

HALF BLADE

BLADE - mower 25" Length

3шт.

18

486801R1

WASHER

- mower blade

3шт.

20

1958169C1

BELLEVILLE WASHER

- serrated

3шт.

21

114-406

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd

3шт.

22

1958170C1

PULLEY

- idler

1шт.

23

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

24

384678R1

SPACER

- idler pulley

1шт.

25

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

26

1958171C1

BRACKET

- idler mounting

1шт.

27

1958172C1

ARM

ASSEMBLY - spring idler

1шт.

28

1958173C1

BUSHING

- pivot

2шт.

29

1958174C1

SPRING WASHER

- spring

1шт.

30

1958488C1

PULLEY

- idler

1шт.

31

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

2шт.

34

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

35

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

36

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

7шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

38

1958178C1

ROD

- idler spring

1шт.

39

1958179C1

BRACKET

ANCHOR - idler rod

1шт.

40

1958487C1

SPRING

- idler

1шт.

41

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

42

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

43

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
