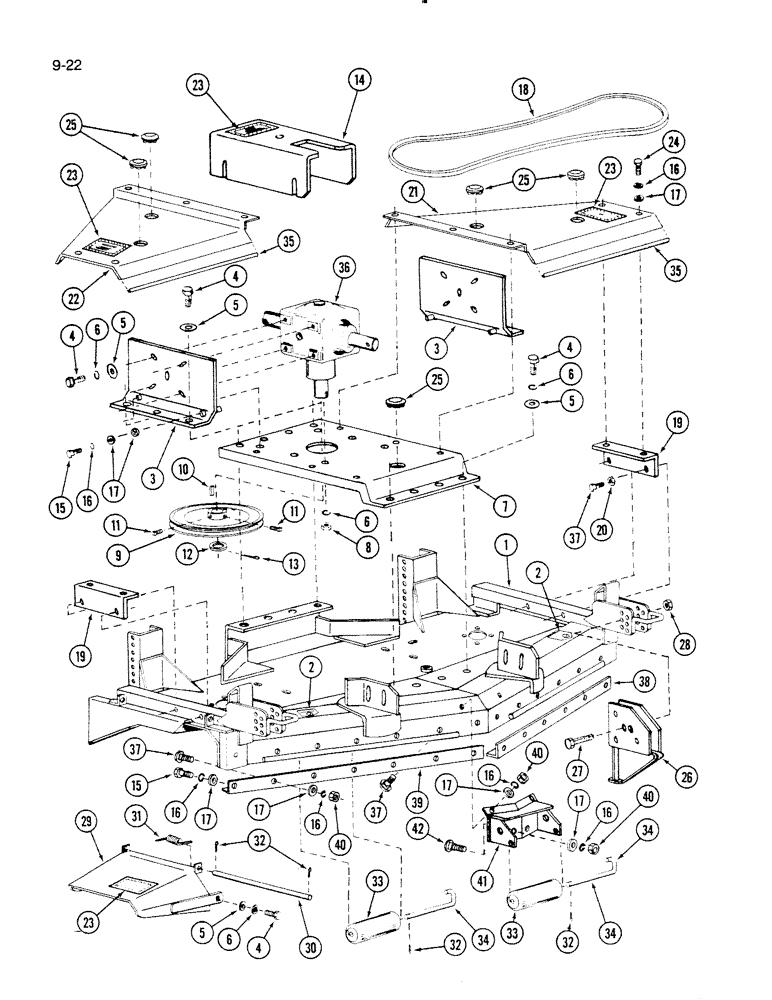

Запчасти Case IH 72RS (9-022) - MOWER DECK, 72RS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1960243C1

FRAME

DECK ASSEMBLY - mower

1шт.

2

REF

INSTRUCTION

DECAL - danger, keep hands and feet away (See page 9-33)

2шт.

3

1954924C1

MOUNTING PARTS

SUPPORT - side, gear box

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

23шт.

5

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch

23шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

23шт.

7

1954925C1

PLATE

- gearbox mounting

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

9

1954926C1

PULLEY

- main drive

1шт.

Ref #9A - 1976256C1 Pulley for units with new gearbox after S/N CDH001651 07/25/96

1шт.

10

1954929C1

BUCKET TOOTH KEY

KEY - square

1шт.

11

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - square head set, 3/8 NC x 3/4 inch

2шт.

12

1954930C1

WASHER

- flat

1шт.

13

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

14

1954931C1

COVER ASSY

COVER - gearbox (Includes Ref. 23)

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

29шт.

17

25544R1

WASHER,13/32" x 13/16" x .134", HDN

- flat, 13/32 x 7/8 x 7/64 inch

29шт.

18

1954933C1

BELT,0.66" W x 158.00" L

V-BELT , Drive 0.66" W x 158.00" L

1шт.

19

1954935C1

BRACKET

- cover support angle

2шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

21

1954937C1

COVER

- drive, left (Includes Ref. 23)

1шт.

22

1954939C1

COVER

ASSEMBLY - drive, right

1шт.

23

REF

INSTRUCTION

DECAL - danger, keep all shields in place (See page 9-33)

1шт.

24

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

10шт.

25

127741

HOLE PLUG BUTTON,2"

BUTTON, HOLE PLUG, 2"

5шт.

26

1954956C1

SHOE

- skid

2шт.

27

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

28

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

29

1954957C1

DEFLECTOR

ASSEMBLY - grass (Includes decal)

1шт.

30

1954958C1

ROD

- deflector mounting

1шт.

31

1954965C1

SPRING

- deflector

1шт.

32

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

33

489470R1

ROLLER

- mower

2шт.

34

1958450C1

PIN

- roller axle

2шт.

35

1954955C1

PROTECTOR

MOULDING - black vinyl trim

2шт.

36

REF

INSTRUCTION

GEARBOX ASSEMBLY - mower drive (See Page 9-21)

1шт.

37

1954970C1

BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

- round head square neck, 5/16 NC x 3/4 inch

16шт.

38

1960271C1

ANGLE

- mower deck, 33 inch

1шт.

40

9635082

NUT,5/16" - 18, Gr 5

14шт.

41

1973067C1

BRACKET

- front roller mount

1шт.

42

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.
