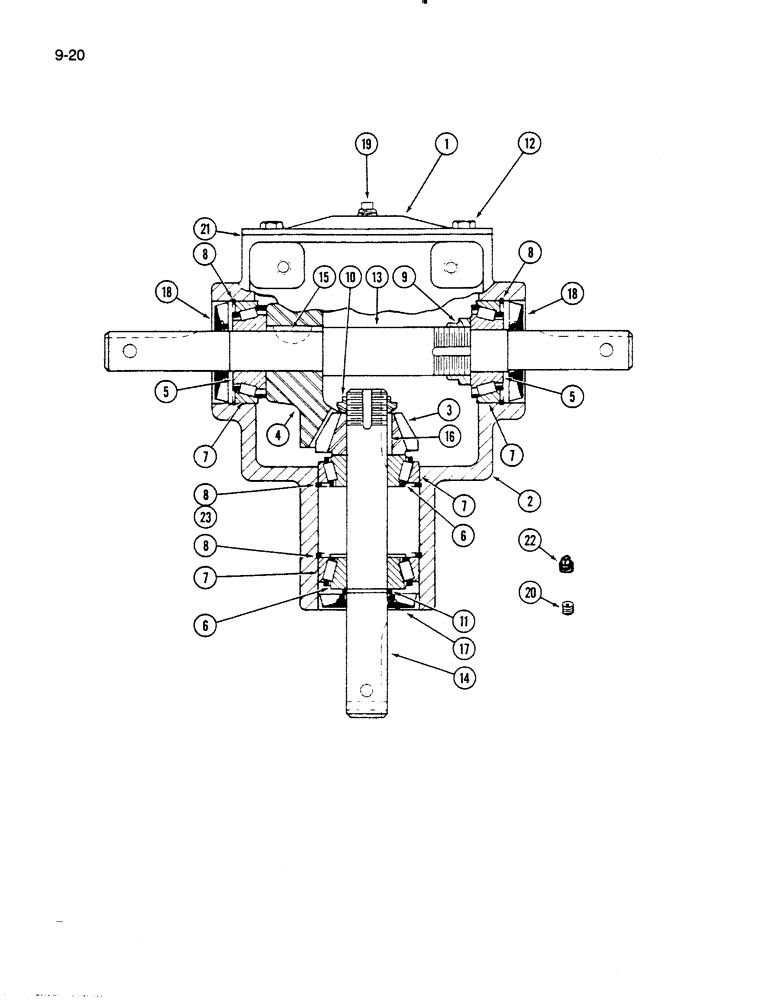

Запчасти Case IH 72RS (9-020) - GEARBOX ASSEMBLY, 72RS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1954923C1

GEARBOX ASSY

GEARBOX ASSEMBLY - mower drive

1шт.

s/n break 1346579C1Gearbox asm Mowers with S/N CDH001650 and below

1шт.

1

204140C1

COVER

- gearbox

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - gearbox (Order 1954923C1)

1шт.

3

204136C1

GEAR

- bevel

1шт.

4

1958297C1

GEAR

- bevel

1шт.

5

1958296C1

ROLLER BEARING

CONE - bearing

2шт.

6

1958295C1

ROLLER BEARING

CONE - bearing

2шт.

7

1958294C1

BEARING

CUP - bearing

4шт.

8

594433R1

RING

- retaining

4шт.

9

594439R1

NUT

- stake

1шт.

10

1958291C1

NUT

- stake

1шт.

11

1958290C1

RING, SNAP

RING - retaining

1шт.

12

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

13

1958289C1

SHAFT

- output

1шт.

14

1958288C1

SHAFT

- input

1шт.

15

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

1шт.

16

1954929C1

BUCKET TOOTH KEY

KEY - square

1шт.

17

204139C91

SEAL

- input shaft

1шт.

18

1958286C1

SEAL

- output shaft

2шт.

19

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - level, square head, 3/8-18 PT

1шт.

20

444699

PLUG,Hex Soc, 3/8"-18

- hex socket head, 3/8-18 PT

1шт.

21

594438R1

GASKET

- cover

1шт.

22

1958284C1

PLUG

- vent

1шт.

23

594441R1

SHIM

- input shaft

1шт.
