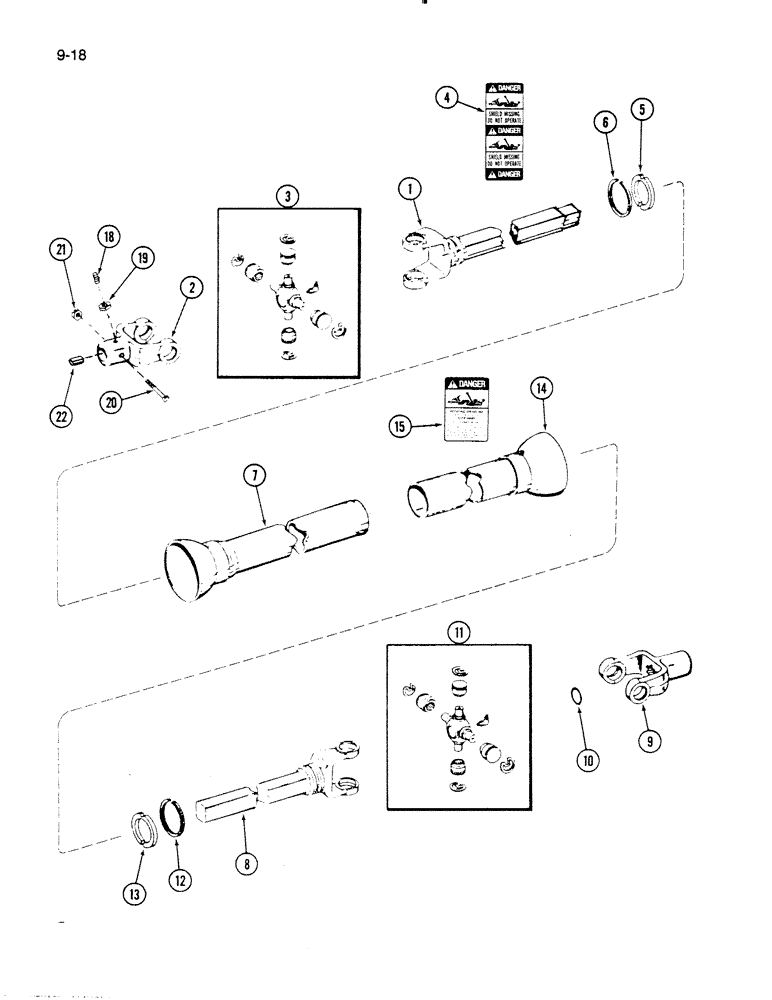

Запчасти Case IH 72RS (9-018) - PTO DRIVE SHAFT, 72RS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958306C1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, female

1шт.

2

1958307C1

YOKE

- PTO

1шт.

3

1958302C1

BEARING

U-JOINT ASSEMBLY - drive shaft

1шт.

4

REF

INSTRUCTION

DECAL - danger, shield missing (See page 9-33)

1шт.

5

1958303C1

BEARING

BUSHING - nylon, shield

1шт.

6

597559R1

RETAINER

RING - retaining, tube

1шт.

7

1958308C1

TUBE

- guard

1шт.

8

1958300C1

JOINT

SHAFT ASSEMBLY - drive male

1шт.

9

1958304C1

YOKE

- PTO

1шт.

10

1958305C1

O-RING

- yoke

1шт.

11

1958302C1

BEARING

U-JOINT ASSEMBLY - drive shaft

1шт.

12

597559R1

RETAINER

RING - retaining, tube

1шт.

13

1958303C1

BEARING

BUSHING - nylon, shield

1шт.

14

1958301C1

TUBE

- guard

1шт.

15

REF

INSTRUCTION

DECAL - danger, rotating drive line (See page 9-33)

1шт.

18

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - square head set, 3/8 NC x 3/4 inch

1шт.

19

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

20

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

21

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

22

1954928C1

KEY

- square, 1/4 x 1-1/2 inch long

1шт.
