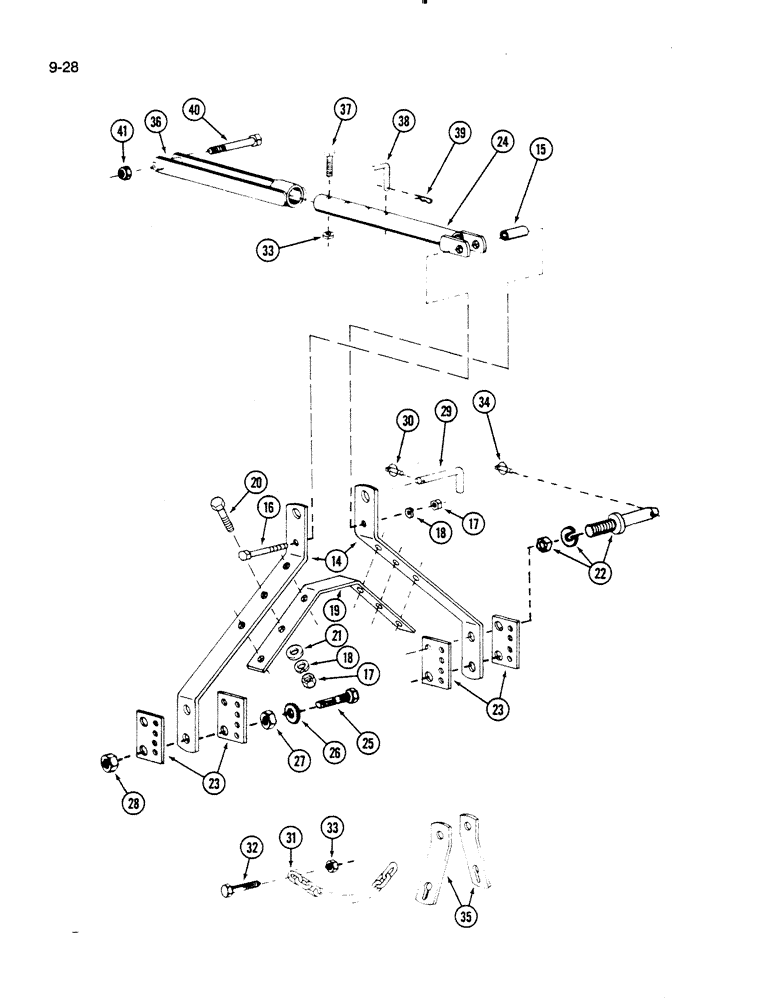

Запчасти Case IH 72RS (9-028) - HITCH, 72RS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

14

1958194C1

ARM

- mast, side

2шт.

15

208665C1

SPACER

- top link

1шт.

16

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

7шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

19

1958198C1

BRACKET

- mast support

1шт.

20

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

21

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

6шт.

22

1958199C1

PIN

- hitch

2шт.

23

1958220C1

PLATE

- chain anchor

4шт.

24

1958221C1

ARM

LINK - sliding, top

1шт.

25

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

26

1958227C1

WASHER

- flat

2шт.

27

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

2шт.

28

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

29

1958226C1

PIN

- hitch

1шт.

30

A30338

PIN

- klik

1шт.

31

468032R1

CHAIN (AG)

CHAIN - anchor

2шт.

32

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

33

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock prevailing torque, 3/8 inch NC

2шт.

34

3057346R11

LINCH PIN

PIN - klik

2шт.

35

1958228C1

ANCHOR

- chain

2шт.

36

1958229C1

TUBE

LINK - tube and adjusting

1шт.

37

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

38

1958230C1

PIN

- locating

1шт.

39

NSS

NOT SOLD SEPARAT

PIN - hair (See Note)

1шт.

40

113-2419

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

1шт.

41

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock prevailing torque, 1/2 inch NC

1шт.
