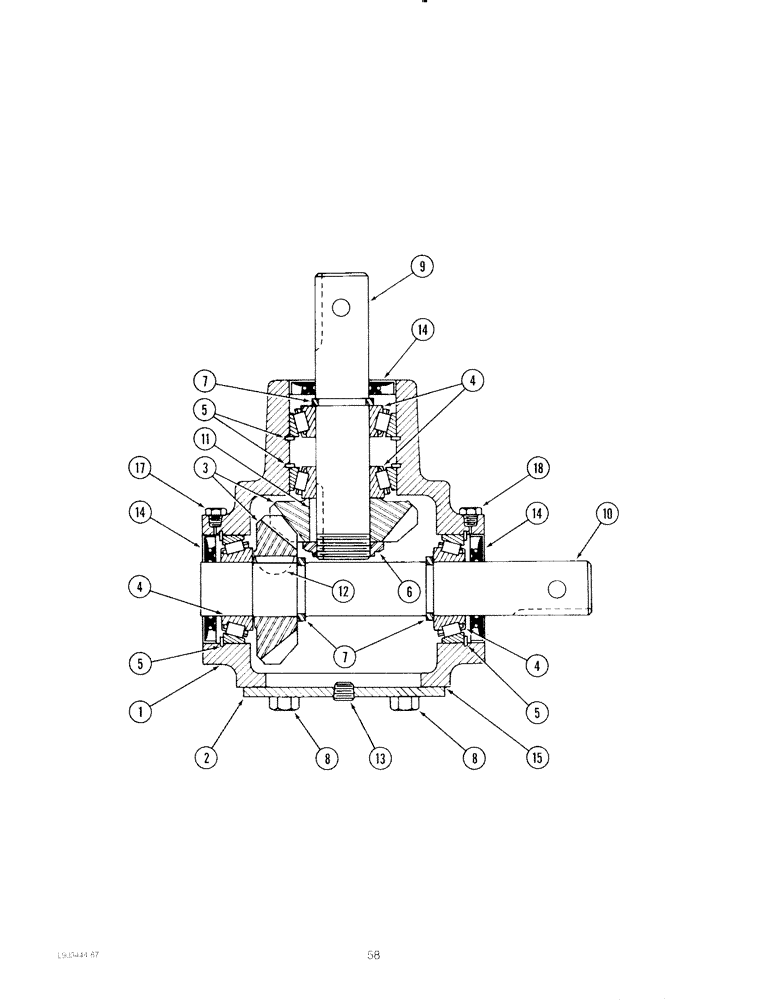

Запчасти Case IH 72MS (58) - DRIVE GEARBOX ASSEMBLY, 275 TRACTOR

1346656C1

CASE

GEARBOX ASSEMBLY

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gearbox

1шт.

2

1973042C1

COVER

- housing

1шт.

3

1973043C1

GEAR

- bevel

2шт.

4

1973044C1

BEARING ASSY

BEARING ASSEMBLY - cup and cone

4шт.

5

1973045C1

RING

- snap, retaining

4шт.

6

1973046C1

NUT

- stake, hex

1шт.

7

1958290C1

RING, SNAP

RING - snap, retaining

3шт.

8

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

9

1346672C1

SHAFT

- input

1шт.

10

1346673C1

SHAFT

- output

1шт.

11

1973049C1

BUCKET TOOTH KEY

KEY - square, gear

1шт.

12

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

13

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket pipe, 1/8 inch PT

1шт.

14

1973050C1

SEAL

- oil

3шт.

15

1973051C1

GASKET

- cover

1шт.

1973052C1

SHIM

- bearing

1шт.

17

1976597C1

PLUG

- vent

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket pipe, 1/8 inch PT

1шт.
