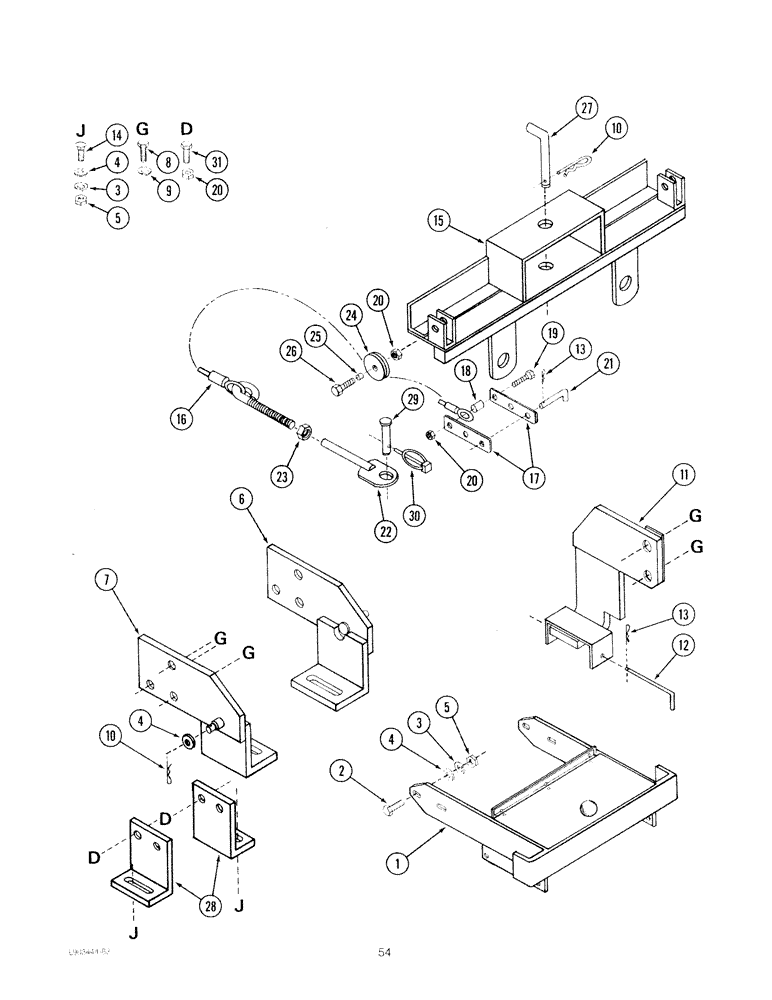

Запчасти Case IH 72MS (54) - LIFT AND MOUNTING BRACKETS, 275 TRACTOR

1

1976514C1

FUNNEL

FRAME - front

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

4

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

6

1346662C1

ANCHOR

BRACKET - lift, left

1шт.

7

1346663C1

ANCHOR

BRACKET - lift, right

1шт.

8

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

8шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

8шт.

10

79005C1

PIN

- cotter, hair, 5/32 inch diameter

3шт.

11

1346664C1

STOP

BRACKET - transport

1шт.

12

1958192C1

PIN

- locating

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - cotter, hair, 3/32 inch (See Note)

3шт.

14

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

15

1346665C1

BRACKET

- lift, rear

1шт.

16

1346615C1

CABLE,27", W/ Eyebolt

CABLE ASSEMBLY

2шт.

17

1346616C1

STRAP

- cable mounting

4шт.

18

1346617C1

BUSHING

2шт.

19

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

20

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

8шт.

21

1958230C1

PIN

- locating

2шт.

22

1346618C1

HYDRAULIC LIFT

LINK - lift

2шт.

23

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

24

1346619C1

PULLEY

2шт.

25

1346620C1

PLUG

BUSHING

2шт.

26

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

27

1958226C1

PIN

- locating

1шт.

28

1346666C1

BRACKET

ANGLE - extension

2шт.

29

1346621C1

CLEVIS

PIN - clevis

2шт.

30

3057346R11

LINCH PIN

PIN ASSEMBLY - lock

2шт.

31

413620

BOLT - hex, 3/8 NC x 1-1/4 inch

4шт.
