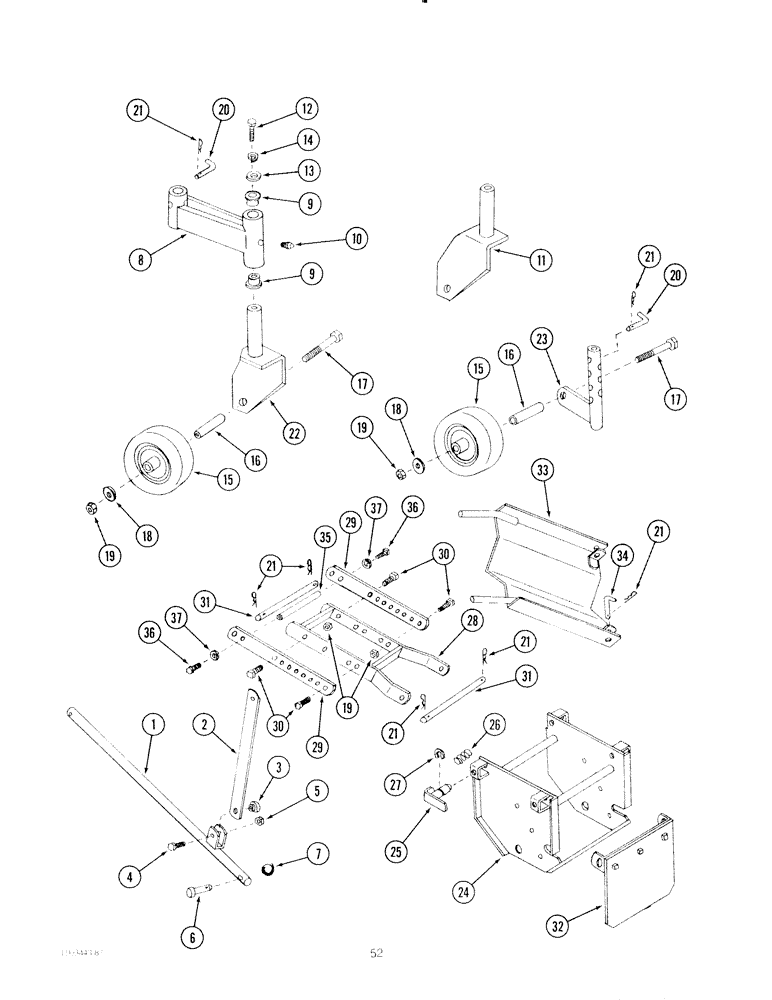

Запчасти Case IH 72MS (52) - MOUNTING BRACKETS AND WHEELS, 275 TRACTOR
№
Артикул
Название
Примечание
Количество
1
1346609C1
ROD
- lift
2шт.
2
1973069C1
LINK
STRAP - lift
2шт.
3
1958413C1
TRUNNION
SPACER
2шт.
4
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
2шт.
5
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex lock, 3/8 inch NC
2шт.
6
23066R1
CLEVIS PIN,3/8" x 1 7/16"
PIN - clevis
2шт.
7
1958193C1
CLIP
- spring
2шт.
8
1346638C1
TUBE
MOUNT - front caster
2шт.
9
1958184C1
BUSHING
- pivot, support
4шт.
10
219-10
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - grease, straight, 1/4-28 taper x 11/16 inch long
2шт.
11
1346639C1
BRACKET
CASTER - left
1шт.
12
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
13
495-81142
WASHER,0.41" ID x 1.5" OD x 0.06" Thk
- flat, 13/32 x 1-1/2 x 1/16 inch
2шт.
14
492-11038
LOCK WASHER,3/8"
2шт.
15
1973206C1
RIM
WHEEL - caster, main
4шт.
16
663393R1
SPACER
BUSHING - wheel
4шт.
17
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
- hex, 1/2 NC x 4-1/2 inch
4шт.
18
3068739R1
WASHER
- flat, 17/32 x 1-1/2 x 3/16 inch
4шт.
19
131-1182
LOCK NUT,1/2"-13, GA
NUT - hex top lock, 1/2 inch NC
8шт.
20
1958230C1
PIN
- locating
4шт.
21
NSS
NOT SOLD SEPARAT
PIN - cotter, hair, 3/32 inch (See Note)
10шт.
22
1346640C1
BRACKET
CASTER - right
1шт.
23
1346641C1
WHEEL
PIVOT - gauge wheel, right
1шт.
23
1346659C1
SHAFT ASSY.
PIVOT - gauge wheel, left
1шт.
24
1958469C1
FUNNEL
FRAME - mounting, front
1шт.
25
1958440C1
PIN
- quick release
4шт.
26
1958442C1
SPRING
- lock pin
4шт.
27
373523R1
SNAP RING,#62, .480" Dia, E-Type
Ring, Retaining, #62, .480" Dia, E-Type
4шт.
28
1346642C1
BRACKET
- front pivot
1шт.
29
1346660C1
STRAP
- pivot extension
2шт.
30
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
4шт.
31
1346644C1
PIN
- anchor
2шт.
32
1346645C1
COVER
- front
1шт.
33
1346646C1
SUPPORT
PAN - rear locating
1шт.
34
1346613C1
PIN
- locating
2шт.
35
1346661C1
ROD
- tie
2шт.
36
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
2шт.
37
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
Выбрано товаров: 38
