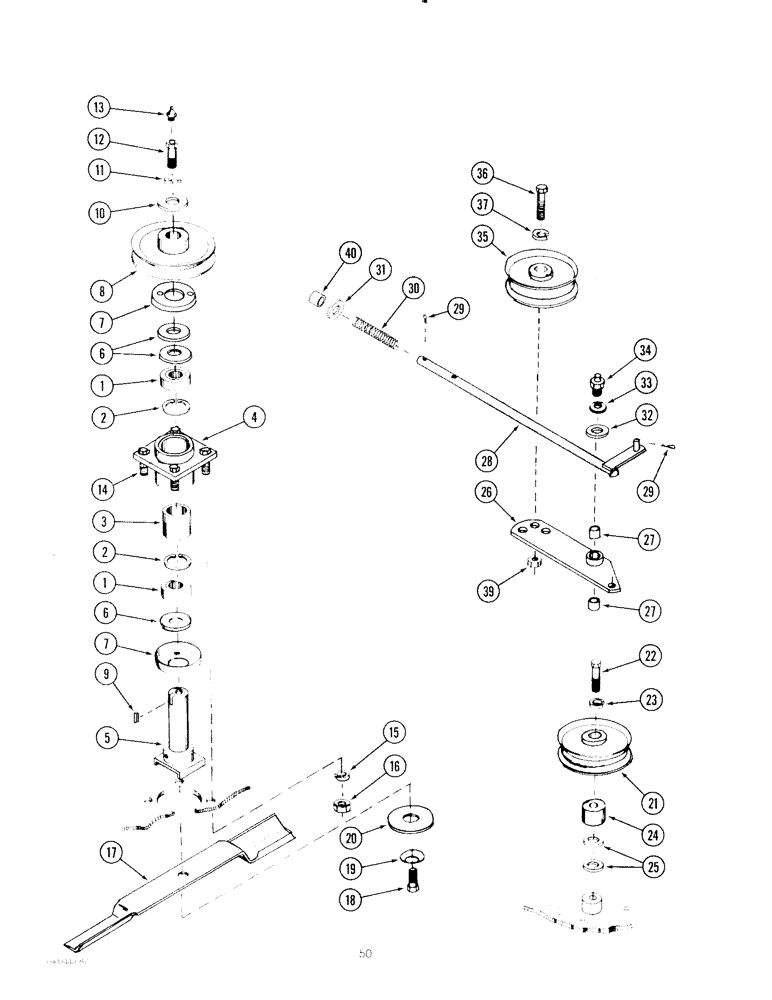

Запчасти Case IH 72MS (50) - PULLEYS, BLADES AND SPINDLES, 275 TRACTOR

1954974C1

HOUSING ASSY.

HOUSING ASSEMBLY - bearing, spindle

3шт.

1

295109R91

BALL BEARING

ASSEMBLY - ball

2шт.

2

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

2шт.

3

1954975C1

SPACER

- bearing

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order 1954974C1)

1шт.

5

1954977C1

SHAFT

SPINDLE - shaft

3шт.

6

1954979C1

WASHER

- spacer, bearing

9шт.

7

1954978C1

CAP

COVER - bearing

6шт.

8

1958164C1

PULLEY

- spindle

3шт.

9

1954929C1

BUCKET TOOTH KEY

KEY - square, shaft

3шт.

10

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

3шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

12

1958165C1

FITTING,Hex, 1/2" - 20 x 1 1/2"

BOLT ASSEMBLY - with grease fitting

3шт.

13

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

1шт.

14

74770C1

BOLT,1/2" - 20 x 1 1/4", Grade 5

- housing

12шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

16

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NC

12шт.

17

1958167C1

HALF BLADE

BLADE - mower 25" Length

3шт.

18

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

3шт.

19

1958169C1

BELLEVILLE WASHER

- serrated, lock, special

3шт.

20

486801R1

WASHER

- flat, blade

3шт.

21

1958170C1

PULLEY

- idler

1шт.

22

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

24

384678R1

SPACER

- pulley

1шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

26

1346591C1

ARM

ASSEMBLY - idler

1шт.

27

1958173C1

BUSHING

- pivot, arm

2шт.

28

1346655C1

TAPPET

ROD - spring idler

1шт.

29

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

30

1958487C1

SPRING

- rod, idler

1шт.

31

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

32

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

33

1958174C1

SPRING WASHER

- spring

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

35

1958488C1

PULLEY

- idler

1шт.

36

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

39

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

40

384678R1

SPACER

1шт.
