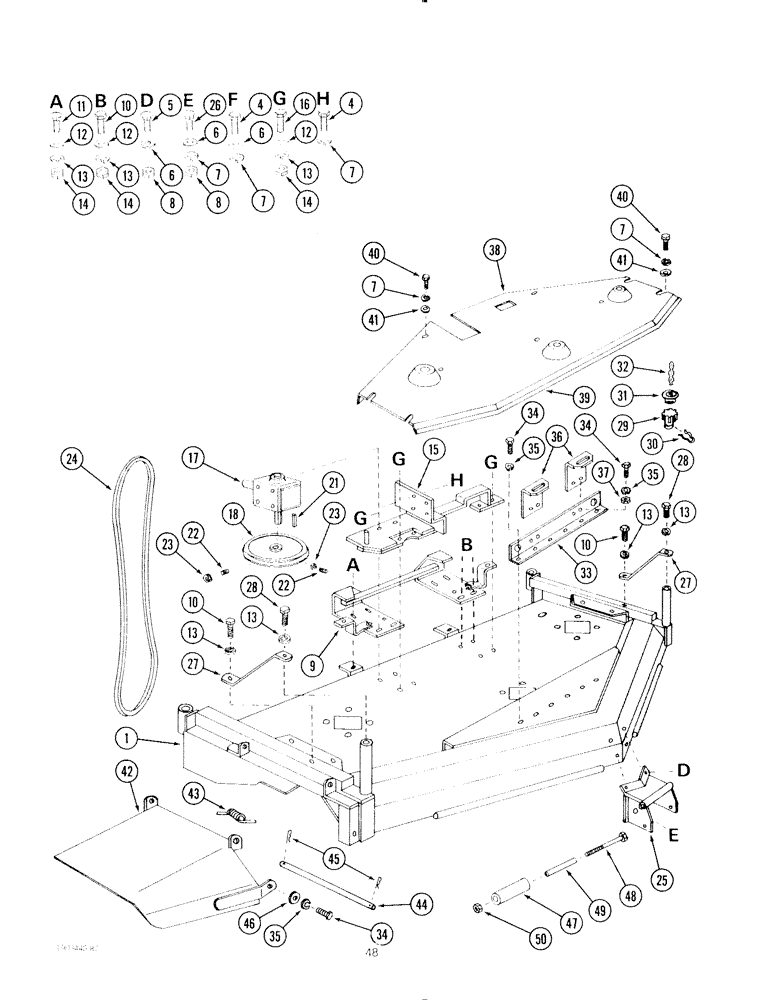

Запчасти Case IH 72MS (48) - MOWER DECK, 275 TRACTOR

1

1346651C1

LARGE PLATE

HOUSING - mower

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

5

1954970C1

BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

- round head square neck, 5/16 NC x 3/4 inch

2шт.

6

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

6шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

9

1346652C1

BRACKET

ASSEMBLY - rear mounting

1шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

11

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

18шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

15

1346653C1

BRACKET

- gearbox and idler

1шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

17

REF

INSTRUCTION

GEARBOX ASSEMBLY - (See Page 59)

1шт.

18

1346657C1

PULLEY

- drive

1шт.

21

1954929C1

BUCKET TOOTH KEY

KEY - square, shaft

1шт.

22

83-13810

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - hex socket, 3/8 NC x 5/8 inch

2шт.

23

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

2шт.

24

1346658C1

BELT

- drive

1шт.

25

1346628C1

BRACKET

- front roller mounting

1шт.

26

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

27

1346629C1

SUPPORT

STRAP - wheel support

2шт.

28

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

29

1958444C1

COUPLING

COUPLER - hose, wash

1шт.

30

1960263C1

PIN

- cotter, hair

1шт.

31

1958445C1

CAP

- coupler

1шт.

32

1958446C1

CHAIN (AG)

CHAIN - hose

1шт.

33

1346633C1

ANGLE

- front mounting

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

11шт.

35

492-11038

LOCK WASHER,3/8"

11шт.

36

1346634C1

STOP

BRACKET - transport

2шт.

37

425-106

NUT,3/8"-16, Cl 5

4шт.

38

1346635C1

COVER

- drive belt

1шт.

39

1346632C1

ORNAMENTAL STRIP

TRIM - black vinyl

1шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

41

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

6шт.

42

1954957C1

DEFLECTOR

ASSEMBLY - grass

1шт.

43

1954965C1

SPRING

- tension, deflector

1шт.

44

1954958C1

ROD

- mounting, deflector

1шт.

45

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

46

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

47

1978614C1

ROLLER

- deck

1шт.

48

1978615C1

BOLT,Hex, 1/2" - 13 x 7 1/2"

ASSEMBLY - pivot, roller

1шт.

49

1978616C1

SPACER

- roller

1шт.

50

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex top lock, 1/2 inch NC

1шт.
