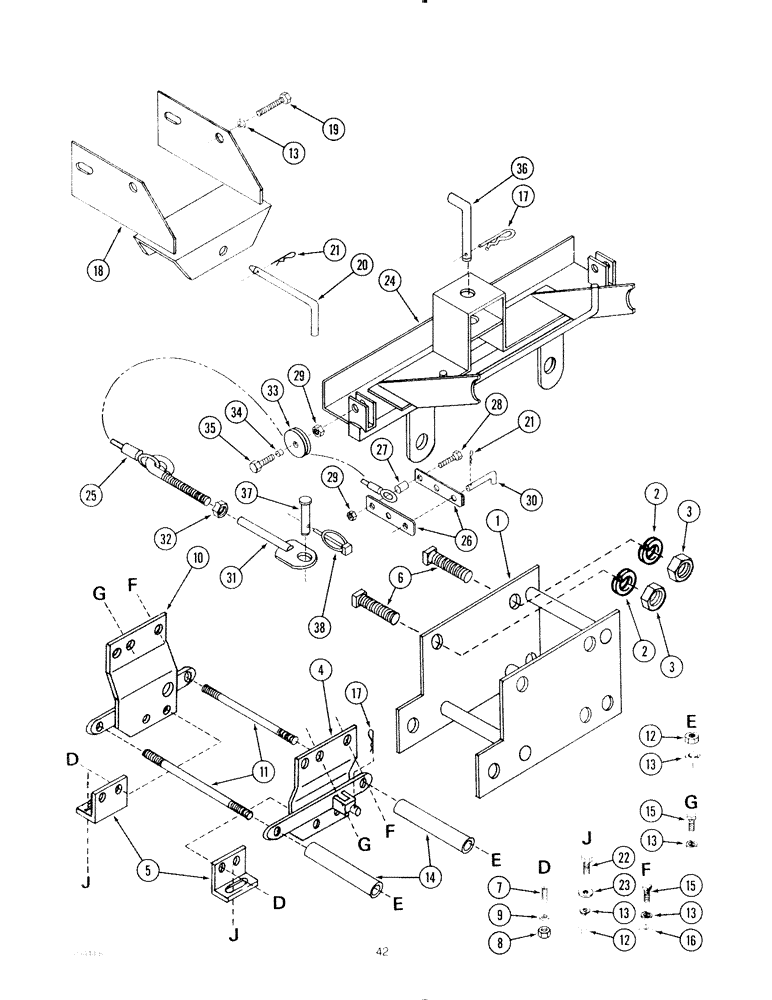

Запчасти Case IH 72MS (42) - LIFT AND MOUNTING BRACKETS, 245 AND 255 TRACTORS

1

1958467C1

ANCHOR

- mounting, front

1шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

425-1010

NUT,5/8"-11, G5

4шт.

4

1958456C1

ANCHOR

- mower lift and stop, left

1шт.

5

1346647C1

BRACKET

- up stop

2шт.

6

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

1958458C1

ANCHOR

- mower lift and stop, right

1шт.

11

1958459C1

ROD

- lift support

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

14

1958460C1

SUPPORT TUBE

TUBE - lift support

2шт.

15

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- hex special, 12 mm - 1.25 x 35 mm

4шт.

16

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch

2шт.

17

79005C1

PIN

- cotter, hair, 5/32 inch diameter

3шт.

18

1346648C1

STOP

BRACKET ASSEMBLY - rear up stop

1шт.

19

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

20

1958192C1

PIN

- locating

1шт.

21

NSS

NOT SOLD SEPARAT

PIN - cotter, hair, 3/32 inch (See Note)

3шт.

22

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/2 inch

2шт.

23

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch

2шт.

24

1346614C1

BRACKET

- rear lift

1шт.

25

1346615C1

CABLE,27", W/ Eyebolt

CABLE ASSEMBLY

2шт.

26

1346616C1

STRAP

- cable mounting

4шт.

27

1346617C1

BUSHING

2шт.

28

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

29

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

30

1958230C1

PIN

- locating

2шт.

31

1346618C1

HYDRAULIC LIFT

LINK - lift

2шт.

32

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

33

1346619C1

PULLEY

2шт.

34

1346620C1

PLUG

BUSHING

2шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

36

1958226C1

PIN

- locating

1шт.

37

1346621C1

CLEVIS

PIN - clevis

2шт.

38

3057346R11

LINCH PIN

PIN ASSEMBLY - lock

2шт.
