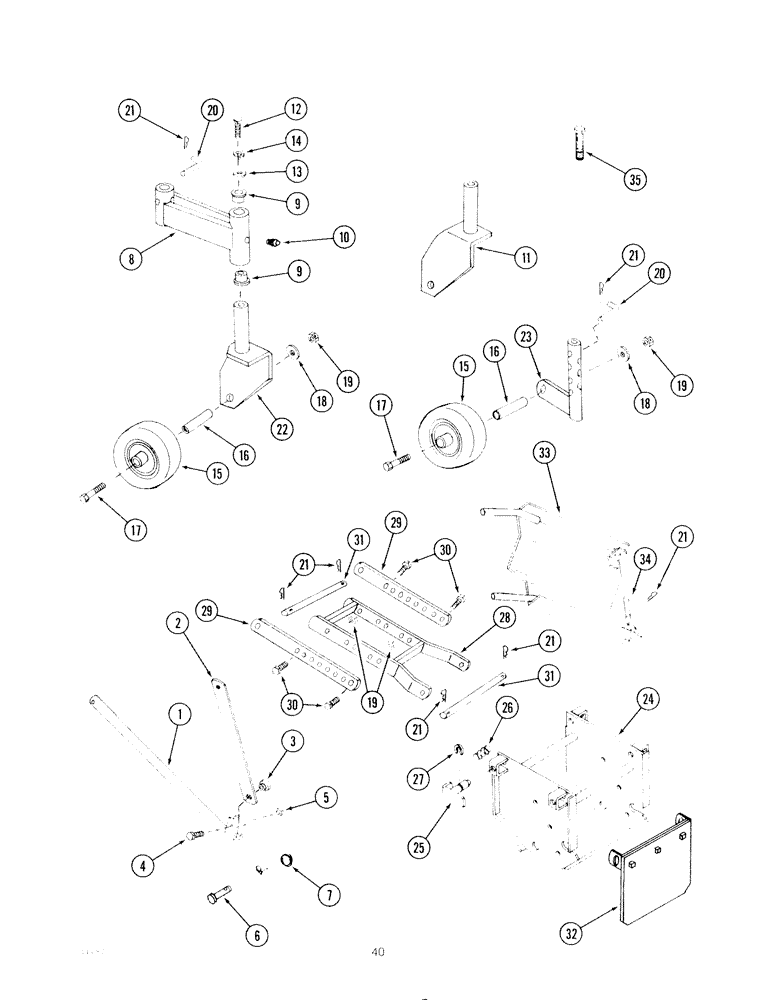

Запчасти Case IH 72MS (40) - MOUNTING BRACKETS AND WHEELS, 245 AND 255 TRACTORS

1

1346609C1

ROD

- lift

2шт.

2

1346636C1

STRAP

- lift

2шт.

3

1346637C1

SPACER

2шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

2шт.

6

23066R1

CLEVIS PIN,3/8" x 1 7/16"

PIN - clevis

2шт.

7

1958193C1

CLIP

- spring

2шт.

8

1346638C1

TUBE

MOUNT - front caster

2шт.

9

1958184C1

BUSHING

- pivot, support

4шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long

2шт.

11

1346639C1

BRACKET

CASTER - left

1шт.

12

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

1973206C1

RIM

WHEEL - caster, main

4шт.

16

663393R1

SPACER

BUSHING - wheel

4шт.

17

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

4шт.

18

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, 17/32 x 1-1/2 x 3/16 inch

4шт.

19

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex top lock, 1/2 inch NC

8шт.

20

1958230C1

PIN

- locating

4шт.

21

NSS

NOT SOLD SEPARAT

PIN - cotter, hair, 3/32 inch (See Note)

10шт.

22

1346640C1

BRACKET

CASTER - right

1шт.

23

1346641C1

WHEEL

PIVOT - gauge wheel

2шт.

24

1958469C1

FUNNEL

FRAME - mounting, front

1шт.

25

1958440C1

PIN

- quick release

4шт.

26

1958442C1

SPRING

- lock pin

4шт.

27

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

28

1346642C1

BRACKET

- front pivot

1шт.

29

1346643C1

STRAP

- pivot extension

2шт.

30

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

31

1346644C1

PIN

- anchor

2шт.

32

1346645C1

COVER

- front

1шт.

33

1346646C1

SUPPORT

PAN - rear locating

1шт.

34

1346613C1

PIN

- locating

2шт.

35

1954987C1

BOLT,Hex, M10 x 1.25 x 50mm

- hex, 10mm - 1.25 x 50mm

2шт.
