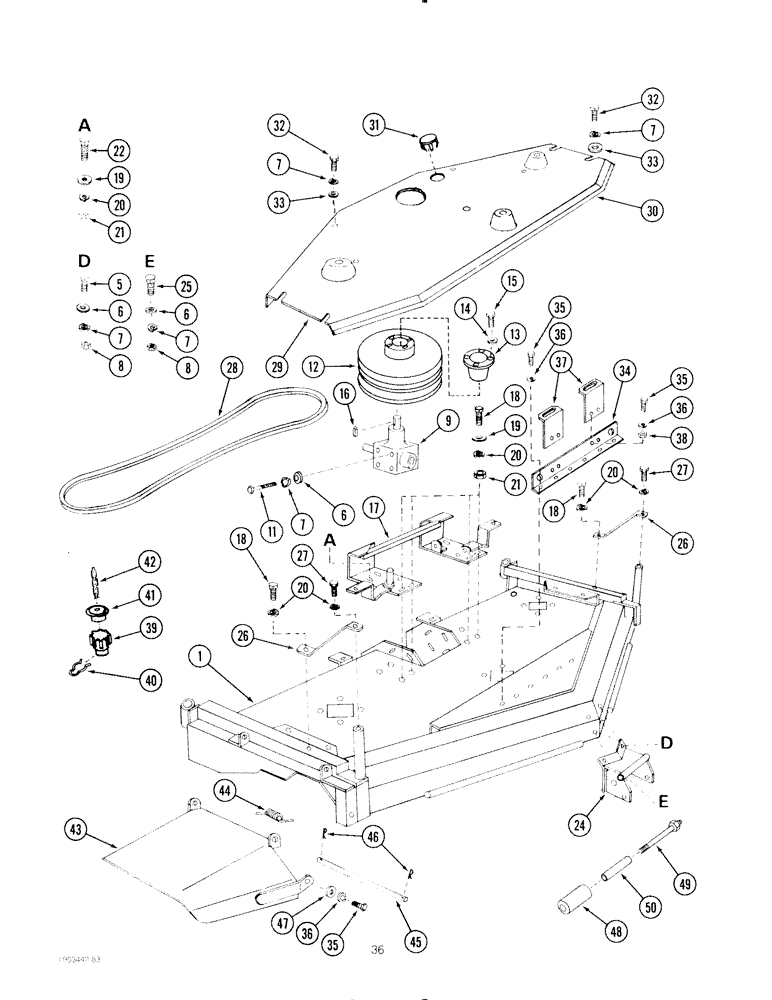

Запчасти Case IH 72MS (36) - MOWER DECK, 245 AND 255 TRACTORS

1

1346624C1

SUPPORT

HOUSING - mower

1шт.

5

1954970C1

BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

- round head square neck, 5/16 NC x 3/4 inch

2шт.

6

495-21038

WASHER,5/16"

(3/8 x 7/8 x 5/64") 5/16"

12шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

9

REF

INSTRUCTION

GEARBOX ASSEMBLY - (See Page 47)

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

12

1346605C1

PULLEY

- drive

1шт.

13

1346606C1

HUB

- pulley

1шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

1954929C1

BUCKET TOOTH KEY

KEY - square, shaft

1шт.

17

1346627C1

BRACKET

- rear mounting

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

6шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

22

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

24

1346628C1

BRACKET

- front roller mounting

1шт.

25

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

26

1346629C1

SUPPORT

STRAP - wheel support

2шт.

27

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

28

1346630C1

V-BELT,0.66" W x 141.05" L

BELT, , Drive Mower 0.66" W x 141.05" L

1шт.

29

1346631C1

COVER

- drive belt

1шт.

30

1346632C1

ORNAMENTAL STRIP

TRIM - black vinyl

1шт.

31

1978645C1

PLUG

- button

1шт.

32

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

33

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

6шт.

34

1346633C1

ANGLE

- front mounting

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

11шт.

36

492-11038

LOCK WASHER,3/8"

11шт.

37

1346634C1

STOP

BRACKET - transport

2шт.

38

425-106

NUT,3/8"-16, Cl 5

4шт.

39

1958444C1

COUPLING

COUPLER - hose, wash

1шт.

40

1960263C1

PIN

- cotter, hair

1шт.

41

1958445C1

CAP

- coupler

1шт.

42

1958446C1

CHAIN (AG)

CHAIN - hose

1шт.

43

1954957C1

DEFLECTOR

- grass

1шт.

44

1954965C1

SPRING

- tension, deflector

1шт.

45

1954958C1

ROD

- mounting, deflector

1шт.

46

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

47

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

48

1978614C1

ROLLER

- deck

1шт.

49

1978615C1

BOLT,Hex, 1/2" - 13 x 7 1/2"

ASSEMBLY - pivot, roller

1шт.

50

1978616C1

SPACER

- roller

1шт.

15

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
